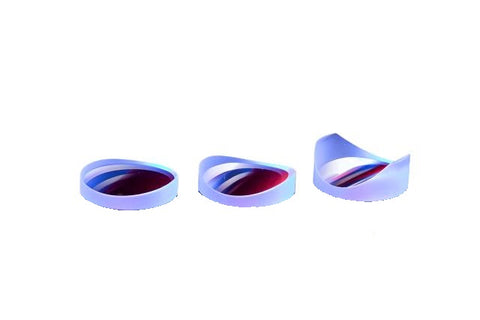

MSE PRO Circular BK7 Cylindrical Plano-Concave Lenses with 1/4 Wave MgF<sub>2</sub> Coating@550nm, Ø1"

MSE PRO Circular BK7 Cylindrical Plano-Concave Lenses with 1/4 Wave MgF2 Coating@550nm, Ø1"

SKU: ACB7CYCC5-1--25

  • $ 9995

MSE PRO™ Circular BK7 Cylindrical Plano-Concave Lenses with 1/4 Wave MgF2 Coating@550nm, Ø1"

MSE supplies offers Ø1" Circular BK7 Cylindrical Plano-Concave Lenses with 1/4 Wave MgF2 Coating@550nm. Similar to a Plano-Concave lens in profile, but only as cylinder instead of a sphere. This cylindrical lens can diverge the light beam only in one as a cylinder dimension. It can be used with cylindrical plano-convex lens together in beam expander applications.

MSE Supplies can offer a variety of optical elements, with different focal length and coating options. Please contact us for customization or bulk orders.

Technical Data:

Material BK7, fine annealed
Dimension Tolerance +0.0/-0.2
Center Thickness (Tc) ±0.2
Surface Quality 60-40 scratch-dig
Clear Aperture 90% surface area
Centration 3'
Coatings 1/4 wave MgF2 coating at 550nm for 0˚ angle of incidence
