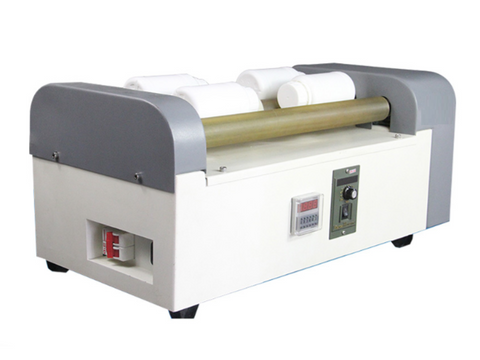

MSE PRO Compact 4-Jar Roller Jar Mill, 250mL/500mL Jar Size
SKU: MA1131
MSE PRO™ Compact 4-Jar Roller Jar Mill, 250mL/500mL Jar Size
MSE Supplies offers a Compact Roller Jar Mill of holding 1–4 jars (250mL or 500mL), suitable for laboratory plastic bottles or PTFE bottles. It is widely used for grinding and mixing materials such as electronic materials, ceramics, coatings, glass powders, fluorescent materials, non-metallic minerals, explosives, medicine, magnetic materials, battery materials, biological cultivation, and food packaging.
- Features variable frequency speed control with programmable settings for stepless speed regulation.
- The roller spacing is adjustable using a handwheel to prevent the jar from shifting or moving.
- The rollers are covered with a wear-resistant polyurethane sleeve, which increases the friction coefficient and prevents slippage or deformation of the jar.
- Equipped with universal wheels for easy mobility and leveling feet to ensure stable and balanced operation.
- Features dual active shaft transmission, allowing Light-weight jars to be used directly.
- Compatible with commonly used PTFE bottles in laboratories.
- Suitable for jar sizes Φ60×125mm and Φ67×190mm.
Technical Specification
SKU | MA1131 |
Number of Ball Mill Jars | 4 |
Jar Size | 250mL/500mL (Jar not included) |
Roller Length | Φ38 x 422mm |
Maximum Roller Speed | 1000 RPM |
Center Distance | 85mm |
Power Supply | 110V/60Hz |
Loading Capacity | 2/3 of the Mill Jar Volume |
Weight | 50kg |
Dimension | 690*410*490mm |
Transmission mode | Belt |
Our wide range of premium quality milling jars and milling media balls have excellent wear resistance and milling efficiency for powder milling, for customization please contact us.
