MSE PRO Hand-held Disc Punching Tool For Coin Cell Electrode and Separator Preparation
SKU: BR0203
SPECIFICATIONS

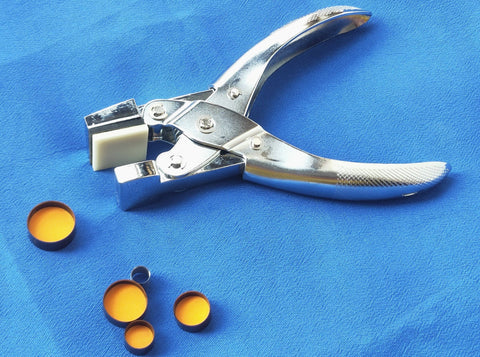

This hand-held disc punching tool is designed for coin cell electrode and separator preparation. It includes five dies, ID 8, 12, 15, 18 and 20 mm. It is an excellent and cost-effective tool for cutting round electrode disc up to 0.3 mm thickness. It can be used to cut separators and electrode material-coated Al and Cu foils.
| SKU # | BR0203 |
| Cutting thickness | 0.3 mm Max. for soft metallic foil |
| Cutting Accuracy | ±0.01 mm |

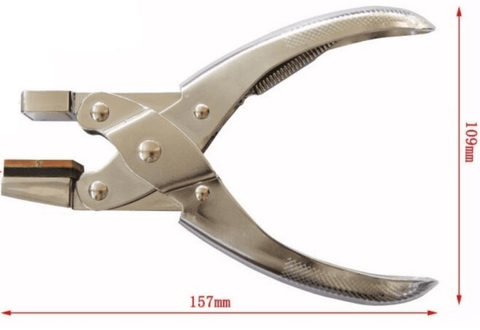

| Dimensions | 157 x 109 mm |
|
Weight |
0.5 kg |
| Typical application |
For 2032 coin cell, ID 15 mm die can be used for electrode disk punching ID 18 and 20 mm dies can be used for separator preparation |
| Note |
Clean the tool after each use This tool is designated for small load disk cut use. For large disc cut load, please use Precision Disc Cutter |
