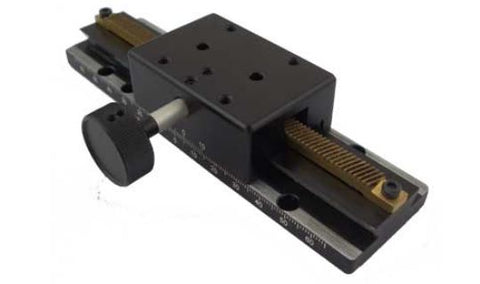

MSE PRO Hard Aluminum Alloy Translation Stages (Travel 120mm, 40x150mm)
SKU: OPHS0116
MSE PRO™ Hard Aluminum Alloy Translation Stages (Travel 120mm, 40x150mm)
MSE PRO™ provides Hard Aluminum Alloy Translation Stages (Travel 120mm, 40x150mm). Manual Translation Stages are precision-engineered platforms designed for accurate and smooth linear positioning in a variety of applications. These stages feature high-quality construction and finely calibrated adjustment mechanisms, allowing for precise control and repeatable positioning. Ideal for laboratory setups, optical alignment, and testing environments, manual translation stages offer exceptional stability and ease of use. With various travel ranges, load capacities, and mounting options, they provide versatile solutions for tasks requiring reliable manual motion control in research and industrial settings.
Key Features
- It adopts screw drive and dovetail guide rail, which makes it less likely to have position deviation after adjustment.
- Suitable for low working frequency and fine adjustment operations.
- Small size, suitable for being built into other devices.
Table size |
40mmx150mm |
Drive mode |
Rack and Pinion |
Drive position |
Central drive |
journey |
120mm |
Minimum scale |
10μ |
Accuracy |
5μ |
Minimum adjustment |
2μ |
Guide rail type |
Dovetail guide rail |
Loading |
4kg |
Straightness |
20μ |
Swing |
80″ |
Pitch |
60″ |
Table parallelism |
30μ |
Movement parallelism |
30μ |
Deadweight |
0.34kg |
Material |
Hard aluminum alloy |
Surface treatment |
Anodized black |
