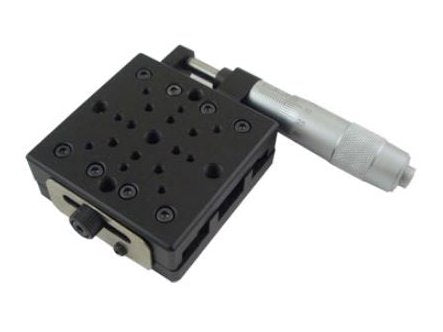

MSE PRO Hard Aluminum Translation Stages (Travel 50mm, 90x90mm)

MSE PRO Hard Aluminum Translation Stages (Travel 50mm, 90x90mm)

SKU: OPHS0067

  • $ 33995



MSE PRO™ Hard Aluminum Translation Stages (Travel 50mm, 90x90mm)

MSE PRO™ provides Hard Aluminum Translation Stages (Travel 50mm, 90x90mm). Manual Translation Stages are precision-engineered platforms designed for accurate and smooth linear positioning in a variety of applications. These stages feature high-quality construction and finely calibrated adjustment mechanisms, allowing for precise control and repeatable positioning. Ideal for laboratory setups, optical alignment, and testing environments, manual translation stages offer exceptional stability and ease of use. With various travel ranges, load capacities, and mounting options, they provide versatile solutions for tasks requiring reliable manual motion control in research and industrial settings.

Key Features

  • The guide rail is a cross roller guide rail with a large load capacity.
  • The precision-machined base and table make the table's running straightness, yaw, pitch, and motion parallelism within a certain accuracy range.
  • The micrometer head is placed on one side of the translation stage for easy operation.
    Spring reset is used to eliminate axial clearance.
  • The table and base are distributed with mounting holes of standard hole spacing for easy installation and combination, and the mounting parts are specially treated.
  • Can be combined with other series of translation stages to form a multi-dimensional adjustment frame.

Table size

90mm × 90mm

Drive mode

Micrometer head

Drive position

Central drive

journey

50mm

Minimum scale

10 μ /0.5μ

Accuracy

3 μ /1.5μ

Minimum adjustment

2μ

Guide rail type

Cross Roller Guides

Loading

8kg

Straightness

2μ

Swing

20

Pitch

10

Table parallelism

5μ

Movement parallelism

5μ

Deadweight

0.45kg

Material

Hard aluminum

Surface treatment

Anodized black


MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
