MSE PRO Intelligent Flow Type Peristaltic Pump, Max Speed 100rpm - MSE Supplies LLC

MSE PRO Intelligent Flow Type Peristaltic Pump, Max Speed 100rpm

SKU: LS0336

  • $ 1,34995

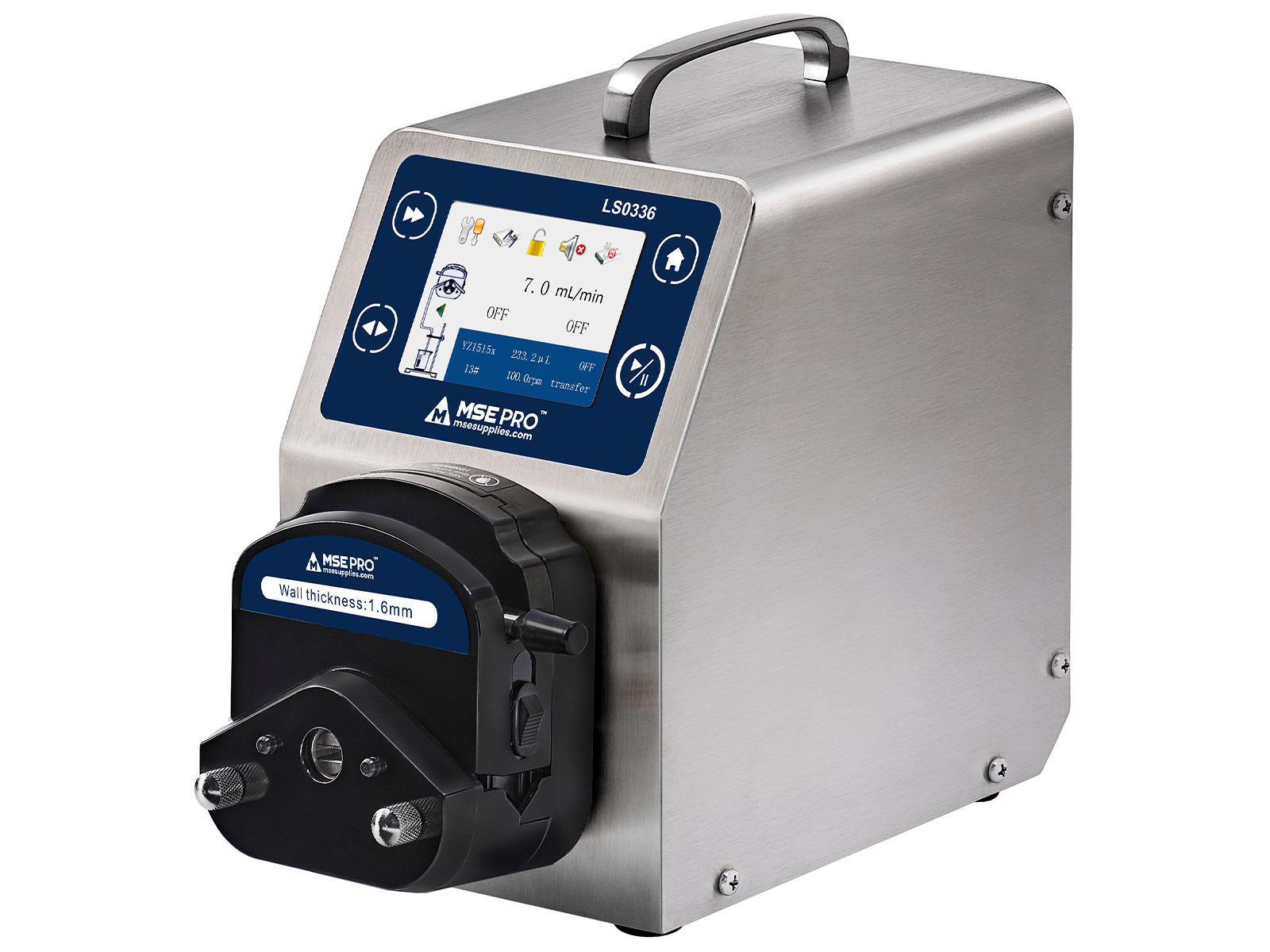

MSE PRO™ Intelligent Flow Type Peristaltic Pump, Max Speed 100rpm

MSE Supplies offers an Intelligent Flow Type Peristaltic Pump, the max speed of which can be up to 100rpm. It offers four operational modes: transmission mode, timing mode, quantitative mode, and timed quantitative mode. Encased in a robust stainless-steel design, it guarantees durability and sturdiness. Equipped with a 3.5-inch color LCD screen and user-friendly touch operation, it conveniently displays transmission status, flow data, setting parameters, and transmission direction through animated visuals on the same screen. With a long service life and easy-to-operate functionality, it proves to be robust and durable. The pump is well-suited for handling both viscous and non-viscous fluids, making it ideal for tasks such as honey filling.

This Peristaltic Pump comes with YZ1515x pump head and 2 meters of 17# silicon tube (ID: 6.4mm and WT: 1.6mm) as standard accessory. For additional tubes/pump heads beyond the standard configuration, please contact us for more detail.

Brand: MSE PRO™

Features:

  • LCD Touch Display: Equipped with a 3.5-inch color LCD and touch screen controls, making it user-friendly and easy to operate.

  • Flow Calibration: Includes a flow calibration function, ensuring precise liquid transfer.
  • Data Storage: Capable of storing up to 8 sets of data for users.
  • Multiple Operational Modes: Offers various working modes such as Transmission mode, Timing mode, Quantitative mode, and Timed Quantitative mode.
  • Compatibility with Various Pump Heads: Compatible with YZ, DG, and TX series pump heads.
  • External Control Support: Supports RS485/MODBUS communication protocols, analog control, and foot switch control.

    Technical Data:

    SKU# LS0336
    Speed Range 0.1 ~ 100 rpm (reversible)
    Speed Resolution 0.1 rpm
    Flow Rate 0.0015 ~ 480 mL/min
    Speed Mode Touch screen + keypad
    Pump Head YZ1515x as standard (For other types please contact us.)
    Standard Tube Accessory

    Length: 2 m

    Inner Diameter x Wall Thickness: 6.4 x 1.6 mm (17#)
    Display Mode LCD
    Power Supply AC110 V
    Power Consumption ＜22 W
    Timing Range 0.1 s ~ 9999 min
    Quantitative Range 0.001 mL ~ 9999 L
    External Control Interface Start control/direction control/speed control (0 ~ 5 V, 0 ~ 10 V, 4 ~ 20 mA optional) RS485 serial communication.
    Drive Size 215 x 136.4 x 236.7 mm
    Drive Weight 4.64 kg


    Flow Rates for Tubing Compatible with the YZ1515x Pump Head

    Tubing size (ID x Wall thickness) Min. flow rate (0.1 rpm) Max. flow rate (100 rpm)
    0.8 mm x 1.6 mm (13#) 0.007 mL/min 7 mL/min
    1.6 mm x 1.6 mm (14#) 0.027 mL/min 27 mL/min
    2.4 mm x 1.6 mm (19#) 0.051 mL/min 51 mL/min
    3.1 mm x 1.6 mm (16#) 0.082 mL/min 82 mL/min
    4.8 mm x 1.6 mm (25#) 0.17 mL/min 170 mL/min
    6.4 mm x 1.6 mm (17#) 0.29 mL/min 290 mL/min
    7.9 mm x 1.6 mm (18#) 0.38 mL/min 380 mL/min
