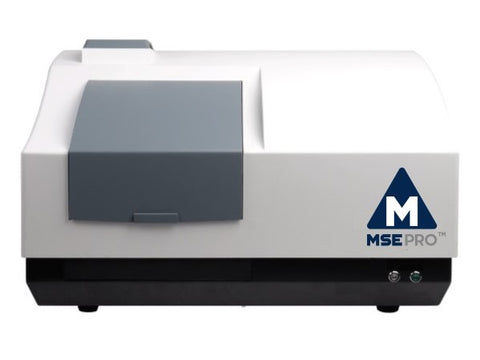

MSE PRO Lab Fluorescence Spectrophotometer
SKU: MA2012
MSE PRO Lab Fluorescence Spectrophotometer
Fluorescence analysis is a high sensitive and high selective sophisticated analytical method. This method can provide information including excitation and emission spectrum, emission light intensity and measurement of life of emission light and polarization fluorescence etc. It has becoming an important analytical method in the region of trace analysis. Fluorescence spectrophotometer has been used in various fields including medical and clinical, pharmaceutical, biochemistry, food industry, pollution analysis, organic and inorganic chemistry, etc.
Features
- Excellent luminous detection efficiency and high signal to noise ratio. Water Raman peak SNR better than 350: 1 (P-P) or 18000: 1 (RMS BG). The minimum sample volume is 0.5mL when using a standard 10mm square sample cell.
- Wavelength scanning speed up to 60000 nm / min.
- Bandwidth 1/2/5/10/20nm adjustable.
- The software offers fluorescence 3D scanning, equal-wavelength difference synchronous scanning, equal wave number difference (constant energy difference), and synchronous scanning functions. The synchronous scanning function requires the pro version of the software.
- Provides sufficient light intensity signal and the detection sensitivity.
- Built-in frequency filter. Built-in optical gate, designed for unstable sample.
- Fluorescence Quantum Yield accessory available.
Specifications
SKU # | MA2012 |
Excitation source | 150 W xenon lamp |
Excitation wavelength | 200-900nm |
Emission wavelength | 200-900nm |
Excitation slit | 1nm/2nm/5nm/10nm/20nm |
Eission slit | 1nm/2nm/5nm/10nm/20nm |
Wavelength accuracy | ±0.4nm |
Wavelength repeatability | ≤0.2nm |
Detection limit | ≤5×10-11g/mL(Quinine sulfate solution) |
Linearity deviation | Correlation coefficient γ≥0.995 |
Peak repeatability | ≤1.5% |
Wavelength scan speed | Multi-speed level, Max. 60,000nm/min |
Photometric value range | -9999 to 9999 |
Response time | 0.02/0.1/0.5/1/2/4/8s, auto adjust |
Power supply | 110V/60Hz |
Dimension | 610×460×365mm |
Warranty | 1 year |
