MSE PRO Rockwell Hardness Tester with Touch Screen - MSE Supplies LLC

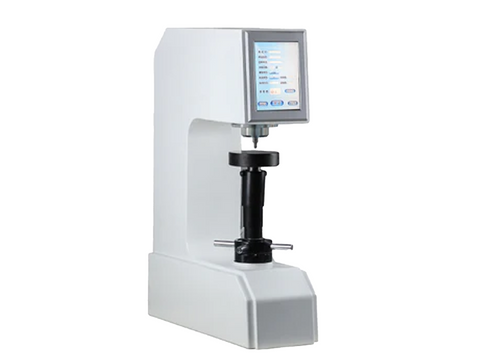

MSE PRO Rockwell Hardness Tester with Touch Screen

SKU: MA1305

  • $ 5,12995

MSE PRO™ Rockwell Hardness Tester with Touch Screen

MSE Supplies offers a Rockwell Hardness Tester. The Rockwell scale offers various scales, such as A, B, and C scales, each suited for different types of materials and hardness ranges. This tester is renowned for its ease of use, speed, and accuracy in determining hardness, making it widely utilized in manufacturing, metallurgy, and quality control area. Its versatility allows for quick and reliable assessments of material hardness, facilitating material selection and quality assurance processes in various industrial applications.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Main Features:

  • Utilizing electronic electric loading and high-precision sensors, it features a unique closed-loop control system.
  • Equipped with a touch screen interface, operators can directly select the hardness scale, with the force value automatically adjusted within the test parameters.
  • Each hardness scale is divided into high, middle, and low sections for automatic correction based on standard hardness blocks.
  • The test force can be automatically corrected by a standard dynamometer.
  • Automatically applies both the initial test force and the main test force.
  • It possesses robust data processing capabilities, including HR, HB, HV, and other hardness system conversions. It allows setting the qualified range and automatic alarm when limits are exceeded. Additionally, it enables input of tester and sample names, among other information.
  • Supports more sample and test information; measurement data is saved on a USB drive in EXCEL format, facilitating easy editing and processing.

                                              Technical Specifications:

                                                SKU MA1305
                                                Rockwell initial test force 10kgf (98.07N)
                                                Superficial Rockwell initial test force 3.0kgf(29.4N)
                                                Rockwell total test force 60kgf(588N), 100kgf(980N), 150kgf(1471N)
                                                Superficial Rockwell total test force 15kgf(147.1N), 30kgf(249.2N), 45kgf(441.3N)
                                                Rockwell hardness scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
                                                Superficial Rockwell hardness scale 15N, 15TW, 15W, 15X, 15Y, 30N, 30TW, 30W, 30X, 30Y, 45N, 45TW, 45W, 45X, 45Y
                                                Rockwell measurement range HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125
                                                Rockwell test range HR15N:70-94, HR30N:42-86, HR45N:20-77, HR15TW:67-93, HR30TW:29-82, HR45TW:10-72
                                                Standards BSEN 6508, ISO 6508, ASTM E18, GB/T230
                                                Dwell time 0-99s
                                                Hardness resolution 0.1HR
                                                Error of test force <1%
                                                Data output LCD display
                                                Maximum allowable specimen height 200mm
                                                Distance from indenter to wall 200mm
                                                Size 560*220*800mm
                                                Weight 70kg
                                                Power supply AC110V, 60Hz

                                                Standard Accessories:

                                                Item Quantity Item Quantity
                                                Diamond Rockwell Indenter 1 Pcs 1.5875mm Diameter Ball Indenter 1 Pcs
                                                Hardness Blocks (HRC High-Low, HRB, HR15N, HR30N, HR30T) 6 Pcs Large, Medium, V-shaped Anvils 1 of Each
                                                2A Fuses 2 Pcs Universal Adjustable Feet 4 Pcs
                                                USB Drive, Touchscreen Pen 1 of Each Dust Cover 1 Pcs
                                                Power Cord 1 Pcs Instruction Manual 1 Pcs
                                                Product Certificate, Warranty Card 1 Pcs

                                                For accessories/consumables and other available models, please contact us so we can help you choose appropriate products for your needs.
