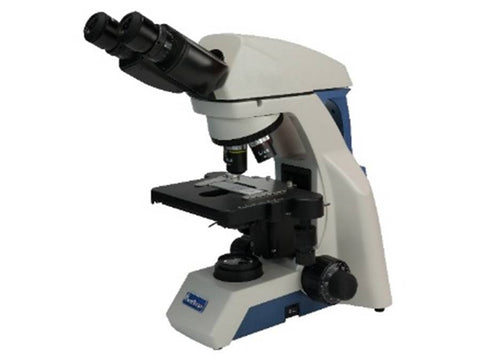

MSE PRO SMK-1016 Biological Microscope Machine
SKU: LS2016
MSE PRO™ SMK-1016 Biological Microscope Machine
MSE PRO™ SMK-1016 microscopes are specially designed for various microscopy needs such as teaching and clinical diagnosis. It has good optical quality, wide field of view, excellent objective performance, clear and reliable imaging. Ergonomic design provides better comfort and use experience, pays attention to the user’s operating habits, starts from the details, and constantly optimizes. Modular design can realize various observation methods such as bright field, dark field, phase contrast, fluorescence, etc., providing more possibilities for your scientific research and exploration. It takes up little space and is very convenient for handling, storage and maintenance, it is the first choice for microscope beginners.
-
1.Excellent Image Quality
NIS optical system and optical elements using advanced coating technology make it easy to obtain good quality imaging. Excellent optical system is the guarantee of obtaining plan and clear images. Infinite achromatic semi-pan objective and even plan objective can be used in this microscope. It can provide clear images with high contrast, and the clear range can reach to the edge of the field of view. It also has bright and uniform illumination.
2.Wide Field of View
MSE PRO™ SMK-1016 microscopes can achieve the 20mm wide field of view under the 10X eyepiece, with more comprehensive observation field and faster sample observation. The eyepiece adopts the plan and distortion-free design to prevent blurring at the edges of the field of view and stray light.
3. Realize Various Observation Methods
Bright Field
Dark Field
Phase Contrast
Fluorescence
Simple Polarization
●
●
●
●
●
4.Applicable to Any Environment
Anti-mold treatment greatly extends the service life of the microscope. Since the objective, eyepiece and observation tube are all effectively anti-mildew treated, they can ensure continuous clear image and prolong the service life of the microscope. Even working in hot and high humid environment is not affected the working life.
5.Easy to Store and Transport
MSE PRO™ SMK-1016 microscopes are small enough to fit into a common classroom cabinet. There is a special carrying handle at the back, and it has light weight, good stability and stable structure. The back panel of the microscope is designed with a hub device, which can effectively store the long power cord, improve the cleanliness of the laboratory, and also reduce the trip accidents caused by the long power cord during transportation. Wooden storage box as an optional accessory can bring great convenience for storage and handling.
6.External power adapter, safer than ordinary microscopes.
External power adapter with DC5V input, safer than ordinary microscopes.
7.Ergonomic Design
MSE PRO™ SMK-1016 microscopes adopt ergonomic design, high eye point, low-hand focusing mechanism, low-hand stage and other ergonomic designs to ensure that users can operate the microscope under the most comfortable conditions and minimize the working fatigue.
8.Extremely Smooth Nosepiece
The nosepiece adopts a low damping design, high-precision machining ensures smoothness and durability in use. The nosepiece has a rubber ring, which is ergonomic and easy to convert.
9.Stage Designed for Beginners
The rackless stage prevents users from being scratched by exposed rack during use. The slide clip can be easily operated with one hand. When the upper limit of the stage is locked, accidental contact between the objectives and the slide can be avoided, which can prevent damage to samples and objectives. The coarse focus torque adjustment device can adjust the comfort of use according to personal operating habits.
10.Binocular head with built-in WIFI digital camera optional
Built-in high-definition HDMI&WIFI digital camera, support 5.0MP picture capture, 1080P video preview and capture. Supporting Android, IOS, windows operating system. The high-definition images under the microscope can be output to external devices in real time, and there is no data cable connection, the operator is more free to move. Observation, analysis and processing of microscopic imaging can be realized in external equipment, including photographing, measurement, image adjustment, storage, processing, etc.
Application
MSE PRO™ SMK-1016 microscopes are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.
* Seidentopf Binocular Head, Inclined At 30°, Interpupillary 47-78Mm, Both Eyepiece Tube Diopter Adjustable
* Wf10×/20Mm Eyepieces
* Infinite Semi-Plan Achromatic Objectives 4X, 10X, 40X, 100X
* Rackless Double Layers Mechanical Stage 150Mm×139Mm, Moving Range 75Mm×52Mm * 3W Led Illumination, Brightness Adjustable
* Abbe Condenser Na1.25
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Lab Microscope Machines. Please contact us for more information.
