MSE PRO SMK-1019 Biological Microscope Machine
SKU: LS2019

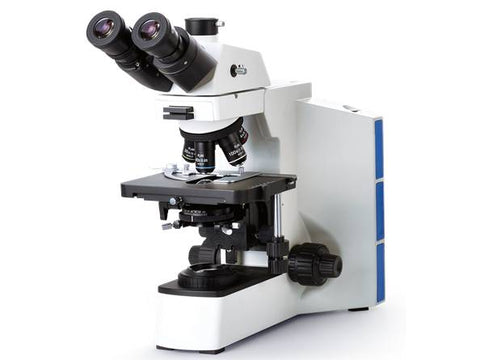

MSE PRO™ SMK-1019 Biological Microscope Machine
MSE PRO™ SMK-1019 microscopes are high end microscopes which are specially designed for college education, medical and laboratory teaching and research. With excellent infinity color corrected optical system, new upgraded Koehler illumination system, presents a clear & bright micro-image under each magnification. Ergonomically designed to provide better comfort and experience. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence and simple polarizing. This series microscopes are widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields.
High rigidity body structure.
Fire-new designed integrative Y-shaped body, all-metal diecasted under high pressure, High image quality with high stability under every magnification observation. Ensures the test precision of multi-channel fluorescence diagnosis.
High precise low position focusing system.
Low position high precise coaxial coarse and fine adjustment, with ergonomics design, create the best comfort to operator.
Screwdriver storage device.
The screwdriver storage device makes full use of the space of the microscope, the screwdriver at users’ fingertips enables users to improve work efficiency.
Mechanical stage.
(1) Standard 175×145mm right-hand double-layer mechanical stage, damping double slice clamp design, can place two slices at the same time for inspection and comparative analysis.
(2) Optional 150mm×162mm ceramic spray mechanical stage, which is not only wear-resistant and anti-corrosive, but also can reduce platform deformation caused by temperature changes.
(3) Optional 187×166mm super large double-layer mechanical stage, two-way linear rail transmission, left and right hand positions are optional.
Safe carrying design.
The rear side of the microscope has been designed with a handle position, which makes it safe and easy when carry the whole microscope.
Safe carrying design.
The rear side of the microscope has been designed with a handle position, which makes it safe and easy when carry the whole microscope.
Application
MSE PRO™ SMK-1019 microscopes are ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, clinics, medical colleges and universities.
* High eye-point wide field plan eyepiece PL10x/22mm, reticle can be assembled. * Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary distance 54-75mm, diopter +/- 5 adjustable on left tube, Anti-Fungus, Tube Diameter 30m
* Infinite Plan Achromatic Objective 4×, 10X, 40X, 100X * Backward Quintuple Nosepiece * 175x145mm double layer mechanical stage (X, Y moving hand wheel in right or left hand); moving range: 76x50mm, precision: 0.1mm. * N.A.1.2/0.22 swing-out type achromatic condenser
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Lab Microscope Machines. Please contact us for more information.
