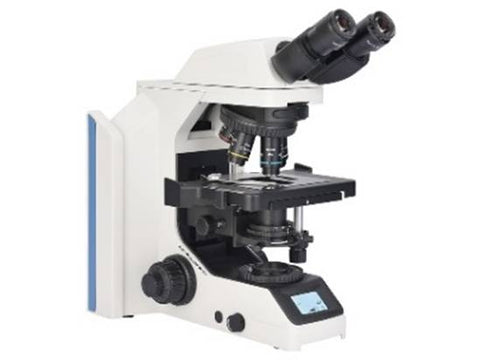

MSE PRO™ SMK-1024 Research Biological Microscope Machine

MSE PRO™ SMK-1024 microscopes are designed for professional laboratory microscopic observation. On the one hand it has upgraded optical system, NIS infinity optics system provides excellent extendibility for this microscope, high numerical aperture (NA) plan achromatic objective and various types of optical components which have adopted multilayer coating technology could ensure the high image quality. On the other hand, improving comfort and operation convenience continuously, and the LCD screen in front of the microscope displays real-time working status of microscope, universal condenser, stopper that can be used to set the upper limit of the stage height etc., these structures ensure that even beginners can use it smoothly. Ergonomic design helps you to stay focused for longer by reducing the strain on your body, which is the best choice for scientific research experimenters and medical examiners for microscopic observation.

1. High quality Infinite Plan Achromatic Objectives.
MSE PRO™ SMK-1024 adopted NIS series infinite plan achromatic objectives, which feature flat, sharp images up to the periphery of the field of view. High numerical aperture(NA) and long working distances, high resolution, can restore the real colors and realize accurate observation of samples.

2. Kohler illumination, uniform brightness throughout the field of view.
Adding a Kohler mirror in front of light source to provide bright and uniform field of view. Work together with the infinite optical system and high-resolution objective, provides you perfect microscopic imaging.

3. Comfortable and worry-free focus knob.
Low position focus knob design, different areas on the specimen slide can be easily explored while resting your hands on the table, with adjustable torque could improve comfort. MSE PRO™ SMK-1024 is equipped with a stopper that can be used to set the upper limit of the stage height, the stage stops at the set height even when the focus knob is turned, thereby eliminating the risk of over-focusing and breaking the slides or damaging the objectives.

4. Put slide by one hand.
Slides can be quickly slid in and out with one hand. The universal sample holder is suitable for a variety of slide types, such as Hemocytometer.

5. Easy-to-rotate coded quintuple nosepiece.
High-precision machining ensures smoothness and durability in use. The coded nosepiece features an easy grip for smooth rotation, and accommodates up to five objectives, users can also choose 2X objective with large field of view, phase contrast and semi-APO objectives.

6. Uniform and stable brightness.
The LED light source with color temperature adjustment function, which could produce daylight lighting conditions, so that the sample presents a natural color. The designed life span of LED lamp is 50,000 hours, which not only reduces maintenance costs, but also keeps the brightness stable during use.

7. Universal condenser is more convenient to use.
Users can switch from 4X to 100X without moving the top lens. Contrast adjustment is performed by adjusting the iris diaphragm.

8. Working status display.
Working status including magnification, brightness, color temperature, stand by status are shown on the LCD screen which is in front of microscope.

9. Smart illumination management design.
Longtime microscope observation requires frequent magnification switching, brightness adjustment, color temperature adjustment, etc. MSE PRO™ SMK-1024 simplifies these repetitive mechanical operations and displays status on the LCD to improve work efficiency and provide comfortable operation experience.
(1) Maintains comfortable brightness when switching magnifications.

MSE PRO™ SMK-1024 features intelligent Light Intensity Management which automatically remembers and sets the light intensity level for each objective, with this function, users can increase comfort and save time when it requires frequent magnification changes.

(2) Color temperature adjustable.
With color temperature adjustment function, the LED light source produces daylight lighting conditions, so that the sample presents a natural color. Since the color temperature can be changed according to observation demand, the brightness and color temperature could keep users feel comfortable.

(3) Realize various functions with one brightness control knob.
*Single click: enter standby status
*Double click: light intensity lock or unlock
*Rotate: adjust brightness
*Press and rotate up direction: adjust brightness
*Press and rotate down direction: adjust color temperature
*Hold the press for 3s: setting ECO

(4) Automatically power off after a period of inactivity.
MSE PRO™ SMK-1024 is equipped with an ECO mode which automatically turns off the illumination after a certain period of inactivity, the length of the inactivity period is adjustable, with ECO mode, it helps you save power and extend microscope life.

10. Easier transportation and storage.
MSE PRO™ SMK-1024 is equipped with a special handle, which is light and stable. Its back board is designed with a hub device, which effectively accommodates excessive long power cords and improves cleanliness of the laboratory.
At the same time, it also reduces trip accidents caused by excessive long power cords during transportation.

Application

MSE PRO™ SMK-1024 research microscopes are ideal instruments in biological, histological, pathological, bacteriological, hematological, immunological, pharmaceutical and life science fields, they could be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities for teaching, research and examinations.

 * Excellent Optical Design, NIS infinite Color Corrected Optical System,                             * Seidentopf Binocular Head, 30° inclined, 360° rotation, interpupillary distance: 47mm-78mm
 * Super wide field plan eyepiece SW10X/22mm                                                                   * Infinite Plan Achromatic Objective 4×, 10x, 40x, 100x                                                         * Backward Quintuple Coded Nosepiece (with DIC slot)                                                       * Rackless stage, Size 230×150mm, Moving Range 78×54mm                                             * Easier to store and transport.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC
