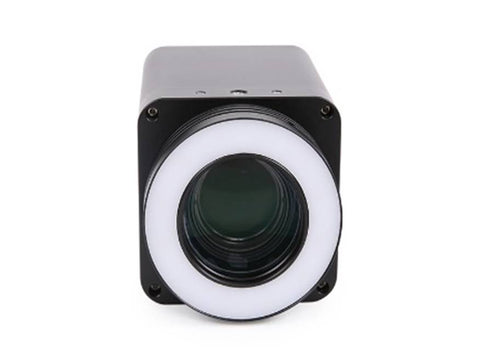

MSE PRO SMK-1105 Large field Zoom Autofocus Digital Microscope

MSE PRO™ SMK-1105 Large field Zoom Autofocus Digital Microscope

BMM is a series of electric controlled continuous zoom and autofocus all-in-one digital macro microscope with a large field of view. It is integrated with HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumintaion Light. BMM is the abbreviation of BestScope Macro Microscope. Different products in the BMM series can be formed with different part to satisfy the application requirement.

BMM can be assembled with various brackets or arms and offer a continuous zooming ratio with different lens. BMM also supports autofocus mode and manual focus mode.

BMM comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has XFCAMView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by BMM can be saved on an SD card for on-site analysis and follow-up research.

MSE PRO™ SMK-1105 supports 4K30FPS HDMI output and USB/ LAN/WIFI outputs.

• 5 groups 16 elements lens with 0.028~0.56X, 20X zoom ratio, supports auto and manual focus
• 192mm standard working distance with 150~195mm depth of field
• At standard working distance, the large field of view 200mm*112.5mm at low magnification, helping users to quickly locate the target object, the small field of view 10mm*5.6mm at higher magnification, helping users to observe microscopically
• Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio
• 4K HDMI/USB/ETH/WiFi multiple video outputs
• 4K/1080P auto switching according to monitor resolution
• SD card/USB flash drive for captured image and video storage, support local preview and playback
• Built-in mouse control software XFCAMView, all functions can be realized with USB mouse
• Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel
• Multi-language support
• Head suction LED ring light, the brightness can be directly controlled by XFCAMView
• With the adapter bracket of 76mm diameter, a electric controlled continuous zoom BMM can be built

Application

BMM can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.

* 5 groups 16 elements lens with 0.028~0.56X, 20X zoom ratio, supports auto and manual focus;
* 192mm standard working distance with 150~195mm depth of field;
* At standard working distance, the large field of view 200mm*112.5mm at low magnification, helping users to quickly locate the target object, the small field of view 10mm*5.6mm at higher magnification, helping users to observe microscopically;
* Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio;
* 4K HDMI/USB/ETH/WiFi multiple video outputs;
* 4K/1080P auto switching according to monitor resolution;
* SD card/USB flash drive for captured image and video storage, support local preview and playback;
* Built-in mouse control software XFCAMView, all functions can be realized with USB mouse;
* Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel;
* Multi-language support;
* Head suction LED ring light, the brightness can be directly controlled by XFCAMView;
* With the adapter bracket of 76mm diameter, a electric controlled continuous zoom BMM can be built.

 Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Lab Microscope Machines. Please contact us for more information.
