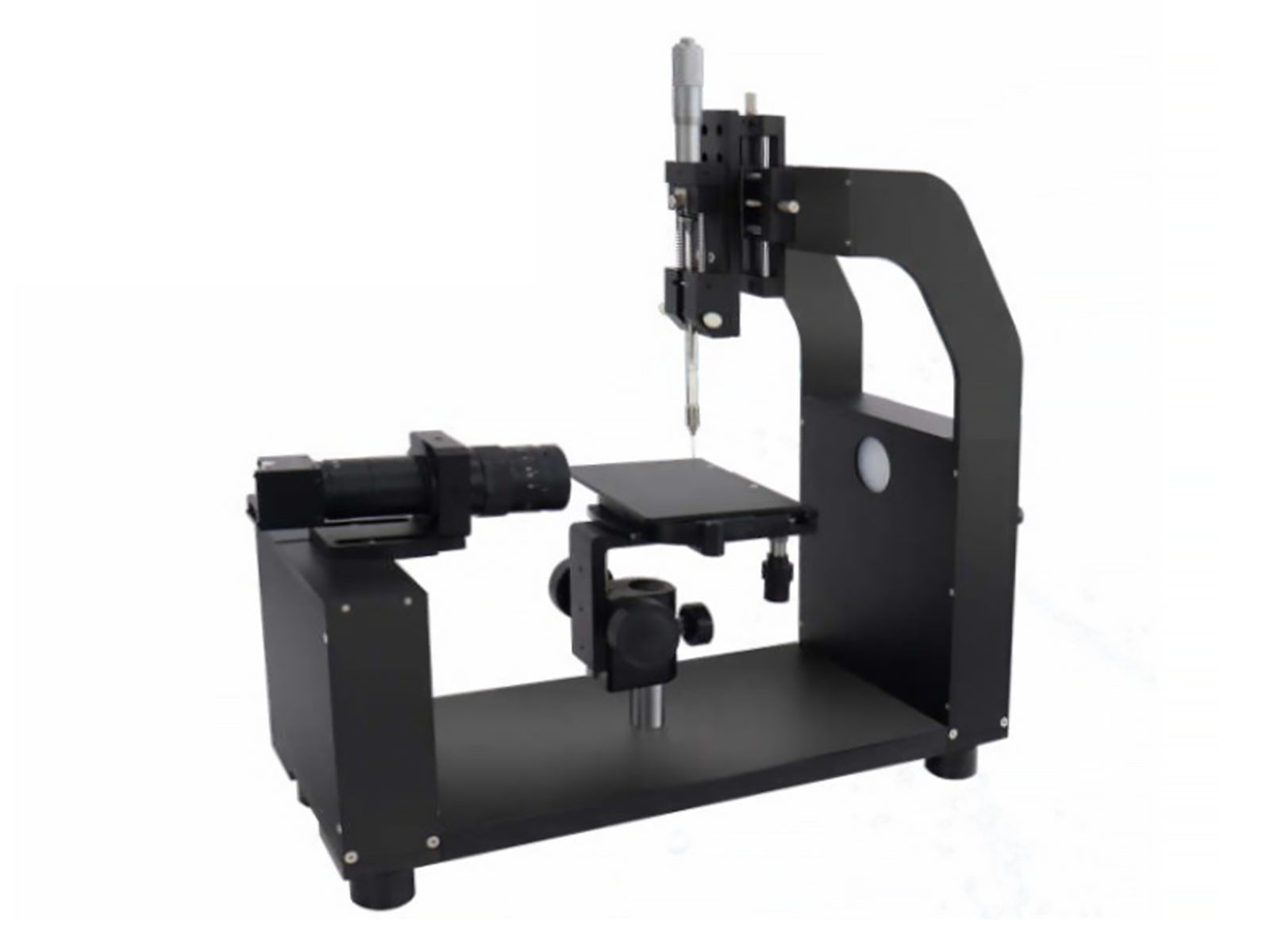

MSE PRO Standard Contact Angle Meter/Goniometer
SKU: MA2112
MSE PRO™ Standard Contact Angle Meter/Goniometer
MSE Supplies offers standard contact angle meter. This model has higher accuracy than our entry level product. It can be used to measure the hydrophobicity, wettability, surface tension, and many other test functions. A contact angle meter is also known as a contact angle goniometer. It is a scientific instrument used to measure the contact angle formed between a liquid droplet and a solid surface. This measurement provides valuable information about the wettability of the surface by the liquid. It is widely used for materials science, surface chemistry, engineering, and many other fields.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Specification:
| SKU | MA2112 |
| Dimension (WxDxH) | 550mm x 196mm x 485mm |
| Weight | 11kg |
| Power Supply | 100~240VAC, 50/60Hz |
| Base Material | Aluminum |
| Stage Area | 130mm × 150mm |
| Platform Control | Manual |
| Platform Moving Range | 60mm x 35mm x 80mm |
| Moving Accuracy | ±0.1mm on each side |
| Measurement Range | 0°～180° |
| Measurement Accuracy | ±0.01° |
| Syringe Volume | 1000μL |
| Needle Diameter | 0.51mm |
| Syringe Accuracy |
0.1μL |
| Sample Introduction Mode | Manual (can be upgraded to peristaltic pump) |
| Camera System | USB 3.0 CMOS camera: 120fps |
| Camera Resolution | 4000(H) x 3000(V) |
*Please contact us for detail specification and accessories guidance.
Measurement Method:
a. Sessile drop
Measurement Function:
a. Surface energy analysis
b. Static contact angle measurement
Fitting Method:
a. Circle/Three-point method
b. Ellipse method
c. Width and height method
d. Concave surface method
e. Convex surface method
f. Young-Laplace method
g. Five-point method
