MSE PRO Two Stage Rotary Vane Vacuum Pump
SKU: MA0750

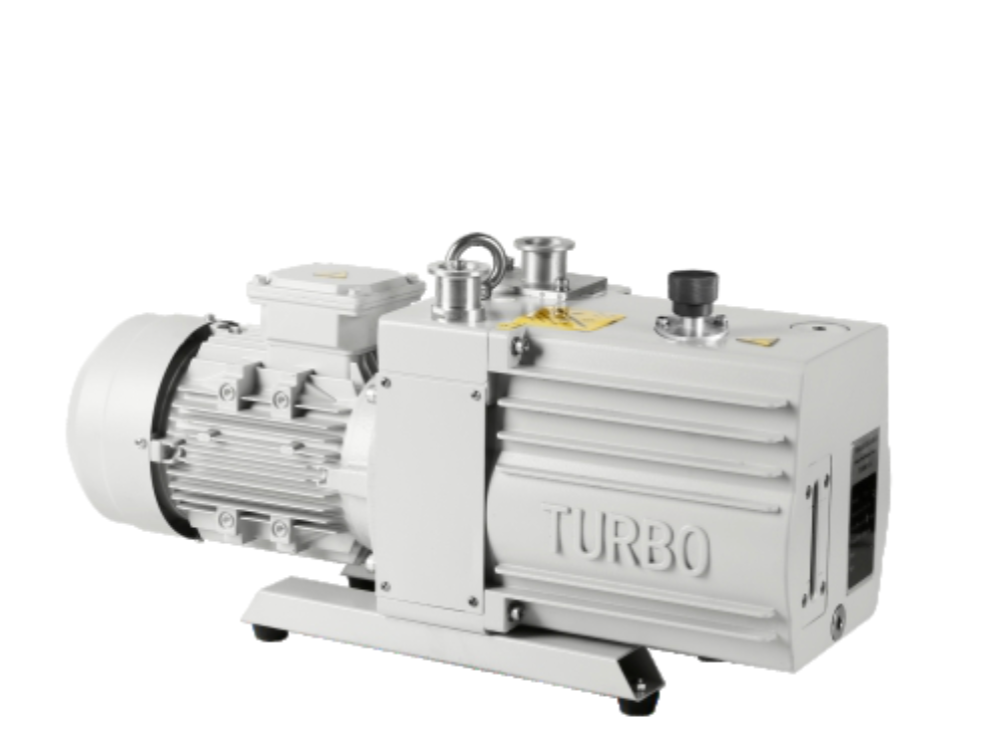

MSE PRO™ Two Stage Rotary Vane Vacuum Pump
MSE Supplies offer Two Stage Rotary Vane Pumps with different pumping speed options. They are a type of mechanical vacuum pump that are often used for low or medium vacuum applications. It operates based on the principle of positive displacement and consists of two stages, each with its own set of rotating vanes (blades). The integrated gas ballast allows vapors to be pumped down. They may not be suitable for handling highly corrosive or reactive gases due to the potential chemical reaction with the lubricating oil. In such cases, alternative vacuum pump technologies are required. They are compatible with our vacuum oven.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Applications
- Analytical instruments
- Laboratory bench top vacuum
- Vacuum oven
- Leak detectors, helium
- Research and development
- Coating technology
Technical Data:
| SKU# | MA0750 | MA0751 | MA0752 |
| Dimension (mm) | 520x175x285 | 540x175x285 | 564x175x285 |
| Pumping speed (m3/h) | 8 | 16 | 24 |
| Pumping speed (CFM) | 4.7 | 9.4 | 14.1 |
| Voltage | 110V | ||
| Motor Power (kW) | 0.37 | 0.55 | 0.75 |
| Without gas ballast (mbar/Torr) | 5 x 10-4 / 3.75 x 10-4 | ||
| Without gas ballast total (mbar/Torr) | 10-2 / 7.5 x 10-3 | ||
| With gas ballast total (mbar/Torr) | 6 x 10-2 / 4.5 x 10-2 | ||
| Connection port (Intake and exhaust valve) | KF25 | ||
| Ambient temperature (℃) | 12 ~ 45 | ||
| Volume of oil (min/max) (L) | 1.0 / 1.4 | 1.4 / 1.8 | 1.45 / 1.9 |
| Weight (kg) | 33 | 36 | 38 |
