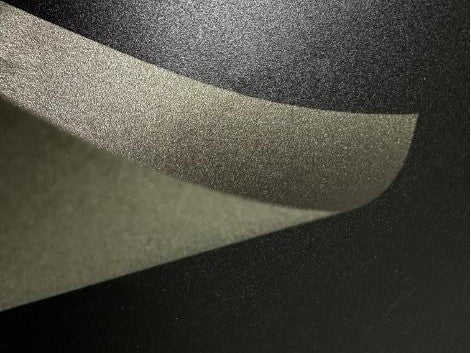

MSE PRO Ultra-Thin Porous Titanium Sheet

MSE PRO™ Ultra-Thin Porous Titanium Sheet

Description

Porous titanium GDL (Gas Diffusion Layer) is a commonly used material in Polymer Electrolyte Membrane (PEM) electrolyzers, employed for gas transport and electron
conduction during the electrolysis process.

Good gas transport performance: The porous titanium GDL has a high degree of gas permeability, effectively transporting hydrogen or oxygen to the catalytic layer of the electrolytic reaction, thereby improving reaction efficiency.

Excellent electronic conduction performance: The porous titanium GDL can provide a good electronic conduction path, ensuring rapid electron transfer during the electrolysis process, thereby increasing the rate and efficiency of the electrolytic reaction.

Specification

Thickness: 0.1mm, 0.25mm

Accuracy / Pore Size: 10um-50um

Porosity: 50%-80%

Thermal conductivity: 6.7-7.5 W/(m·K)

Technique: Powder Sintering Process

Surface: Smooth, clean and metallic

Application: Pure water electrolysis hydrogen production GDL / PTL

The size of this product can be customized. Please contact us with any specific customization requirements.
