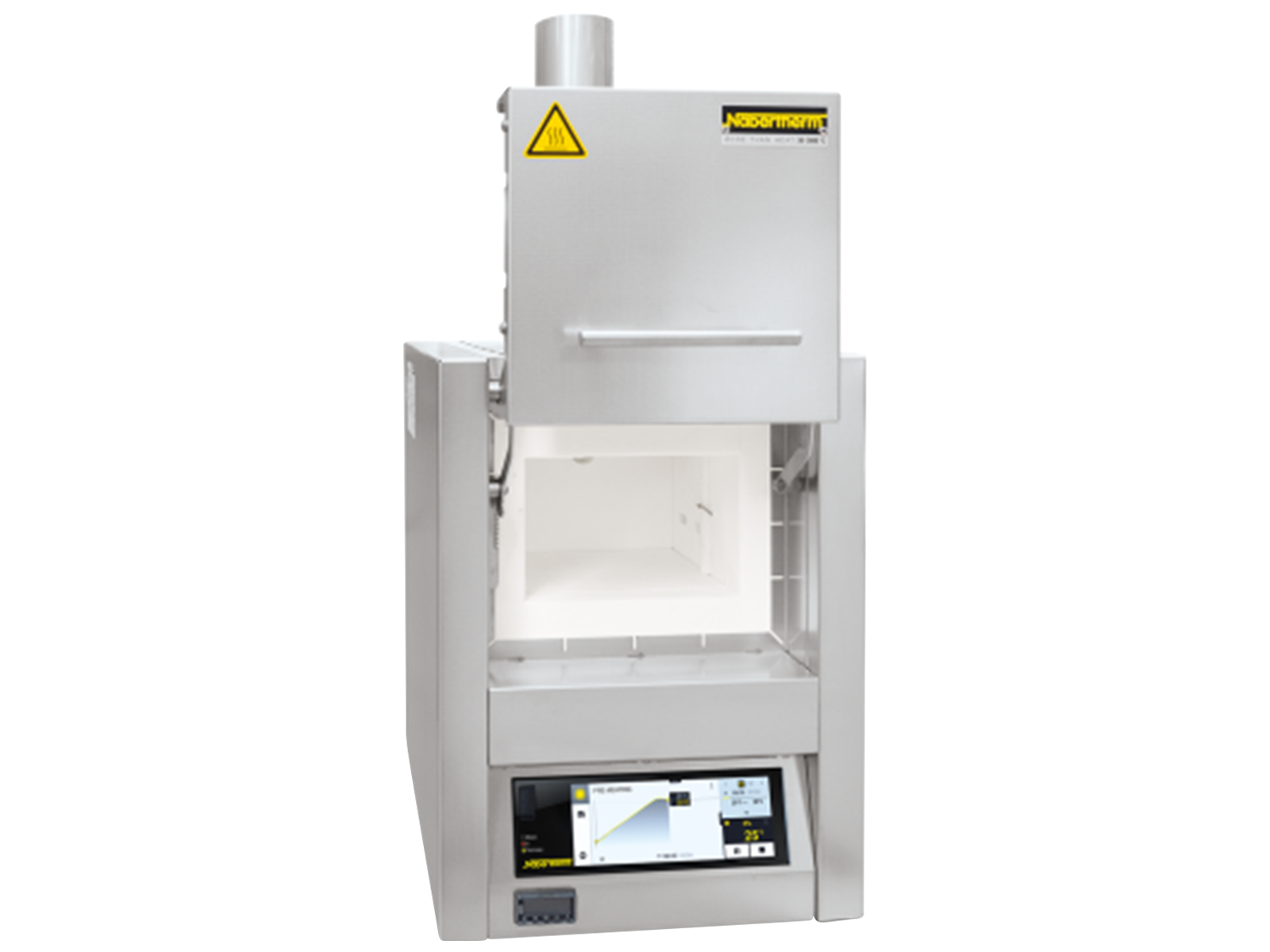

Nabertherm 1100°C Ashing Furnace LVT 3/11

Nabertherm 1100°C Ashing Furnace LVT 3/11

SKU: LV035H11NL-208

  • $ 5,28295

Nabertherm 1100°C Ashing Furnace LVT 3/11

MSE Supplies offers an 1100°C Ashing Furnace LVT 3/11 is designed especially for ashing processes to 1050 °C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.

Buy Nabertherm laboratory furnaces from MSE Supplies with the best price. Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Germany. Nabertherm offers a wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces.

Country of Origin: Made in Germany

Manufacturer: Nabertherm GmbH

Main Features:

  • Tmax 1100 °C
  • Heating from two sides
  • Ceramic heating plates with integral heating element which is safeguarded, and easy to replace
  • Air exchange of more than 6 times per minute
  • Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550  °C)
  • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
  • Suitable for many standardized ashing processes according to ISO, ASTM, EN, and DIN
  • Optional flap door (LV) which can be used as work platform or lift door (LVT) with hot surface facing away from the operator
  • Controller with touch operation B510 (5 programs with each 4 segments)
  • Solid state relays provide for lownoise operation
  • Defined application within the constraints of the operating instructions
  • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Technical Data

SKU# LV035H11NL-208
Model LVT 3/11
Tmax  (°C) 1100°C
Inner Dimensions (mm) 180x150x120
Outer Dimensions (mm) 345x390x810 (may vary with different accessories)
Capacity (L) 3
Temperature Uniformity +/- 5°C in empty work space above 800°C
Power Supply (kW) 1.3
Electrical Connection

Single phase 208V
Weight (kg) 20
Time Needed to Reach Tmax   45min for empty and closed furnace
Warranty One year after delivery (not including thermocouple and heating wire)
Compliance The furnace is ready to pass UL (USA) or CSA (Canada) certification at extra cost



We offer Ashing furnaces with different capacities from 1 to 24L. For customization, please contact us.

About Nabertherm: Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Lilienthal near Bremen. It offers wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces. With more than 70 years of experience and one of the largest engineering departments in the furnace industry, the name Nabertherm stands for high quality "Made in Germany", future-oriented innovations, worldwide service and reliability. More than 100,000 customers in over 100 countries underline this.

MSE Supplies is an authorized distributor for Nabertherm GmbH in North America.
