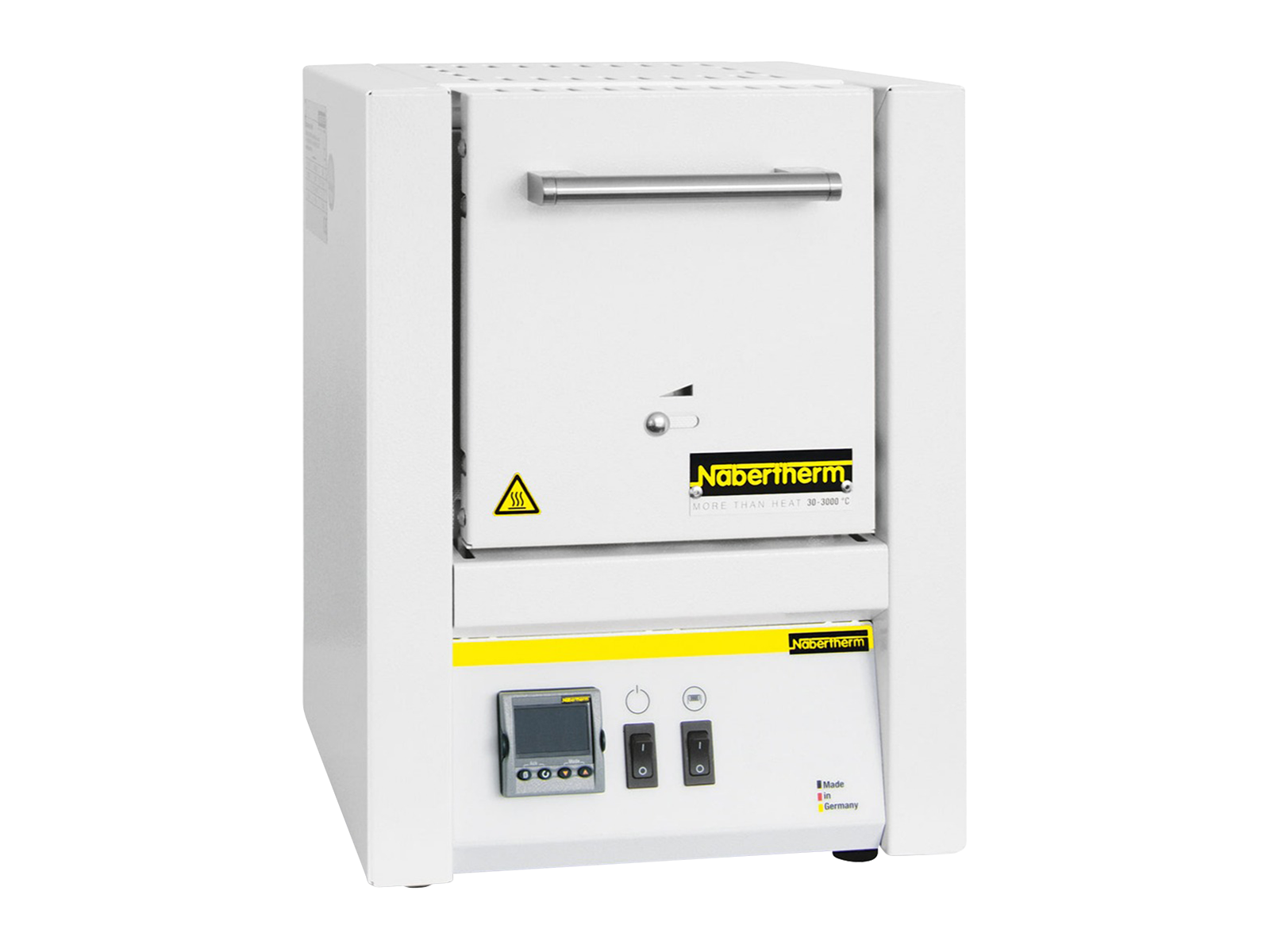

Nabertherm 1100°C Economy Compact Muffle Furnace LE 6/11
SKU: LE062K17N1-120
Nabertherm 1100°C Economy Compact Muffle Furnace LE 6/11
MSE Supplies offers an Economy Compact Muffle Furnace LE 6/11 with maximum operation temperature of 1100°C and capacity of 6L. With its convincing price/performance ratio and the fast heat-up rates, this compact muffle furnace is perfect for many applications, such as metal heat treatment, catalysts, etc., in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, its compact, lightweight constructions, or the heating elements encased in quartz glass tubes make this model reliable partners for your application.
Buy Nabertherm laboratory furnaces from MSE Supplies with the best price. Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Germany. Nabertherm offers a wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces.
Country of Origin: Made in Germany
Manufacturer: Nabertherm GmbH
Main Features:
· Tmax 1100°C (recommended long time working temperature:1050°C)
· Heating from two sides from heating elements protected in quartz glass tubes
· Fast heating times
· Maintenance-friendly replacement of heating elements and insulation
· Housing coated in RAL
· Flap door which can also be used as a work platform
· Exhaust air outlet in rear wall
· Compact dimensions and light weight
· Controller mounted under the door to save space
· Controller R7, single point controller.
Technical Data
SKU# | LE062K17N1-208/120 |
Model | LE 6/11 |
Tmax (°C) | 1100°C (1050°C for long time heating) |
Inner Dimensions (mm) | 170x200x170 |
Outer Dimensions (mm) | 390x440x470 (may vary with different accessories) |
Capacity (L) | 6 |
Temperature Uniformity | +/- 5°C in empty work space above 800°C |
Power Supply (kW) | 2.0 |
Electrical Connection |
Single phase 208V Single phase 120V |
Weight (kg) | 27 |
Time Needed to Reach Tmax | 30min for empty and closed furnace |
Warranty | One year after delivery (not including thermocouple and heating wire) |
Compliance | The furnace is ready to pass UL (USA) or CSA (Canada) certification at extra cost |
We offer economy muffle furnaces with different capacities from 1 to 24L. For customization, please contact us.
About Nabertherm: Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Lilienthal near Bremen. It offers wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces. With more than 70 years of experience and one of the largest engineering departments in the furnace industry, the name Nabertherm stands for high quality "Made in Germany", future-oriented innovations, worldwide service and reliability. More than 100,000 customers in over 100 countries underline this.
MSE Supplies is an authorized distributor for Nabertherm GmbH in North America.
