Nabertherm 1100°C High Performance Muffle Furnace L9/11/B510
SKU: L-095K1ANL-208

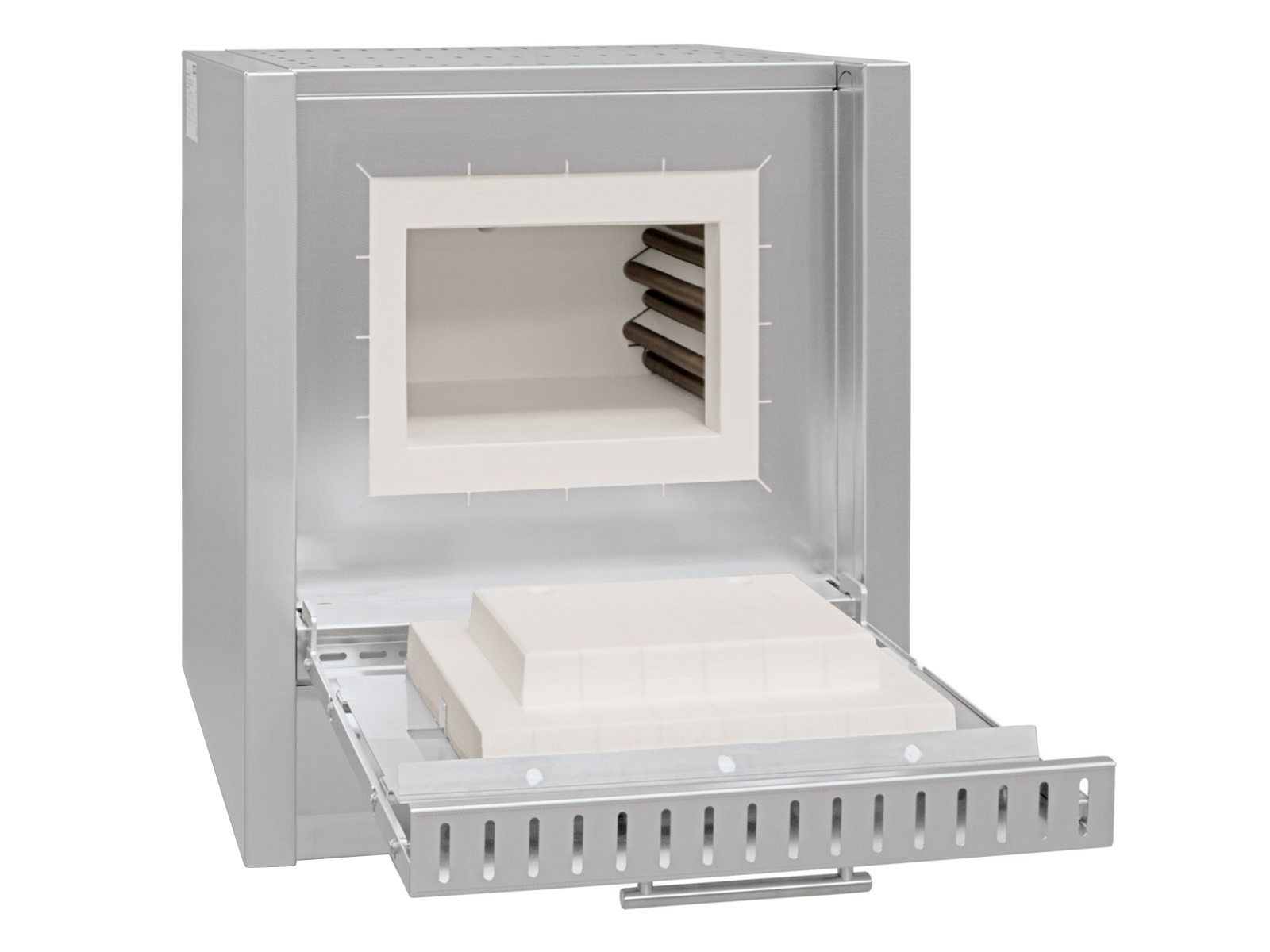

Nabertherm 1100°C High Performance Muffle Furnace L9/11/B510
MSE Supplies offers a High Performance Muffle Furnace L9/11 with maximum operation temperature of 1100°C and capacity of 9L. The L9/11 models have been proven popular for daily laboratory use, such as metal heat treatment, catalysts, etc.. They stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle furnaces come equipped with either a flap door or lift door at no extra charge.
Buy Nabertherm laboratory furnaces from MSE Supplies with the best price. Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Germany. Nabertherm offers a wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces.
Country of Origin: Made in Germany
Manufacturer: Nabertherm GmbH
Main Features:
· Tmax 1100°C
· Heating from two sides by ceramic heating plates for an optimal temperature uniformity
· Thermocouple type: type S
· Ceramic heating plates with integral heating element which is safeguarded and easy to replace
· Optional flap door (Model: L) which can be used as work platform or lift door (Model: LT) with hot surface facing away from the operator
· Adjustable air inlet integrated in door
· Exhaust air outlet in rear wall of furnace
· Controller B510 (5 programs with each 4 segments) / C550 (10 programs with each 20 segments), you can control multiple furnaces remotely with app on your smartphone！
Options:
· Chimney, chimney with fan or catalytic converter
· Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the oven and load
· Protective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
· Manual or automatic gas supply system
· Port for thermocouple in the rear wall or in the furnace door
· Please contact us for more accessories
Technical Data
| Model | L9/11/B510 |
| Tmax (°C) | 1100°C |
| Inner Dimensions (mm) | 235x240x170 |
| Outer Dimensions (mm) | 415x455x515 (may vary with different accessories) |
| Capacity (L) | 9 |
| Temperature Uniformity | +/- 5°C in empty work space above 800°C |
| Power Supply (kW) | 3.3 |
| Electrical Connection |
Single phase 208V |
| Weight (kg) | 35 |
| Time Needed to Reach Tmax | 63min for empty and closed furnace |
| Warranty | One year after delivery (not including thermocouple and heating wire) |
| Compliance | The furnace is ready to pass UL (USA) or CSA (Canada) certification at extra cost |
We offer high performance muffle furnaces (Tmax 1100°C) with different capacities from 1 to 40L. Please contact us for customization.
About Nabertherm: Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Lilienthal near Bremen. It offers wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces. With more than 70 years of experience and one of the largest engineering departments in the furnace industry, the name Nabertherm stands for high quality "Made in Germany", future-oriented innovations, worldwide service and reliability. More than 100,000 customers in over 100 countries underline this.
MSE Supplies is an authorized distributor for Nabertherm GmbH in North America.
