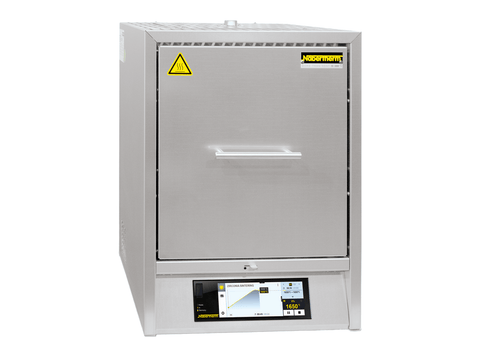

Nabertherm 1650°C High Performance Compact High Temperature Furnace LHT 03/17 D
SKU: LHT327VN1-208
Nabertherm 1650°C High Performance Compact High Temperature Furnace LHT 03/17 D
MSE Supplies offers a High Performance High Temperature Furnace LHT 03/17 D with maximum operation temperature of 1650°C and capacity of 4L. Designed as tabletop models, these compact high-temperature LHT furnaces have a variety of advantages. The first-class workmanship using high-quality materials, combined with ease of operation, make these furnaces all-rounders in research and the laboratory. These high-temperature furnaces are also perfectly suited for the sintering of technical ceramics, such as zirconium oxide dental bridges.
Buy Nabertherm laboratory furnaces from MSE Supplies with the best price. Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Germany. Nabertherm offers a wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces.
Country of Origin: Made in Germany
Manufacturer: Nabertherm GmbH
Main Features:
· Tmax 1650°C
· High-quality MoSi2 heating elements
· Adjustable air inlet opening, exhaust air opening in the roof
· Type B thermocouple
· Controller P570 (50 programs with each 40 segments), you can control multiple furnaces remotely with app on your smartphone!
Options:
· Over-temperature limiter with adjustable cutout temperature as temperature
limiter to protect the oven and load
· Protective gas connection to purge with non-flammable protective or reaction
gases, not gas tight
· Manual or automatic gas supply system
Technical Data
| Model | LHT 03/17 D |
| Heating Element | MoSi2 |
| Tmax (°C) | 1650°C |
| Inner Dimensions (mm) | 135x155x200 |
| Outer Dimensions (mm) | 470x630x760 (may vary with different accessories) |
| Capacity (L) | 4 |
| Power Supply (kW) | 3.0 |
| Electrical Connection |
Single phase 208V as default Single phase 240V as optional |
| Weight (kg) | 75 |
| Time Needed to Reach Tmax | 30min for empty and closed furnace |
| Warranty | One year after delivery (not including thermocouple and heating wire) |
| Compliance | The furnace is ready to pass UL (USA) or CSA (Canada) certification at extra cost |
We offer high performance high temperature furnaces different sizes and Tmax. For customization, please contact us.
About Nabertherm: Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Lilienthal near Bremen. It offers wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces. With more than 70 years of experience and one of the largest engineering departments in the furnace industry, the name Nabertherm stands for high quality "Made in Germany", future-oriented innovations, worldwide service and reliability. More than 100,000 customers in over 100 countries underline this.
MSE Supplies is an authorized distributor for Nabertherm GmbH in North America.
