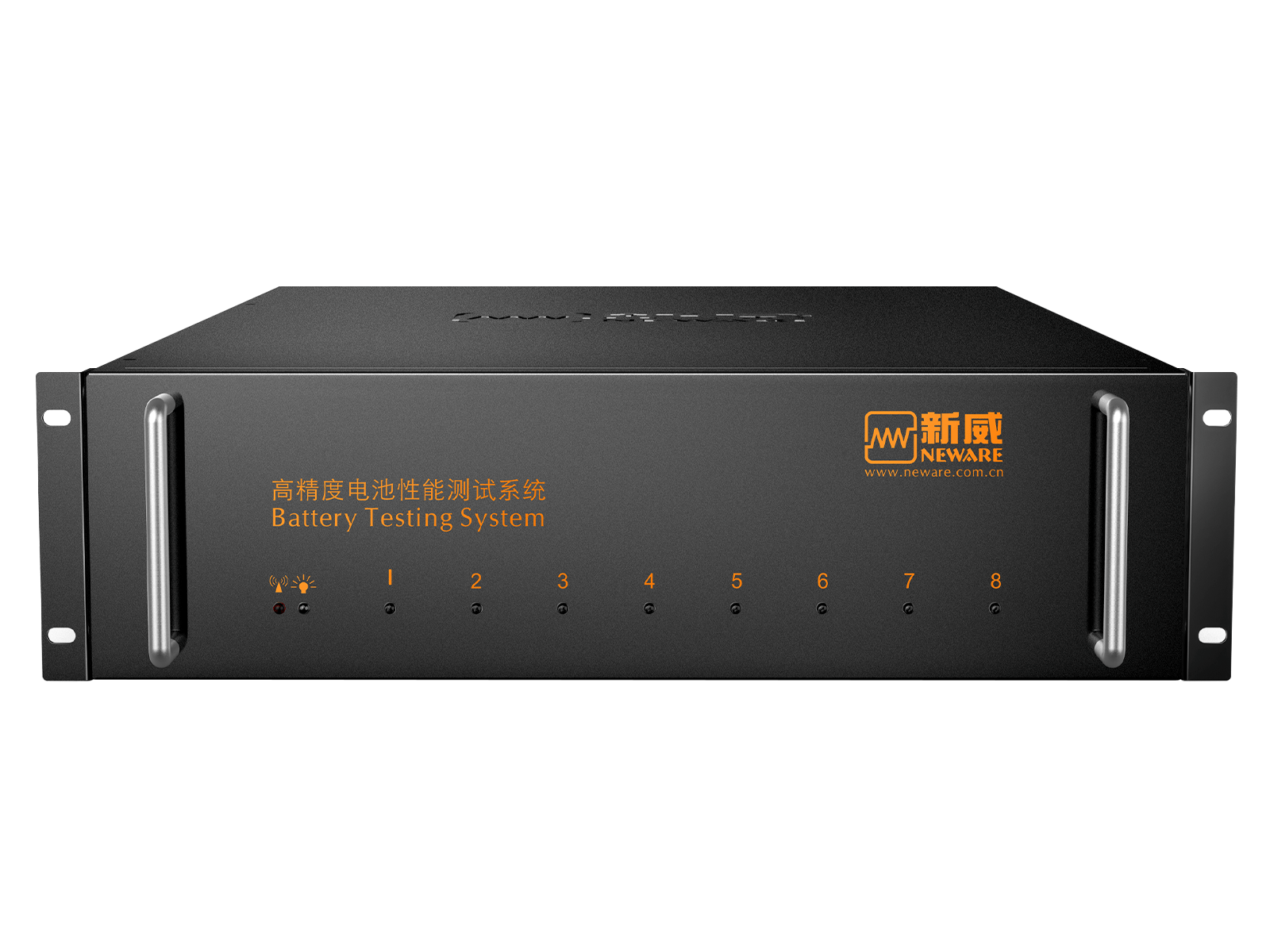

Neware CT-9008-5V5A 8 Channels High Precision (nA) Battery Testing System

Product Details:

Neware CT-9004-5V5A high precision battery testing system has lots of features, such as 8 channels, 0.02% accuracy, 1000Hz data acquisition frequency, 4 current range, supporting GSM and CDMA. The current accuracy is as high as ±30nA. It has 8 channels which have independent constant-current and constant-voltage source, programmed and controlled by computer software. It is widely used for high precision electrochemical performance test on coin cell, cylindrical cell and pouch cell in battery R&D and manufacturing lab.

Product Features:

• Four current ranges: 0.1μA-150μA, 150μA-5mA, 5mA-150mA and 150mA-5A
• Accuracy:±0.02% FS
• Current response time: ≤100μS
• Minimum plus width: 100μS
• Data acquisition frequency: 1000Hz

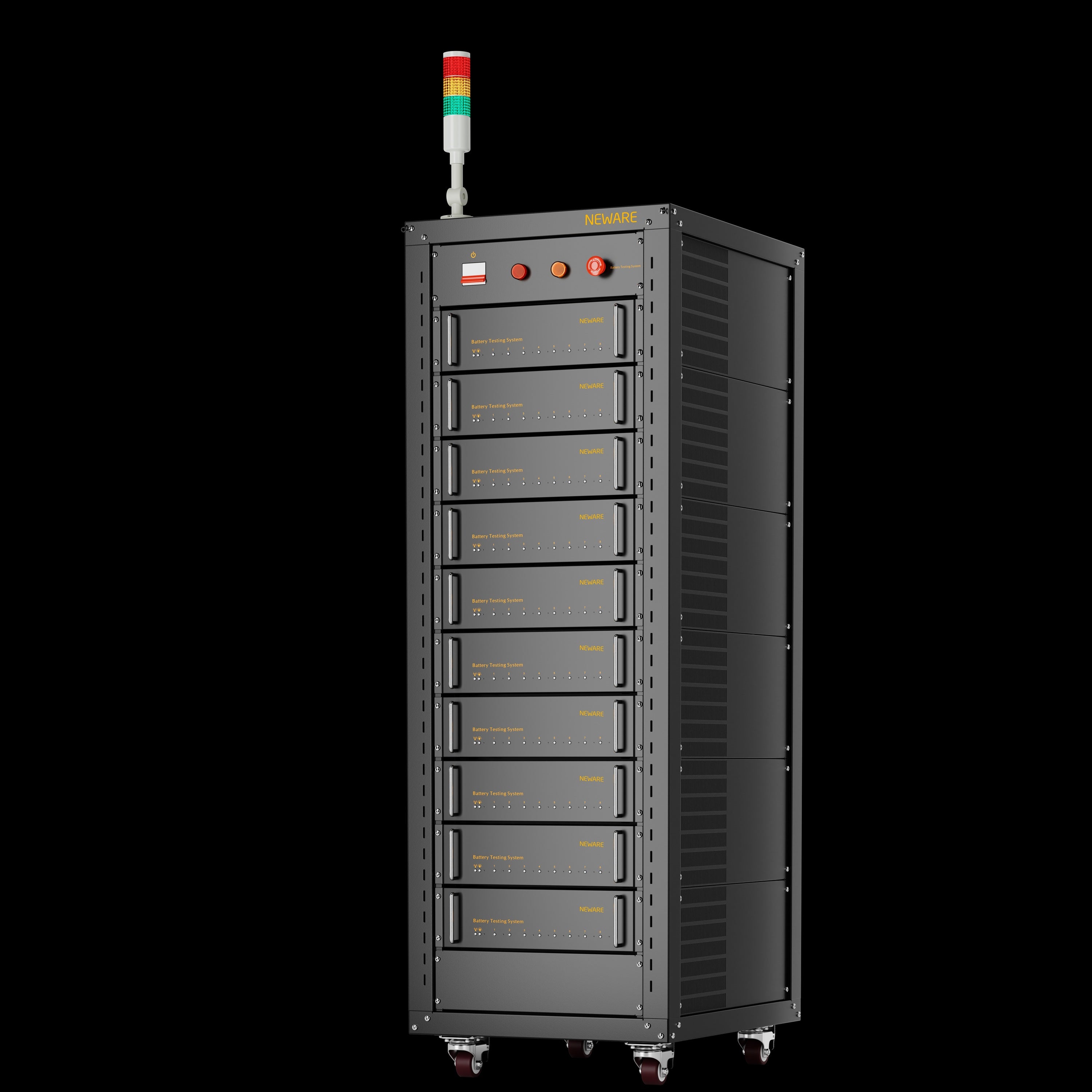

For bulk orders (≥5 sets), we can offer a complimentary rack to hold multiple units. Please contact MSE Supplies for bulk orders.

About Neware

Since 1998, Neware has been committed to providing world-class testing solutions for the batteries and capacitors. Neware has provided flexible, high accuracy battery testing equipment to more than 32,000 customers worldwide ranging from battery manufacturers to R&D institutes, such as Argonne National Lab, LG Chem, Johnson Matthey, 3M, MIT, Stanford University and Princeton University. Customers are satisficed with stable, cost-effective battery testing equipment, along with the great service of Neware. ISO9001:2015 certified,

MSE Supplies is an authorized distributor of Neware in the USA. The product figure is for reference only. The actual product may look different based on the product configuration.

MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

Product Specifications:
