PTFE-Coated Aluminum Block

PTFE-Coated Aluminum Block

Buy Redox.me products from MSE Supplies at the best value.

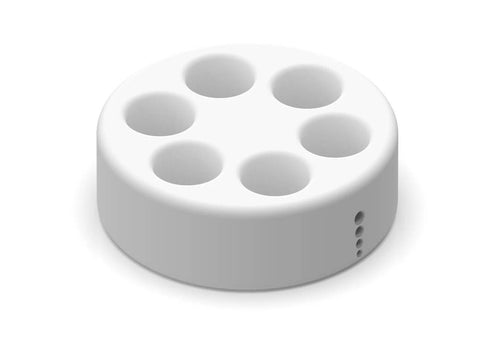

This PTFE-coated Aluminum Block provides excellent thermal conductivity, while having chemically resistive surface (resistant to strong acid, strong alkali, aqua regain and various organic solvents). It provides a dry bath heating conditions to Electrosynthesis Reactors from series either A, B, C or D.

Application Note:

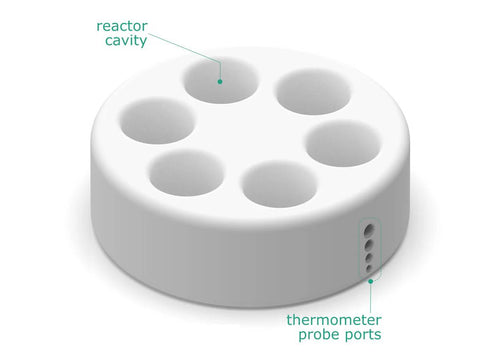

This PTFE-coated Aluminum Block should be placed on a hot-plate or a hot-plate magnetic stirrer. The block has pre-drilled holes for a thermometer probe. Each of those holes is 120 mm deep and can accommodate probes with diameter of 2, 3, 4 and 5 mm.

Specification:

Approx. weight: 1.25 kg (6 cavities), 1.33 kg (5 cavities),  1.41 kg (4 cavities),  1.50 kg (3 cavities),  1.58 kg (2 cavities) and  1.66 kg (1 cavity)

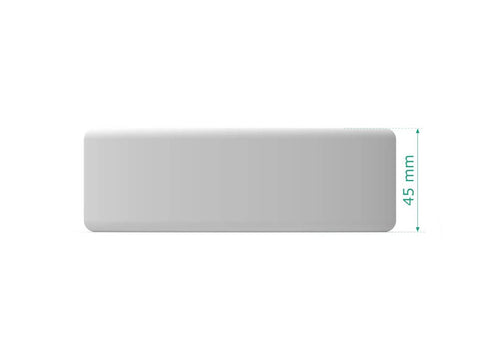

Height: 45 mm
Cavity depth: 40 mm
Cavity diameter: 31 mm (A- and D-series), 27 mm (B-series) and 21 mm (C-series)

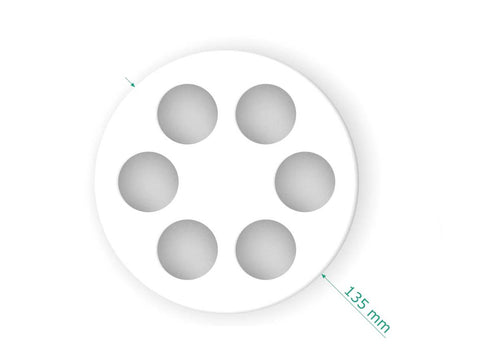

Block diameter: 135 mm
Thermometer hole diameter: 2.5 mm, 3.5 mm, 4.5 mm and 5.5 mm
Maximum operational temperature: 260 deg C
Minimum operational temperature: -70 deg C

Product Includes:

1 x PTFE-coated Aluminum Block
