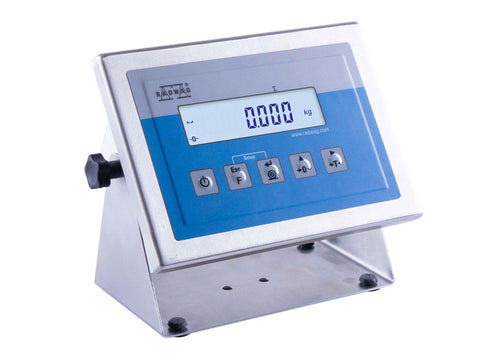

RADWAG PUE C32 Weighing Terminal

RADWAG PUE C32 Weighing Terminal

SKU: WX-008-0141

  • $ 52095



 RADWAG PUE C32 Weighing Terminal

Buy RADWAG products from MSE Supplies at the best value.

Sku #

WX-008-0141

WX-008-0142

Model #

PUE C32

PUE C32.A (with accumulator)

Protection class

IP 43

IP 43

Housing

ABS plastic

ABS plastic



The Housing and the Display

The housing is made of durable ABS plastic. The terminal has been equipped with 5’’ colour display ensuring perfect readability, and 22-key membrane keypad featuring programmable function keys. The terminal offers customized menu, with this all your personal needs can be met which makes operation even more intuitive and simple.

Battery as an Optional Power Source

Use of the optional battery enables the PUE C32 terminal to operate even when there is either no or unstable power supply.

Communication Interfaces

Standard terminal has been equipped with RS 232, USB-A, USB-B, 4×IN, 4×OUT and Ethernet interfaces which facilitate both cooperation with peripherals such as printer or computer and data exchange using USB drives.
The terminal connects with wireless networks due to a Wireless Connection module, which comes standard.

Data Management

PUE C32 information system is based on 7 databases, each of different maximum record quantity::

  • Products - 15 000
  • Operators - 500
  • Formulations - 500
  • Packaging - 500
  • Customers - 500
  • Labels - 500
  • Universal variables – 100

Databases can be imported and exported via USB flash drives.

ALIBI Memory

ALIBI memory provides data safety and allows saving up to 500 thousand weighing records.This guaranties continuous storing of data over a long period of time.

Datasheet

Physical parameters

Display

5” graphic colour

Device dimensions

206×140×71 mm

Packaging dimensions

300×250×130 mm

Net weight

0.7 kg

Gross weight

0.94 kg

Construction

Protection class

IP 43

Housing

ABS plastic

Communication interface

Communication interface

2×RS232, USB-A, USB-B, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®

Electrical parameters

Power supply

100 – 240 V AC 50/60 Hz

Optional power supply

internal rechargeable battery

Operation time on batteries

operation time up to 5 h

Metrological parameters

Maximum quantity of verification units

6000 e

Minimum volatge per verification unit

0.4 µV

Maximum voltage per verification unit

3.25 µV

Minimum load cell impedance

50 Ω

Maximum load cell impedance

1200 Ω

Load cell excitation voltage

5V DC

Maximum increase of signal

39 mV

Connection of load cells

4 or 6 wires + shield

Environmental conditions

Operating temperature

-10 — +40 °C

Multiple range

 YES

Features of use

Max number of platforms

1



*The power supply can be connected to the socket on the back of the balance housing or to the terminal.
