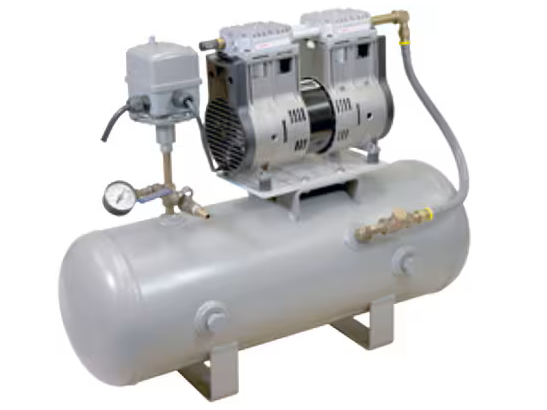

Welch 10 Gal Tank Mounted WOB-L Vacuum System, 7.1 CFM

Welch 10 Gal Tank Mounted WOB-L Vacuum System, 7.1 CFM

SKU: 8150B-30

  • $ 3,22195



Welch 10 Gal Tank Mounted WOB-L Vacuum System, 7.1 CFM

Buy Welch vacuum pumps from MSE Supplies at the best value.

Operate your industrial vacuum process with instant response. This 10 gallon vacuum tank system is perfect for pick-and-place, vacuum forming, and other light industrial vacuum operations. Mounted WOB-L® piston provides powerful vacuum (to 27.6" Hg). Pump moisture resistance is far superior to graphite vane pump designs. System includes ASME code receiver, vacuum gauge, exhaust muffler, and manual shut off valve. The 3-position switch enables on/off continuous duty of automatic on/off operation at a set vacuum level. 115V, 6-ft power cord, shipped fully assembled.

Product Features:

•Vacuum pump mounted on a 10 gal (38 L) tank

•Vacuum reservoir for instant vacuum availability

•Includes ASME code receiver, vacuum gauge, exhaust muffler, and manual shutoff valve

•WOB-L pump is tolerant of line moisture

•Three position switch allows for on/off continuous duty

MSE Supplies is an authorized distributor of Welch vacuum pumps.

Technical Data

SKU#

8150B-30(115V, 60Hz )

Welch Model 8150
Free Air Displacement @60Hz, CFM 7.1
Ult. Vac. Pressure, Torr.

60

Weight, lbs. 64
Overall Dimensions LxWxH, mm.
813x432x681
