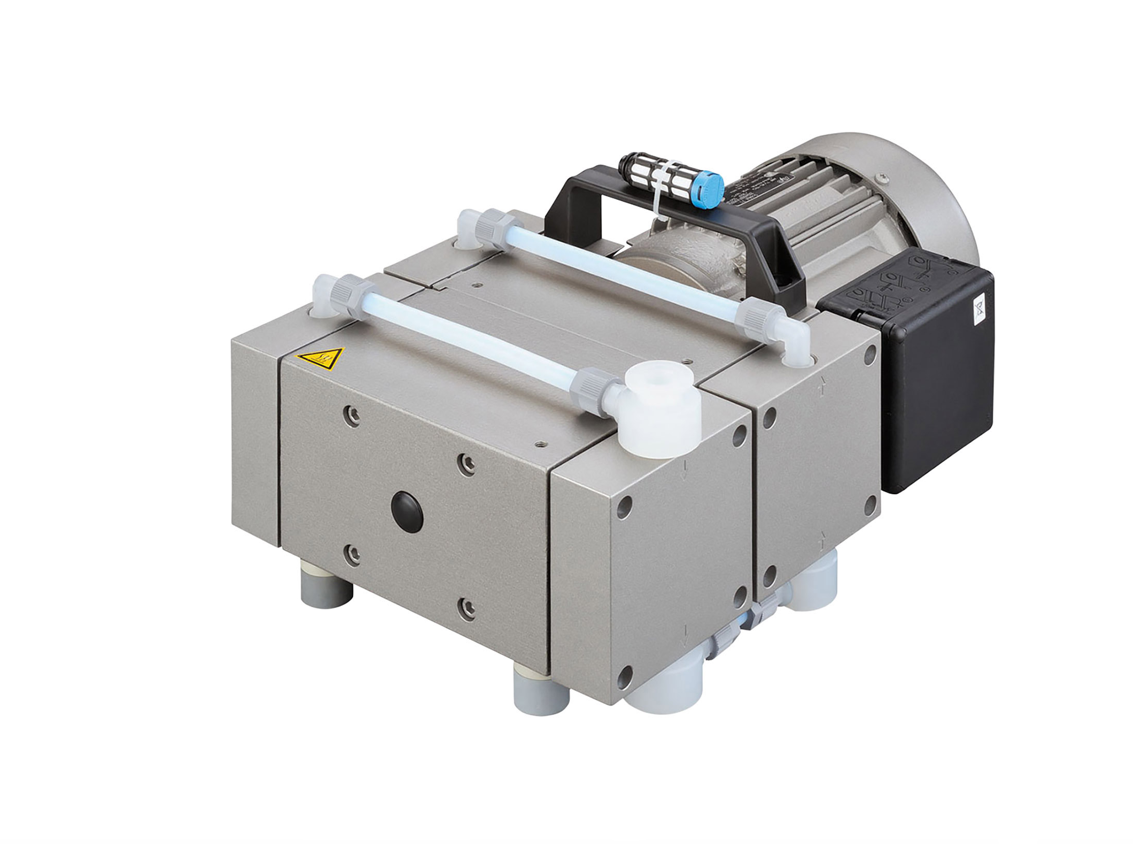

Welch 2054 High Capacity 3.4 cfm Chemical Duty PTFE Diaphragm Vacuum Pump
SKU: 2054B-01
Buy Welch vacuum pumps from MSE Supplies at the best value.
Welch 2054 High Capacity 3.4 cfm Chemical Duty PTFE Diaphragm Vacuum Pump can be used for vacuum degassing, vacuum impregnation, rotary evaporators, vacuum ovens, vacuum filtering, solid phase extraction, falling film evaporators, rough vacuum distillations, gas recycling, leak detection, gas sampling and many other laboratory and industrial applications.
Constructed with solid PTFE heads, PTFE diaphragms, gas ballast valves and utilizing fluorinated plastics and PTFE on all wetted surfaces, these dry vacuum pumps are designed to meet your ever-challenging chemical duty laboratory needs.
It has unique features such as:
• High flow / Deep Vacuum
• Long product life
• Low noise level
• Simple Maintenance
• Supplied with TEFC motors
• Oil-free operation
MSE Supplies is an authorized distributor of Welch vacuum pumps.
Additional information found here.
SKU# | 2054B-01 |
Welch Model | 2054 |
Free Air Displacement @60Hz, cfm (L/min) | 3.4 (100) |
Maximum Vacuum, in. Hg | 29.7 |
Ult. Vac. Pressure, Torr | 6 |
Motor Horsepower, HP (watts) | 1/2 (230) |
Head Material | PTFE |
Diaphragm | Flat PTFE-coated |
Valves | PEEK |
Advanced Vapor Management (AVM) | No |
Gas Ballast | Yes |
Tubing Needed, I.D. in. (Inlet/Exhaust) | w 1/4" in. hose connector |
Intake (Exhaust) Thread NPT | NW16 - 1/4" NPT |
Weight, lbs. | 40.3 |
Overall Dimensions LxWxH in. | 9 x 15 x 7 |
Power | 115V, 1ph 50/60Hz |
Ship Weight, lbs | 48.5 |
