Welch MPC 303 Z Vacuum Pump
SKU: 415722

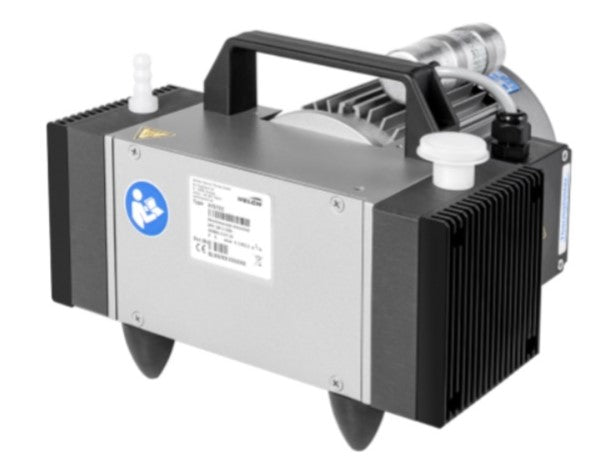

Welch MPC 303 Z Vacuum Pump
Buy Welch vacuum pumps from MSE Supplies at the best value.
Vacuum pump Welch MPC 303 Z, chemically resistant, no inlet trap or condenser, <8mbar ultimate vacuum, 36l/min flow rate, oil free, suitable Use for vacuum filtration, vacuum distillation, vacuum drying, compressing neutral and aggressive gases and vapours according to the resistance of the indicated materials technology applications
Technical Data
| Parameter | Unit | Data |
| SKU # | NA | 415722 |
| Model # | NA | MPC 303 Z |

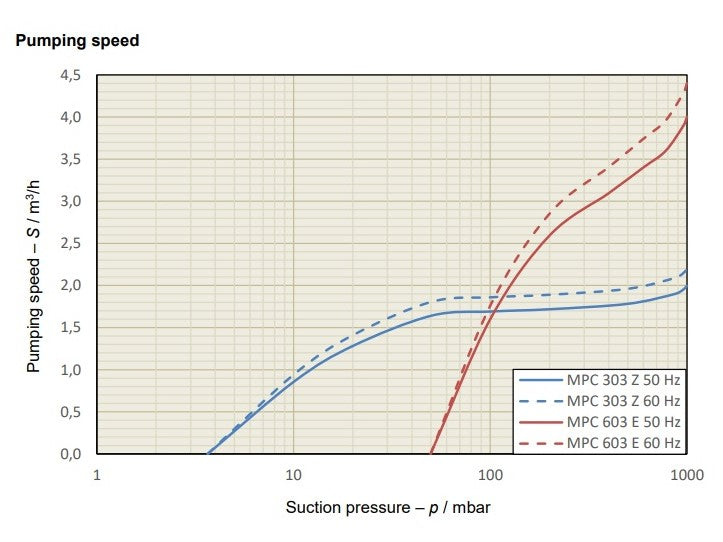

| Pumping speed1 (50/60 Hz) | m3/h | 2.0 / 2.2 |
| Ultimate pressure1 (base pressure) with gas ballast | mbar |
≤ 5.0 ≤ 8.0 |
| Inlet/exhaust pressure (max.) | mbar | ≤ 1100 |
| Protection dregree2 | - | IP54/40 |
| Sound pressure level3 | db (A) | 44 |
| Weight (net/gross) | kg | 11.2 / 13.0 |
| Rated voltage | V | 230 (1~) |
| Rated frequency | Hz | 50 / 60 |
| Rated current (50/60 Hz) | A | 0.9 / 1.3 |
| Operating temperature range | °C | +10...+40 |
| Media temperature (max.) | °C | ≤ +40 |
| Insertion height (max.) | MSL | ≤ 1000 |
| Storage humidity | RH | < 90% |
Background
| Type: | Diaphragm |
| Chemically resistant: | Yes |
| Inlet trap: | No |
| Condenser: | No |
| Ultimate vacuum: | 8mbar |
| Flow rate at atmospheric pressure: | 36l/min |
| ATEX compliant: | No |
| Integral gas ballast valves: | Yes |
| Oil free: | Yes |
| Wireless remote control: | No |
| Suitable for rotary evaporators?: | No |
| Suitable for filtration?: | Yes |
| Suitable for filtration distribution?: | Yes |
| Suitable for distillation?: | Yes |
| Suitable for dessication?: | No |
| Suitable for use with larger volumes of solvents: | No |
| Suitable for aggressive vapours?: | Yes |
| Suitable for vacuum ovens?: | No |
| Suitable for centrifugal concentrators?: | No |
| Suitable for gel dryers?: | No |
| Suitable for aspiration?: | No |
| Suitable for freeze dryers?: | No |
| Suitable for Schlenk line / vacuum manifolds?: | No |
| Suitable for glove boxes?: | No |
| Suitable for solid phase extraction: | No |
| Data logger included?: | No |
