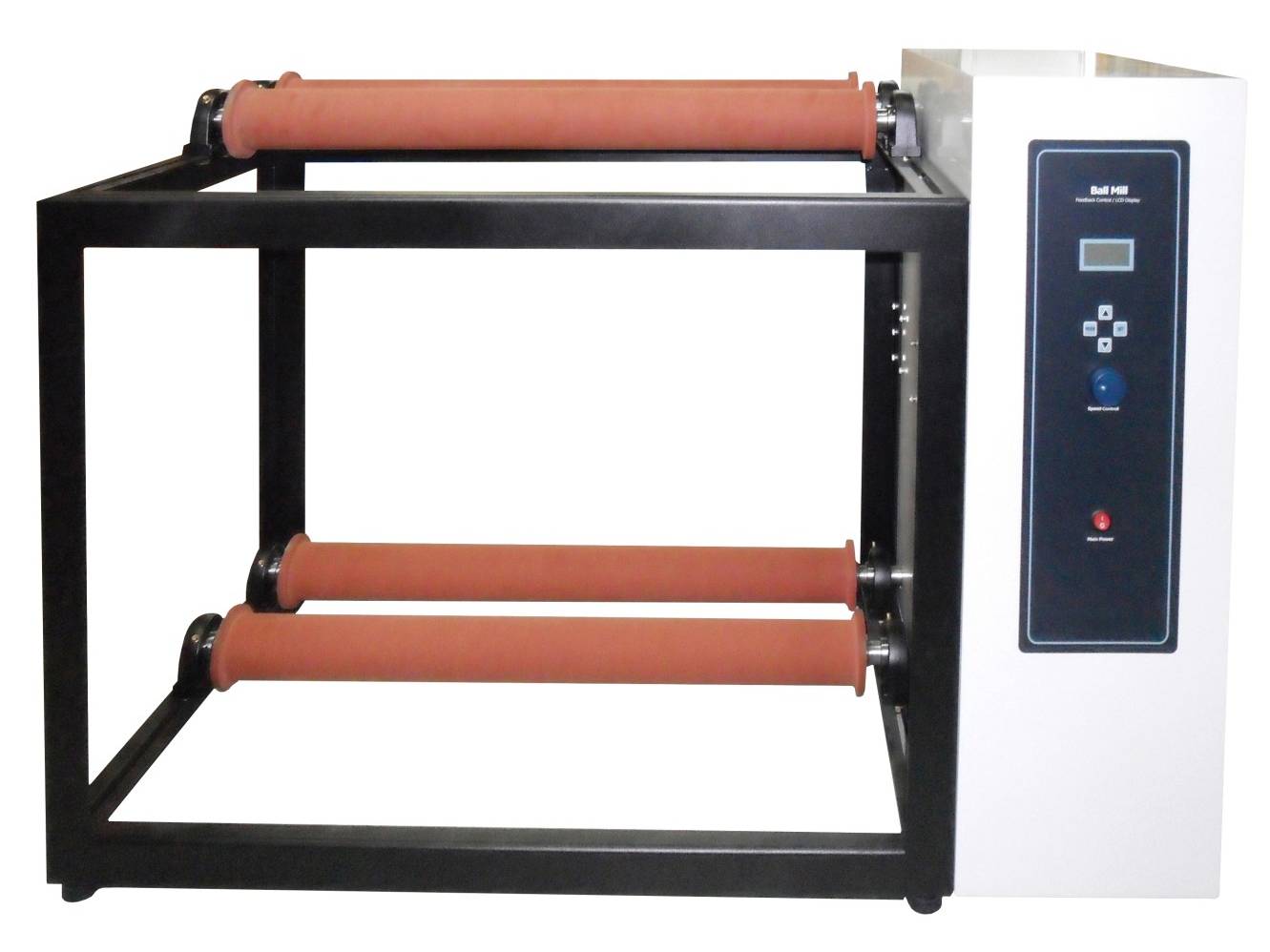

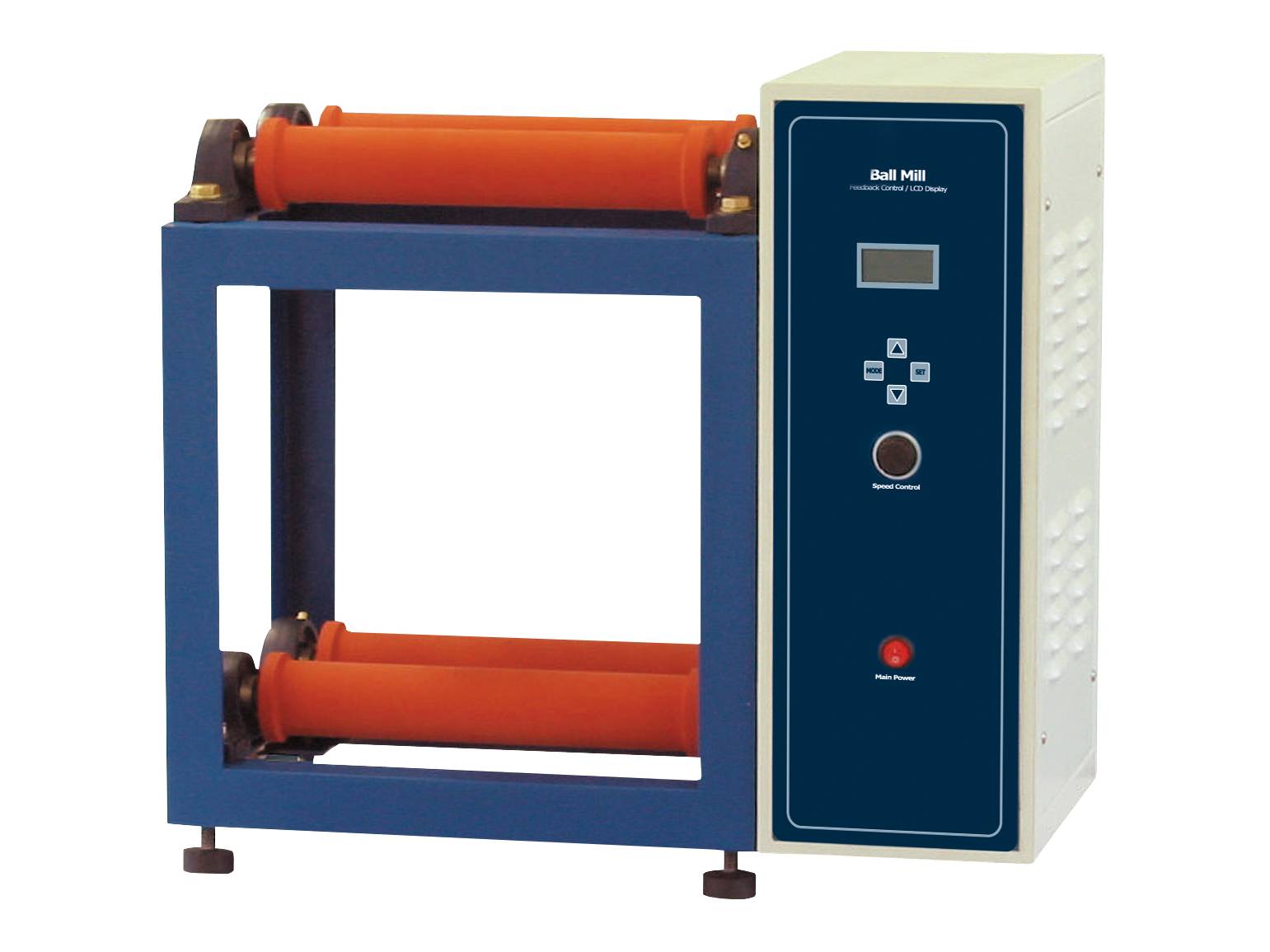

Witeg Ball Mill, BML 5 - 600 RPM, 2 or 6 Places
SKU: DH.WBM05002
Witeg Ball Mill, BML 5 - 600 RPM, 2 or 6 Places
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Grinding and mixing crystalline chemicals, inks, paints, pigments, plants, racks, and soils
Features:
- Antistatic rubber roller: keeps jars/pots centered
- Ergonomic and compact design
- NBR roller with pot guide ring
- Programmable options: 10 steps and 6 programs
- Storage function for the set values of temperature and timer
- Soundproof cabinet for safety and minimum noise (optional)
- Backlight LCD display for RPM and timer status
- CE certified and unique serial number for tracing
Safety mechanism:
- Overload protection for motor
Controller:
- Programmable digital feedback controller with Jog-Shuttle switch (turn + push)
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
|
Width (Outer) |
620 mm |
|
Height (outer) |
515 mm |
|
Ideal for |
Grinding/mixing crystalline chemicals, inks, paints, pigments, plants, racks, and soils |
|
Weight |
52 kg |
|
Places |
Up to 2 pots |
|
Max. load |
30 kg |
|
Length (outer) |
300 mm, roller 300 mm |
|
Diameter (outer) |
roller Ø50 mm |
|
Speed |
50 - 600 rpm, ±5 rpm |
|
Motor rating |
40 W geared DC motor (5:1 ratio) |
|
Packing size |
760 x 460 x 700 mm |
Comparison
| SKU | Model | Width (Outer) | Length (outer) | Height (outer) | Diameter (outer) | Ideal for | Speed | Weight | Motor rating | Places | Packing size | Max. load |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WBM05002 | BML-2 230 V | 620 mm | 300 mm, roller 300 mm | 515 mm | roller Ø50 mm | Grinding/mixing crystalline chemicals, inks, paints, pigments, plants, racks, and soils | 50 - 600 rpm, ±5 rpm | 52 kg | 40 W geared DC motor (5:1 ratio) | Up to 2 pots | 760 x 460 x 700 mm | 30 kg |
| DH.WBM05006 | BML-6 230 V | 1200 mm | 500 mm, roller 800 mm | 795 mm | roller Ø70 mm | Grinding/mixing crystalline chemicals, inks, paints, pigments, plants, racks, and soils | 50 - 600 rpm, ±5 rpm | 115 kg | 100 W geared DC motor (5:1 ratio) | Up to 6 pots | 1300 x 620 x 1010 mm | 60 kg |
