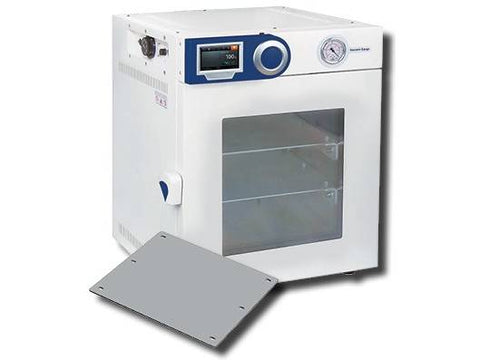

Witeg Drying Oven SWOV Vacuum Oven SmartLAb 19/30/70 Liter, 200°C, 10-750 MMHg

Witeg Drying Oven SWOV Vacuum Oven SmartLAb 19/30/70 Liter, 200°C, 10-750 MMHg

SKU: DH.SWOV03020

  • $ 5,77995

Witeg Drying Oven SWOV Vacuum Oven SmartLAb 19/30/70 Liter, 200°C, 10-750 MMHg

Buy Witeg products from MSE Supplies at the best value.

Ideal for

  • Drying, baking, conditioning, curing, out-glassing solids and liquids, vacuum embedding, moisture testing, plating and aging test

Features

  • Very easy and convenient for vacuuming and venting, easy to read vacuum gauge
  • High quality door sealing: high temperature grade silicone molded gasket
  • Superior uniformity and stability
  • Safety window: tempered safety glass 12T & polycarbonate 5T
  • Compact new body design
  • Stainless steel interior, powder-coated steel body and glass wool insulation
  • 2x aluminium shelves included
  • CE & UL/CUL certified and unique serial number for tracing

Safety mechanism

  • Push alarm service to your smartphone
  • Overheat and over-current protection
  • Sensor error detection and leakage breaker

Controller

  • Smart-Lab™ controller with 4? full touch screen TFT LCD:
    • WiRe™ app service, remote control system
    • Variable program settings
    • Self-diagnostic function
    • Automatic data recording
    • Data transfer to PC by USB memory
    • Internet connectivity with WiFi

Recommended vacuum pump for 18.6l- and 30l-oven: Rocker 810
Recommended vacuum pump for 70l-oven: Rocker 800/Rocker 811

Drying oven SWOV, 2 aluminium shelves, power cable, instruction manual

Features

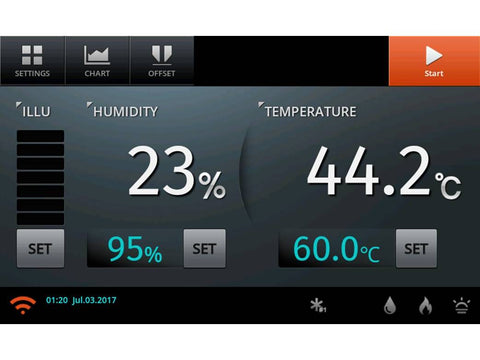

SMART-LabTM Controller

  • Full touch screen TFT LCD:
  • WiRe™ app service, remote control system
  • Variable program settings
  • Self-diagnosis function
  • Automatic data recording and password protection
  • data transfer to PC by USB memory
  • digital calibration (offset function)
  • Min-/max-temperature memory & program function
  • Push-alarm service to smartphone or tablet PC

Temperature uniformity successfully tested by ASTM standards: All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product: All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

Technical data

Version with Smart-LabTM controller, with vacuum inlet valve size outer Ø10 mm
Length (inner) 290 mm
Width (Outer) 480 mm
Height (outer) 552 mm
Heating time 60 min. to 100°C, 90 min. to 150°C
Weight 48 kg
Heating power 2 x 170 W, 2 x 130 W
Power consumption 600 W
Temperature control resolution Display 1.0°C, control 1.0°C
Temperature fluctuation ±0.5°C at 100°C & 150°C
Packing size 585 x 580 x 795 mm
Width (inner) 265 mm
Height (inner) 265 mm
Length (outer) 475 mm
Ideal for Drying, baking, conditioning, curing, out-glassing solids and liquids, vacuum embedding, moisture testing, plating and aging test
Shelves 2 aluminium shelves included, height between shelves 87 mm
Weight with packaging 59 kg
Capacity 18.6 l
Temperature variation ±2.0°C at 100°C, ±3.0°C at 150°C
Temperature range Room temperature +5°C - 200°C
Vacuum range
 10 - 750 mmHg, 0.63 mbar, 0.39 mbar/h
Controller  Temperature sensor PT100


Comparison

SKU  Model Version Width (inner) Length (inner) Height (inner) Width (Outer) Length (outer) Height (outer) Ideal for
DH.SWOV03020 SWOV-20 230 V with Smart-LabTM controller, with vacuum inlet valve size outer Ø10 mm 265 mm 290 mm 265 mm 480 mm 475 mm 552 mm Drying, baking, conditioning, curing, out-glassing solids and liquids, vacuum embedding, moisture testing, plating and aging test
DH.SWOV03030 SWOV-30 230 V with Smart-LabTM controller, with vacuum inlet valve size outer Ø10 mm 300 mm 330 mm 300 mm 515 mm 515 mm 587 mm Drying, baking, conditioning, curing, out-glassing solids and liquids, vacuum embedding, moisture testing, plating and aging test
DH.SWOV03070 SWOV-70 230 V with Smart-LabTM controller, with vacuum inlet valve size outer Ø10 mm 400 mm 435 mm 400 mm 618 mm 620 mm 687 mm Drying, baking, conditioning, curing, out-glassing solids and liquids, vacuum embedding, moisture testing, plating and aging test



SKU  Capacity Power consumption Temperature variation Temperature control resolution Temperature range Temperature fluctuation Vacuum range Packing size Controller
DH.SWOV03020 18.6 l 600 W ±2.0°C at 100°C, ±3.0°C at 150°C Display 1.0°C, control 1.0°C Room temperature +5°C - 200°C ±0.5°C at 100°C & 150°C 10 - 750 mmHg, 0.63 mbar, 0.39 mbar/h 585 x 580 x 795 mm Temperature sensor PT100
DH.SWOV03030 30 l 600 W ±2.0°C at 100°C, ±3.0°C at 150°C Display 1.0°C, control 1.0°C Room temperature +5°C - 200°C ±0.5°C at 100°C & 150°C 10 - 750 mmHg, 0.63 mbar, 0.39 mbar/h 620 x 620 x 830 mm Temperature sensor PT100
DH.SWOV03070 70 l 1600 W ±2.5°C at 100°C, ±3.5°C at 150°C Display 1.0°C, control 1.0°C Room temperature +5°C - 200°C ±0.5°C at 100°C & 150°C 10 - 750 mmHg, 0.63 mbar, 0.39 mbar/h 725 x 720 x 930 mm Temperature sensor PT100



SKU  Heating time Shelves Weight Weight with packaging Heating power
DH.SWOV03020 60 min. to 100°C, 90 min. to 150°C 2 aluminium shelves included, height between shelves 87 mm 48 kg 59 kg 2 x 170 W, 2 x 130 W
DH.SWOV03030 70 min. to 100°C, 100 min. to 150°C 2 aluminium shelves included, height between shelves 98 mm 55 kg 67 kg 2 x 170 W, 2 x 130 W
DH.SWOV03070 80 min. to 100°C, 100 min. to 150°C 2 aluminium shelves included, height between shelves 133 mm 85 kg 100 kg 2 x 350 W, 2 x 450 W
