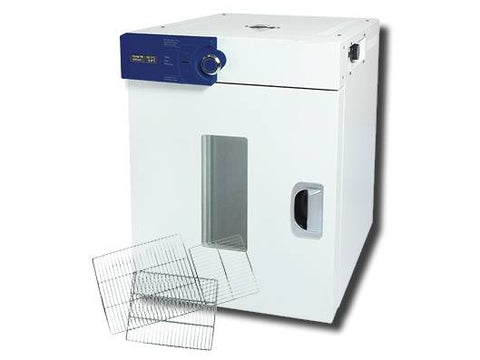

Witeg Drying Oven WOF Forced-Air 50/105/155 Liter 250°C

Witeg Drying Oven WOF Forced-Air 50/105/155 Liter 250°C

SKU: DH.WOF05050

  • $ 2,82595

Witeg Drying Oven WOF Forced-Air 50/105/155 Liter 250°C

Buy Witeg products from MSE Supplies at the best value.

Description

Ideal for:

  • Drying, baking, conditioning, curing, pre-heating and aging

Features:

  • Optimized air flow by gravity-air mechanism
  • 3-side heating ensures temperature uniformity and accuracy
  • Ambient +5°C to 250°C range, fluctuation of ±0.3°C at 100°C

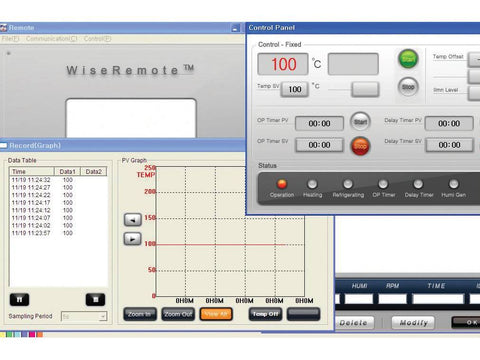

  • RS232C interface for monitoring and controlling (WireRemote)
  • Stainless steel chamber
  • Powder-coated steel body and glass wool insulation
  • Available with viewing window (SWON-W models)
  • New compact body design
  • Storage function for set values of temperature and timer
  • 2x stainless steel wire shelves included
  • Backlight LCD display
  • CE & UL/CUL certified and unique serial number for tracing

Safety mechanism:

  • Locking mode
  • Overheat and over-current protection
  • Sensor error detection

Controller:

  • Jog-Dial controller (PID) with 2-way knob (turn and push), digital LCD with backlight, and two durable setting buttons

Features

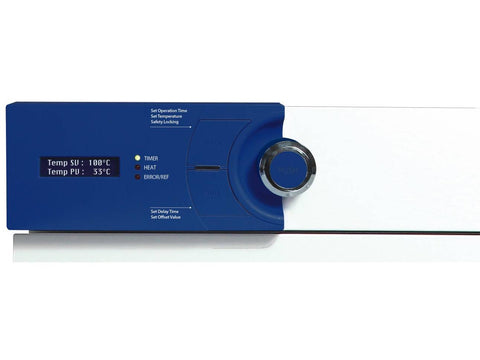

Jog-Dial controller:

  • ergonomic design for easy and convenient usage
  • 2-way Jog-Dial knob provides simple setting of required temperature and time
  • high quality illuminated LCD
  • „MAIN“ and „SUB“ button to access all menus

Temperature uniformity successfully tested by ASTM standards: All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product: All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

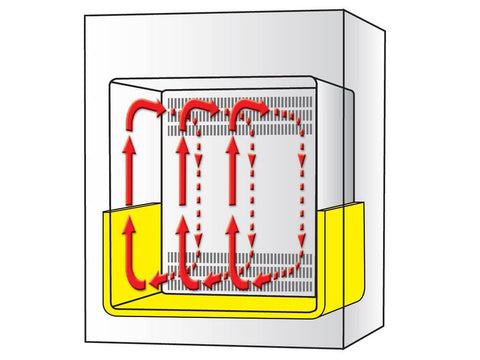

Forced-air: The ovens forced-air flow is established by a very effective fan installed in the rear of the chamber sucking air from the chamber into the pre-heating zone where heating elements on the bottom, left and right side heat up air. The pre-heated air is uniformly and quickly provided into the chamber by a special side and bottom structure.

Devices with 230 V power supply can also be supplied with 120 V on request.

Technical data

Width (inner) 370 mm
Height (inner) 420 mm
Length (outer) 647 mm
Ideal for Drying, baking, conditioning, curing, pre-heating and aging
Shelves 2 stainless steel wire shelves included, load per shelf 16 kg
Weight with packaging 59 kg
Capacity 50 l
Holes 1 ventilation hole with stainless steel cap
Temperature variation ±1°C at 100°C, 1.8°C at 150°C
Temperature range Room temperature +5°C - 250°C
Packing size 622 x 754 x 807 mm
Controller Temperature sensor PT100
Length (inner) 345 mm
Width (Outer) 518 mm
Height (outer) 724 mm
Heating time 25 min. to 100°C, 45 min. to 150°C
Weight 44 kg
Heating power 650 W
Hole diameter Ø35 mm
Power consumption 674 W
Temperature control resolution Control ±0.1°C
Temperature fluctuation ±0.3°C at 100°C, ±0.5°C at 150°C
Recovery time 8 min. to 100°C, 8 min. to 150°C



Comparison

SKU Model Version Width (inner) Length (inner) Height (inner) Width (Outer) Length (outer) Height (outer) Ideal for Heating time Shelves
DH.WOF05050 WOF-50 230 V 370 mm 345 mm 420 mm 518 mm 647 mm 724 mm Drying, baking, conditioning, curing, pre-heating and aging 25 min. to 100°C, 45 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg
DH.WOF05105 WOF-105 230 V 485 mm 415 mm 535 mm 653 mm 712 mm 882 mm Drying, baking, conditioning, curing, pre-heating and aging 25 min. to 100°C, 40 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg
DH.WOF05155 WOF-155 230 V 550 mm 480 mm 600 mm 718 mm 777 mm 947 mm Drying, baking, conditioning, curing, pre-heating and aging 25 min. to 100°C, 40 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg
DH.WOF07105 WOF-W105 230 V with viewing window 485 mm 415 mm 535 mm 653 mm 712 mm 882 mm Drying, baking, conditioning, curing, pre-heating and aging 25 min. to 100°C, 40 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg
DH.WOF07155 WOF-W155 230 V with viewing window 550 mm 480 mm 600 mm 718 mm 777 mm 947 mm Drying, baking, conditioning, curing, pre-heating and aging 25 min. to 100°C, 40 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg



SKU Power consumption Temperature variation Temperature control resolution Temperature range Temperature fluctuation Packing size Recovery time Controller
DH.WOF05050 674 W ±1°C at 100°C, 1.8°C at 150°C Control ±0.1°C Room temperature +5°C - 250°C ±0.3°C at 100°C, ±0.5°C at 150°C 622 x 754 x 807 mm 8 min. to 100°C, 8 min. to 150°C Temperature sensor PT100
DH.WOF05105 1390 W ±1°C at 100°C, 1.8°C at 150°C Control ±0.1°C Room temperature +5°C - 250°C ±0.3°C at 100°C, ±0.5°C at 150°C 743 x 819 x 1068 mm 6 min. to 100°C, 6 min. to 150°C Temperature sensor PT100
DH.WOF05155 1566 W ±1°C at 100°C. ±2°C at 150°C Control ±0.1°C Room temperature +5°C - 250°C ±0.3°C at 100°C, ±0.5°C at 150°C 808 x 884 x 1133 mm 6 min. to 100°C, 6 min. to 150°C Temperature sensor PT100
DH.WOF07105 1390 W ±1°C at 100°C, 1.8°C at 150°C Control ±0.1°C Room temperature +5°C - 250°C ±0.3°C at 100°C, ±0.5°C at 150°C 743 x 819 x 1068 mm 6 min. to 100°C, 6 min. to 150°C Temperature sensor PT100
DH.WOF07155 1566 W ±1°C at 100°C. ±2°C at 150°C Control ±0.1°C Room temperature +5°C - 250°C ±0.3°C at 100°C, ±0.5°C at 150°C 808 x 884 x 1133 mm 6 min. to 100°C, 6 min. to 150°C Temperature sensor PT100



SKU Hole diameter Holes Weight Weight with packaging Heating power Capacity
DH.WOF05050 Ø35 mm 1 ventilation hole with stainless steel cap 44 kg 59 kg 650 W 50 l
DH.WOF05105 Ø35 mm 2 ventilation holes with stainless steel cap 69 kg 79 kg 1400 W 105 l
DH.WOF05155 Ø35 mm 2 ventilation holes with stainless steel cap 78 kg 92 kg 1600 W 155 l
DH.WOF07105 Ø35 mm 2 ventilation holes with stainless steel cap 69 kg 79 kg 1400 W 105 l
DH.WOF07155 Ø35 mm 2 ventilation holes with stainless steel cap 78 kg 92 kg 1600 W 155 l
