Witeg Drying Oven WON Gravity-Air 32/50/105/155 Liter 230°C

Witeg Drying Oven WON Gravity-Air 32/50/105/155 Liter 230°C

SKU: DH.WON05032

  • $ 2,30695

Witeg Drying Oven WON Gravity-Air 32/50/105/155 Liter 230°C

Buy Witeg products from MSE Supplies at the best value.

Description

Ideal for:

  • Drying, baking, conditioning, curing, pre-heating and aging

Features:

  • Optimized air flow by gravity-air mechanism
  • 3-side heating ensures temperature uniformity and accuracy
  • Ambient +5°C to 230°C range, fluctuation of ±0.5°C at 100°C

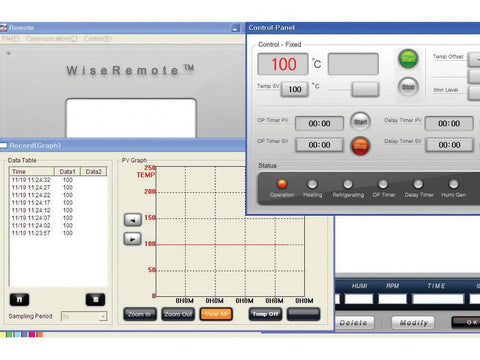

  • RS232C interface for monitoring and controlling (Wire Remote)
  • Stainless steel chamber
  • Powder-coated steel body and glass wool insulation
  • Available with viewing window (WON-W models)
  • New compact body design
  • Storage function for set values of temperature and timer
  • Backlight LCD display
  • 2x stainless steel wire shelves included
  • CE & UL/CUL certified and unique serial number for tracing

Safety mechanism:

  • Locking mode
  • Overheat and over-current protection
  • Sensor error detection

Controller:

  • Jog-Dial controller (PID) with 2-way knob (turn and push), digital LCD with backlight, and two durable setting buttons

Features

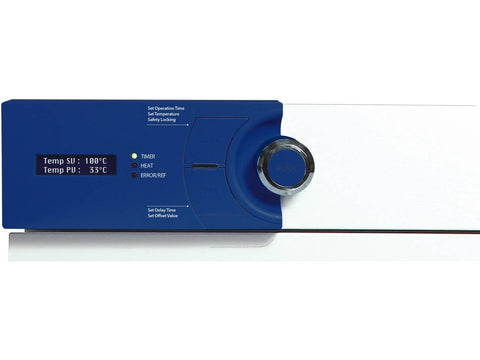

Jog-Dial controller:

  • Ergonomic design for easy and convenient usage
  • 2-way Jog-Dial knob provides simple setting of required temperature and time
  • High quality illuminated LCD
  • „MAIN“ and „SUB“ button to access all menus

Temperature uniformity successfully tested by ASTM standards: All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product: All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

Gravity-air: The ovens gravity-air flow is established by heating up air in a pre-heating zone by heating elements on the bottom, left and right side. The pre-heated air will be restrictively provided into the chamber.

Devices with 230 V power supply can also be supplied with 120 V on request.

Technical data

Width (inner) 310 mm
Height (inner) 360 mm
Length (outer) 557 mm
Ideal for Drying, baking, conditioning, curing, pre-heating and aging
Shelves 2 stainless steel wire shelves included, load per shelf 16 kg
Weight with packaging 43 kg
Capacity 32 l
Holes 1 ventilation hole with stainless steel cap
Temperature variation ±1.2°C at 100°C, ±2.2°C at 150°C
Temperature range Room temperature +5°C - 230°C
Packing size 562 x 664 x 747 mm
Controller Temperature sensor PT100
Length (inner) 290 mm
Width (Outer) 458 mm
Height (outer) 664 mm
Heating time 30 min. to 100°C, 43 min. to 150°C
Weight 36 kg
Heating power 500 W
Hole diameter Ø35 mm
Power consumption 502 W
Temperature control resolution Control ±0.1°C
Temperature fluctuation  ±0.5°C at 100°C, ±0.6°C at 150°C
Recovery time 8 min. to 100°C, 10 min. to 150°C



Comparison

SKU  Model Version Width (inner) Length (inner) Height (inner) Width (Outer) Length (outer) Height (outer) Ideal for Heating time Shelves
DH.WON05032 WON-32 230 V 310 mm 290 mm 360 mm 458 mm 557 mm 664 mm Drying, baking, conditioning, curing, pre-heating and aging 30 min. to 100°C, 43 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg
DH.WON05050 WON-50 230 V 370 mm 350 mm 420 mm 518 mm 647 mm 724 mm Drying, baking, conditioning, curing, pre-heating and aging 30 min. to 100°C, 45 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg
DH.WON05105 WON-105 230 V 485 mm 409 mm 535 mm 653 mm 712 mm 882 mm Drying, baking, conditioning, curing, pre-heating and aging 30 min. to 100°C, 45 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg
DH.WON05155 WON-155 230 V 550 mm 474 mm 600 mm 718 mm 777 mm 947 mm Drying, baking, conditioning, curing, pre-heating and aging 35 min. to 100°C, 50 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg
DH.WON07105 WON-W105 230 V with viewing window 485 mm 409 mm 535 mm 653 mm 712 mm 882 mm Drying, baking, conditioning, curing, pre-heating and aging 30 min. to 100°C, 45 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg
DH.WON07155 WON-W155 230 V with viewing window 550 mm 474 mm 600 mm 718 mm 777 mm 947 mm Drying, baking, conditioning, curing, pre-heating and aging 35 min. to 100°C, 50 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg



SKU  Capacity Hole diameter Holes Power consumption Temperature variation Temperature control resolution Temperature range Temperature fluctuation Packing size
DH.WON05032 32 l Ø35 mm 1 ventilation hole with stainless steel cap 502 W ±1.2°C at 100°C, ±2.2°C at 150°C Control ±0.1°C Room temperature +5°C - 230°C ±0.5°C at 100°C, ±0.6°C at 150°C 562 x 664 x 747 mm
DH.WON05050 50 l Ø35 mm 1 ventilation hole with stainless steel cap 674 W ±1.2°C at 100°C, ±2.2°C at 150°C Control ±0.1°C Room temperature +5°C - 230°C ±0.5°C at 100°C, ±0.6°C at 150°C 622 x 754 x 807 mm
DH.WON05105 105 l Ø35 mm 2 ventilation holes with stainless steel cap 1390 W ±1.2°C at 100°C, ±2.2°C at 150°C Control ±0.1°C Room temperature +5°C - 230°C ±0.5°C at 100°C, ±0.6°C at 150°C 743 x 819 x 1068 mm
DH.WON05155 155 l Ø35 mm 2 ventilation holes with stainless steel cap 1566 W ±1.2°C at 100°C, ±2.2°C at 150°C Control ±0.1°C Room temperature +5°C - 230°C ±0.5°C at 100°C, ±0.8°C at 150°C 808 x 884 x 1133 mm
DH.WON07105 105 l Ø35 mm 2 ventilation holes with stainless steel cap 1390 W ±1.2°C at 100°C, ±2.2°C at 150°C Control ±0.1°C Room temperature +5°C - 230°C ±0.5°C at 100°C, ±0.6°C at 150°C 743 x 819 x 1068 mm
DH.WON07155 155 l Ø35 mm 2 ventilation holes with stainless steel cap 1566 W ±1.2°C at 100°C, ±2.2°C at 150°C Control ±0.1°C Room temperature +5°C - 230°C ±0.5°C at 100°C, ±0.8°C at 150°C 808 x 884 x 1133 mm



SKU  Recovery time Controller Weight Weight with packaging Heating power
DH.WON05032 8 min. to 100°C, 10 min. to 150°C Temperature sensor PT100 36 kg 43 kg 500 W
DH.WON05050 8 min. to 100°C, 10 min. to 150°C Temperature sensor PT100 44 kg 59 kg 650 W
DH.WON05105 12 min. to 100°C, 10 min. to 150°C Temperature sensor PT100 69 kg 79 kg 1400 W
DH.WON05155 12 min. to 100°C, 10 min. to 150°C Temperature sensor PT100 78 kg 92 kg 1600 W
DH.WON07105 12 min. to 100°C, 10 min. to 150°C Temperature sensor PT100 69 kg 79 kg 1400 W
DH.WON07155 12 min. to 100°C, 10 min. to 150°C Temperature sensor PT100 78 kg 92 kg 1600 W
