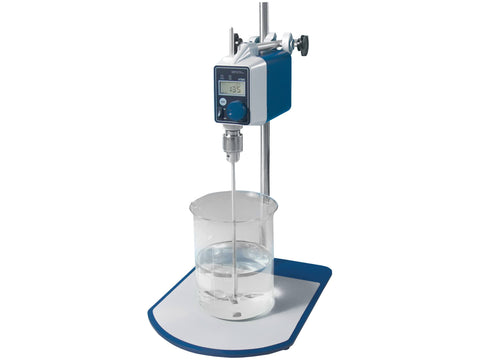

Witeg Overhead Stirrer HT-DX High-Torque 50-1000 rpm 60,000/90,000 mPas digital Internal Controller
SKU: DH.WOS01051
Witeg Overhead Stirrer HT-DX High-Torque 50-1000 rpm 60,000/90,000 mPas digital Internal Controller
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- All mixing applications in the laboratory
- Specialized for light watery solutions up to high-viscosity fluids
Features
- Powerful DC motor for various stirring applications (direct-driven or worm-geared)
- The worm-geared motor ensures high-torque at all recommended viscosities
- Digital feedback controller
- Steady and constant stirring speed

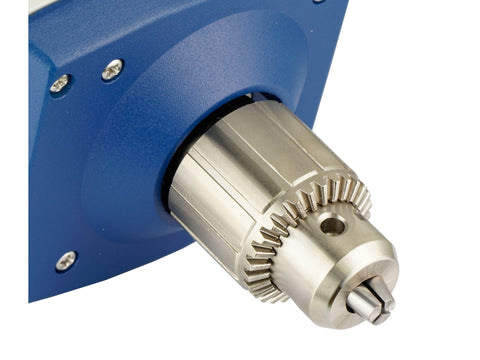

- Chrome-plated stainless steel chuck to prevent corrosion
- Anti-trembling system - the impeller is fixed at two points within the body and chuck
- Adjustable impeller position (height)
- Motor overload and overheat protection for highest safety and long lifetime
- Available as set with impeller, plate stand and clamp
- Many different impellers and plate stands available
- The impeller is fixed at two points within the body to ensure smooth operation without trembling
Features
- Maximal 40 / 60 liter
- 50 - 1,000 rpm
- Maximal viscosity 60,000 / 90,000 mPas
- Worm-geared motor (ratio 3.5:1)
- Digital LCD display
- Smooth start and change of stirring speed while operation
- Storage function for timer and speed
- Impeller height adjustable
- Chrome-plated stainless steel chuck
- CE certified and unique serial number for tracing
Safety mechanism
- Timer 99h 59min with timer-end signal
- Error status
- Locking mode
- Overload protection
- Overheat protection
- Operation LEDs
Controller
- Jog-Shuttle controller with touch-button
Technical data
| Version | High-torque |
| Length (outer) | 180 mm |
| Material | ABS & Aluminium |
| Controller | Digital, integrated |
| Moisture range | 80% RH |
| Weight | 3,5 kg |
| Capacity | max. 40 l |
| Temperature range | Ambient temperature +0°C - 40°C |
| Viscosity (mPas) | max. 60000 mPas |
| Width (Outer) | 90 mm |
| Height (outer) | 130 mm |
| Ideal for | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids |
| Torque | 180 Ncm at chuck |
| Speed | 50 - 1000 rpm |
| Weight with packaging | 5 kg |
| Stirrer diameter | Shafts Ø10 mm or less |
| Packing size | 320 x 300 x h180 mm |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Material | Ideal for | Controller | Torque | Moisture range | Speed | Weight | Weight with packaging | Capacity | Stirrer diameter | Temperature range | Packing size | Viscosity (mPas) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WOS01051 | HT-50DX unit 230 V | High-torque | 90 mm | 180 mm | 130 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids | Digital, integrated | 180 Ncm at chuck | 80% RH | 50 - 1000 rpm | 3,5 kg | 5 kg | max. 40 l | Shafts Ø10 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 60000 mPas |
| DH.WOS01052 | HT-50DX set 230 V | High-torque | 90 mm | 180 mm | 130 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids | Digital, integrated | 180 Ncm at chuck | 80% RH | 50 - 1000 rpm | 3,5 kg | 5 kg | max. 40 l | Shafts Ø10 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 60000 mPas |
| DH.WOS01071 | HT-120DX unit 230 V | High-torque | 90 mm | 210 mm | 130 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids | Digital, integrated | 210 Ncm at chuck | 80% RH | 50 - 1000 rpm | 4 kg | 8 kg | max. 60 l | Shafts Ø10 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 90000 mPas |
| DH.WOS01072 | HT-120DX set 230 V | High-torque | 90 mm | 210 mm | 130 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids | Digital, integrated | 210 Ncm at chuck | 80% RH | 50 - 1000 rpm | 4 kg | 8 kg | max. 60 l | Shafts Ø10 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 90000 mPas |
