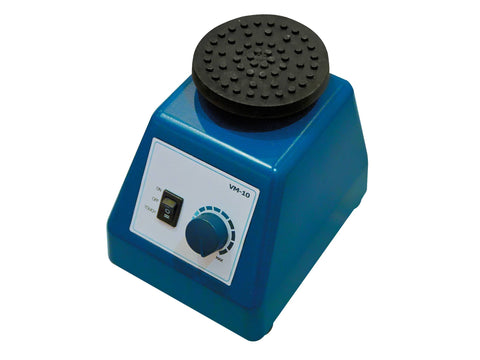

Witeg Vortex-Mixer VM-10 Orbital Motion
SKU: DH.WVM00010
Witeg Vortex-Mixer VM-10 Orbital Motion
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Mixing solutions in test tubes or small flasks with circular, oscillating movement
Features:
- 0 - 3,300 rpm
- Orbital motion

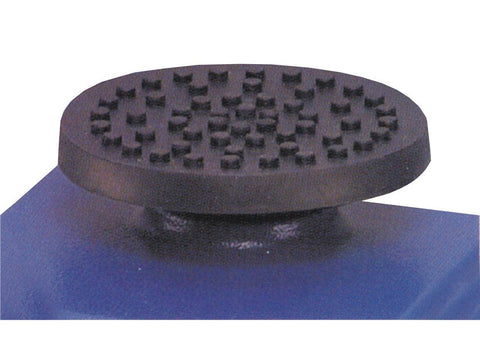

- Inclusive platform head Ø76 mm and pop-off cup head
- 3-position power switch for continuous run or „touch-on“
- Stepless adjustable speed by turning the dial-knob
- Tough metal housing and reliable suction cups ensure stable motion, low noise and safe working
- Various shapes, sizes and materials of the head allow mixing of almost all common tubes and containers
- CE certified and unique serial number for tracing
Controller:
- Analog phase controller
- 3-position switch for start, stop and „touch-on“
- Dial-knob for stepless speed setting
Features
Devices with 230 V power supply can also be supplied with 120 V on request
Technical data
|
Width (Outer) |
160 mm |
|
Height (outer) |
145 mm |
|
Ideal for |
Mixing solutions in test tubes or small flasks with circular, oscillating movement |
|
Speed |
0-3300 rpm |
|
Weight with packaging |
4 kg |
|
Packing size |
260 x 200 x h220 mm |
|
Max. load |
5 kg |
|
Length (outer) |
128 mm |
|
Material |
Aluminium die-casting with powder-coating |
|
Controller |
Analog |
|
Weight |
3 kg |
|
Shaking motion |
Orbital motion |
|
Accessories |
included pop-off cup head and Ø76 mm platform |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Material | Ideal for | Controller |
| DH.WVM00010 | VM-10 230 V | 160 mm | 128 mm | 145 mm | Aluminium die-casting with powder-coating | Mixing solutions in test tubes or small flasks with circular, oscillating movement | Analog | |

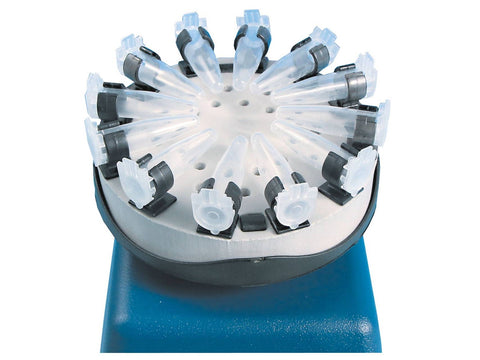

| DH.WVM00310 | PM310 | Microtube platform head | 160 mm | 128 mm | 145 mm | Aluminium die-casting with powder-coating | 0.5 - 2.0 ml Microtube platform head | Analog |
| SKU | Speed | Weight | Weight with packaging | Shaking motion | Packing size | Accessories | Max. load |
| DH.WVM00010 | 0-3300 rpm | 3 kg | 4 kg | Orbital motion | 260 x 200 x h220 mm | included pop-off cup head and Ø76 mm platform | 5 kg |
| DH.WVM00310 | 0-3300 rpm | 3 kg | 4 kg | Orbital motion | 260 x 200 x h220 mm | included pop-off cup head and Ø76 mm platform | 5 kg |
