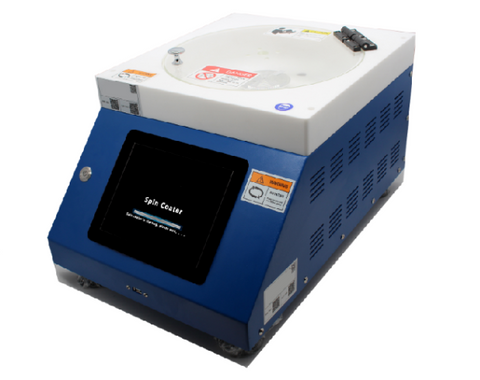

Benchtop High-Speed Spin Coater (12,000 rpm ) Touch Screen with Program Control, Sunken Polytetrafluoroethylene PTFE Inner Cavity& Vacuum Pump, 3 Vacuum Chucks
SKU: BR0381
Product details:
MSE Supplies offers a benchtop high-speed and easy-to-use spin coater, which is designed for precise and uniform deposition of thin films and coatings. Its rugged, vibration-free and portable design makes it a versatile tool for any high-quality research facility. A two-stage spin process allows dispensing at low speed and homogenizing the coating at high speed. It is widely used by our customer to deposit metal oxide thin films, polymer coatings and metal organic thin films.

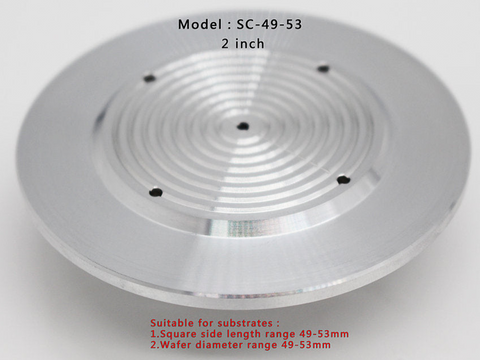

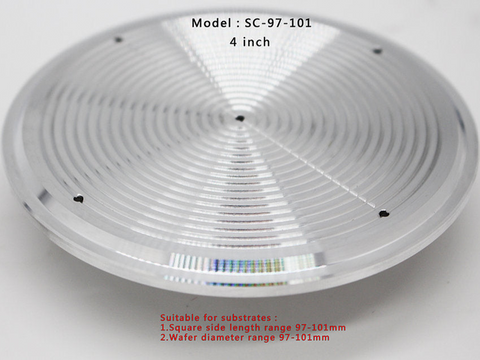

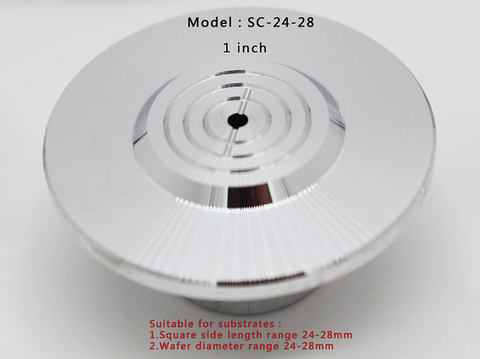

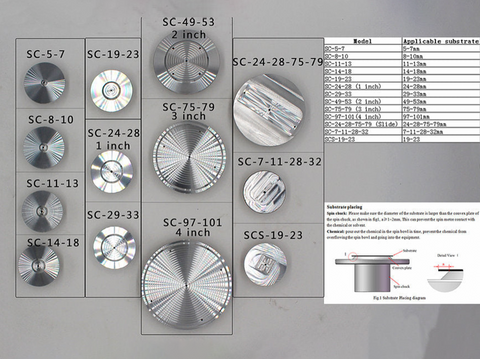

Three standard vacuum chucks (1", 2" and 4") are complimentary offered by MSE Supplies. Please contact us if you need other sized vacuum chucks.
Maximum support for 8 inches, maximum speed of 12,000, touch screen with program control, sunken polytetrafluoroethylene PTFE inner cavity
The product figure is for reference only. The actual product may look different based on the product configuration.
Specifications:
| SKU# |
BR0381 for 110V pump BR0381B for 220V pump |
| Power | AC 100-250V |
| Substrate Size | 5-200mm |
| Spin Speed | 1-12000rpm |
| Spin Coating Uniformity | ±1% |
| Pumping Speed | ≥60L/min |
| Each Time | 0-10000min |
| Motor Speed Stability | ±0.1% |
| Dimensions | 340x550x250mm |
| Weight | 19kg including the pump |
| Warranty | Limited 1 year warranty. Lifetime technical support. |
