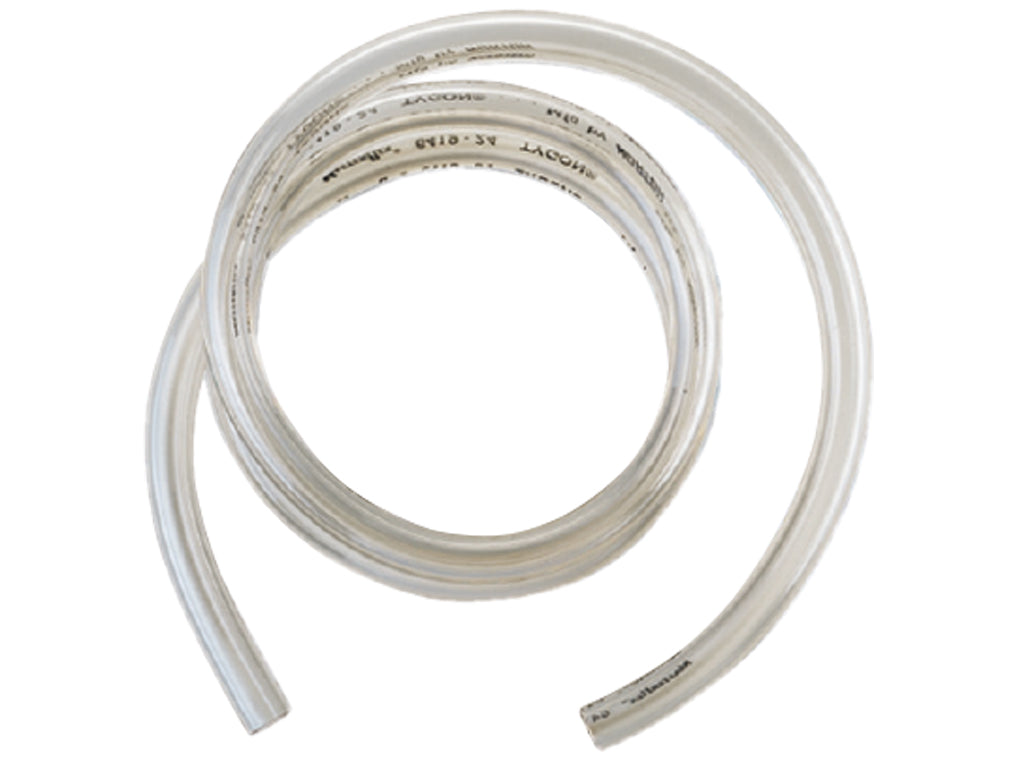

Heidolph Peristaltic Pump Tubing: Tygon 2001 (Food) (ID 6.3mm, OD 11.3mm, WT 2.5mm)
SKU: 036304340
Heidolph Peristaltic Pump Tubing: Tygon 2001 (Food) (ID 6.3mm, OD 11.3mm, WT 2.5mm)
For Single- and Multi-Channel use (not suitable for use with Cassette small)
- Application: Food industry, well suited to products with high fat content
- Features:
- Extremely chemical-resistant | e. g. appropriate for the use of
- polar solvents
- Plasticizer and oil-free
- Superior flex life in peristaltic pumps
- Translucent to ease visual inspection
- Outstanding flexibility
- Material: Thermoplastic tube, transparent
- Complies with the standards: USP Class VI, FDA (21 CFR 177.2600)
- and GLP
- Temperature range: -78 to +71 °C
- Sterilization: Can be autoclaved for 30 min at 1 bar, sterilized by irradiation or with ethylene oxide
Used with
- Acids: excellent
- Lyes: excellent
- Solvents: good
- Pressure: good
- Vacuum: good
- Viscous media: good
- Sterile media: good
Shortcut Description
- wt: Wall thickness
- id: Inner diameter
- od: Outer diameter
Product Parameters
| Length | 1 meter |
| Inner diameter | 6.4 mm |
| Outer diameter | 11.3 mm |
| Wall thickness (wt) | 2.5 mm |
| Max. Pressure (continuous / short time) | 0.8 / 1.8 bar |
| Suction height | 8.8 mH2O |
| SP quick Advantage 06 / Precision 06 (min/max) | 85 – 2,248 ml/min |
| SP quick Value 06 (min/max) | 180 – 2,411 ml/min |
| SP quick Advantage 01 / Precision 01 (min/max) | 18 – 435 ml/min |
| SP quick Value 01 (min/max) | 38 – 454 ml/min |
| SP standard/vario Advantage 06 / Precision 06 (min/max) | 139 – 3,821 ml/min |
| SP standard/vario Value 06 (min/max) | 313 – 3,782 ml/min |
| SP standard/vario Advantage 01 / Precision 01 (min/max) | 28 – 769 ml/min |
| SP standard/vario Value 01 (min/max) | 68 – 773 ml/min |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 12 - Cassette small (min/max) | not suitable |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 4 - Cassette small (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 12 - Cassette small (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 4 - Cassette small (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 8 - Cassette medium (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 8 - Cassette large (min/max) | not suitable |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette medium (min/max) | not suitable |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette large (min/max) | not suitable |
| Flow rates pertain to | Tygon® (Standard) tubing and water |
