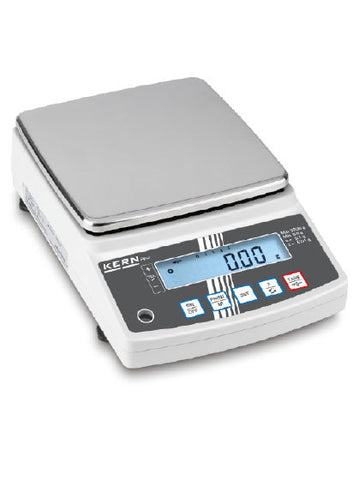

Kern PNS/PNJ Series Precision Balance with Automatic Internal Adjustment
SKU: PNS6003
Kern PNS/PNJ Series Precision Balance with Automatic Internal Adjustment
Buy Kern products from MSE Supplies at the best value.
MSE Supplies offers PNS/PNJ Series Precision Balance from KERN & SOHN GmbH. They are the new standard in the laboratory with robust tuning fork measuring system.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Main Features:
- PNJ: Automatic internal adjustment, guarantees high degree of accuracy and makes the balance independent of its location of use. Ideal for mobile applications which require verification, such as ambulatory gold and jewelry purchasing
- PNS: Adjusting program CAL for quick setting of the balance accuracy using an external test weight
- High-quality tuning fork measuring system for steady weight values and continuous weighing
- Capacity display: A bar lights up to show how much of the weighing range is still available
- Precise counting: The automatic reference weight optimization of reference weight gradually improves the average piece weight value
- Compact size, practical for small spaces
- Large, shock proof weighing plate made from stainless steel

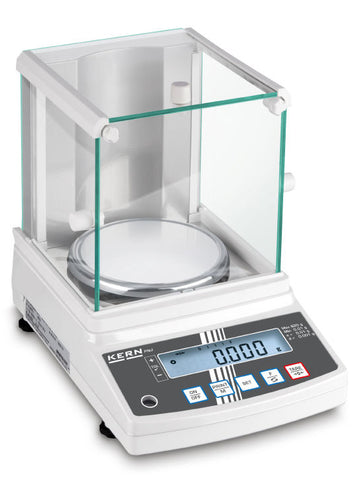

- Large glass draught shield with 3 sliding doors for easy access to the items being weighed, for models with weighing plate size Ø 140, weighing space W×D×H 172 × 171 × 160 mm
- Protective working cover included with delivery
- In order to make it easier for you to make the right choice of KERN balance, we have included a quality code for each model, which is made up of two quality features and will give you technical data and pictograms in addition to the product features. This will help you to make the decision on the perfect balance for your application
Accessories:
- Protective working cover
- Precious stones plate
- RS-232/Ethernet adapter
- RS-232/Bluetooth adapter
- Roll
- Label printer
- Software Balance Connection
- Mains adapter
- Farbband
- Matrix needle printer
- Statistics printer
- Thermal receipt rolls
For accessories, please contact us so we can help you choose appropriate products for your needs.
Technical Specifications:
|
Parameter |
PNS6003 |
PNS30002 |
PNS120001 |
PNJ6003M |
PNJ30002M |
PNJ120001M |
|
Readability |
1 mg |
10 mg |
100 mg |
1 mg |
10 mg |
100 mg |
|
Weighing range (max) |
620 g |
32000 g |
12000 g |
620 g |
32000 g |
12000 g |
|
Repeatability |
1 mg |
10 mg |
100 mg |
1 mg |
10 mg |
100 mg |
|
Linearity |
4 mg |
20 mg |
200 mg |
4 mg |
20 mg |
200 mg |
|
Stabilization time |
3 sec. |
|||||
|
Adjustment weight |
External calibration |
External calibration (auto) |
||||
|
Warm-up time |
4 hrs |
2 hrs |
4 hrs |
2 hrs |
||
|
Weighing units |
g, oz, mo, dwt, lb, tl, (singap. malays), ozt, tl, (Tw), gn, tl, (HK), tol |
g, oz, mo, dwt, lb, tl, (singap. malays), ozt, tl, (Tw), tl, (HK), tol |
g, oz, mo, dwt, lb, tl, (singap. malays), ozt, tl, (Tw), gn, tl, (HK), tol |
g, ct, mo, oz, dwt, lb, tl, (singap. malays), ozt, tl, (Tw), tl, (HK), tol |
g, oz, mo, dwt, lb, tl, (singap. malays), ozt, tl, (Tw), tl, (HK), tol |
|
|
Weighing surface (WxD) |
140 mm (D) |
196 mm x 293 mm |
190 mm x 190 mm |
140 mm (D) |
190 mm x 190 mm |
|
|
Dimensions of the housing (W x D x H) |
196 mm x 293 mm x 266 mm |
196 mm x 293 mm x 89 mm |
196 mm x 293 mm x 266 mm |
196 mm x 293 mm x 89 mm |
||
|
Weighing space (W×D×H ) |
172 mm x 171 mm x 160 mm |
- |
172 mm x 171 mm x 160 mm |
- |
||
|
Net weight (kg) |
2.2 |
2.8 |
4.2 |
3.6 |
3.8 |
|
|
Operating temperature |
5°C ~ 40°C |
|||||
|
Operating Humidity |
80 % relative (not condensing) |
|||||
|
Input voltage |
220 V - 240 V AC 50 Hz |
|||||
* For applications that require verification, please order verification at the same time
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
