Kern Video Microscope OIV 345
SKU: OIV 345
Kern Video Microscope OIV 345
MSE Supplies offers a Video Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
A video microscope provides a live feed image directly to a computer, TV or a LCD projector. There are several different setups for video microscopes which differ mostly based on the type of camera and the frames per second that the camera provides. The main goal for a video microscope is typically a smooth real-time video image that does not jump and is fluid. High quality live feed video microscopes utilize a HDMI microscope video camera that provides a live video directly to a TV or LCD projector with a fast frame rate. Many digital video microscopes offer high quality HD (high definition) output images and are commonly used in teaching environments. Video microscopes can have either a detachable camera or a built-in camera.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features

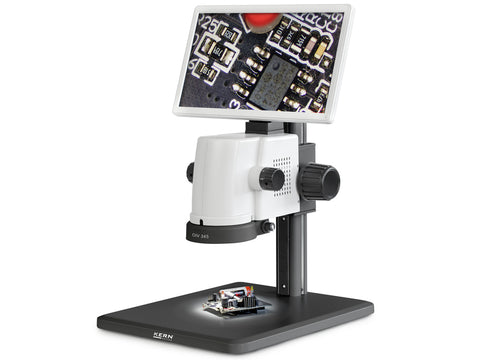

- The Kern OIV-3 is a video microscope which has been constructed to optimise digital stereo microscopy. Our well-conceived, comprehensive solution with axial optical unit enables immediate, simple display of your samples on the screen
- The LED incident illumination unit (ring) included as standard guarantees the very best illumination of your sample
- Combined with the large working surface, recording objects on the screen is ideally suited for monitoring, analysis and documentation in industrial environments
- The excellent optical unit enables continuous sharp image tracking across the entire zoom range from 0,7x-4,5x
- The powerful 5 MP camera of the microscope without eyepieces offers, thanks to the HDMI output, smooth live monitoring of your samples from the HD monitor. In addition, the software which is easy to use, the USB wireless mouse which are integral components of the delivery, mean you can process and store your results digitally

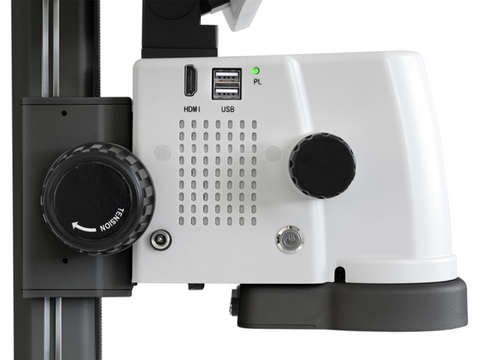

- Using an additional HDMI interface it is possible to connect an additional monitor and in this way you can observe two devices operated in parallel in real time.
- A special feature of this microscope range is the zoom wheels with integrated click stop. This click-stop-function offers precise selection of magnification levels and supports the user when calibrating the documentation functions in the software.
- A protective dust cover, as well as multi-lingual user instructions are included in the scope of delivery
Product Parameters
| Optical system | Axial |
| Magnification ratio | 6,4:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 4,5 x |
| Illuminance | Reflected light |
| Illumination type incident light | LED |
| Illumination intensity incident light | 3 W |
| Working distance | 100 mm |
| Sample height [Max] | 110 mm |
| Stand type | mechanical |
| Focusing mechanism | coarse drive |
| Display type | LCD |
| Display screen size | 12" |
| Display resolution | 1920×1080 HD |
| Camera sensor type | CMOS |
| Camera sensor size | 1/2,8" |
| Camera resolution | 5 MP |
| Interfaces | HDMI, MicroSD card slot, USB-Device |
| Dimension (W×D×H) | 320×260×450 mm |
| Product family | OIV-3 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
