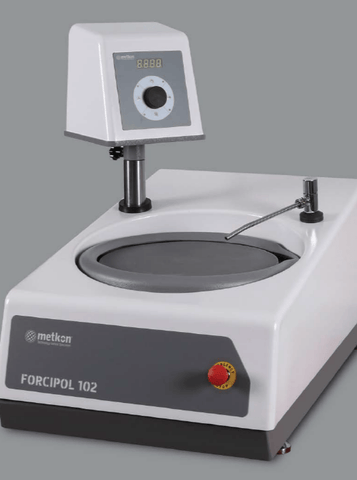

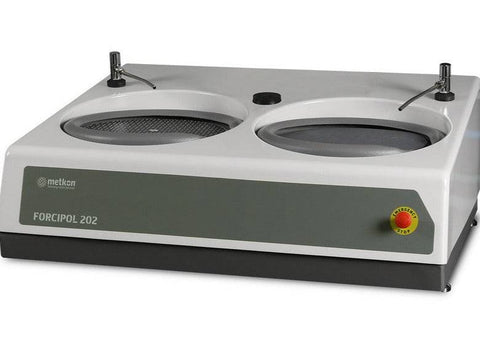

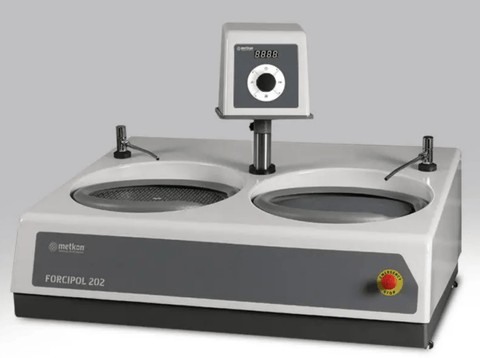

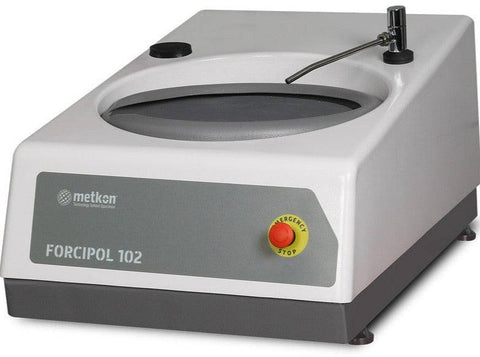

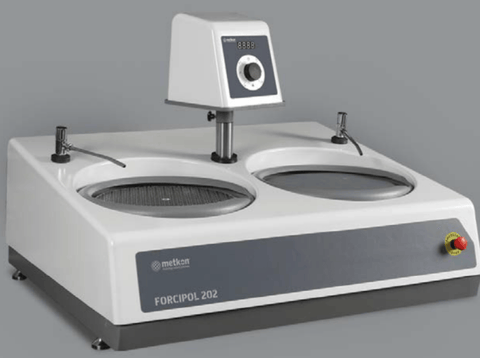

Metkon Grinding and Polishing Machine FORCIPOL 102/202 with Manual, Semi-automatic or Automatic Control Unit
SKU: FORCIPOL 102
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.

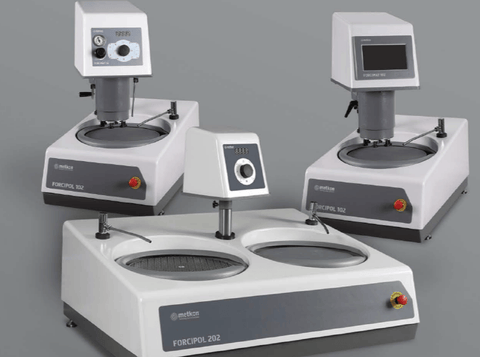

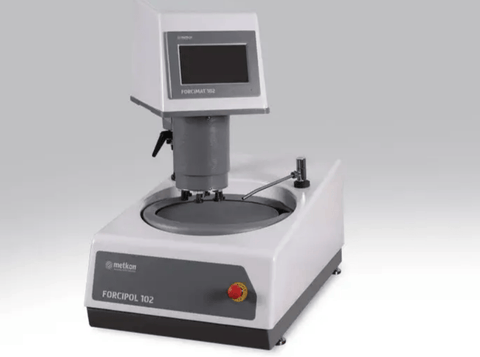

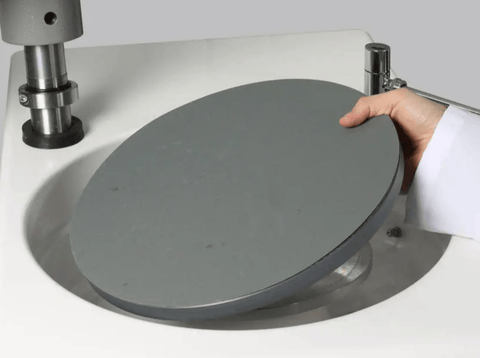

MSE Supplies offers a Grinding and Polishing Machine FORCIPOL 102/202 with Manual, Semi-automatic or Automatic Control Unit from Metkon Instrument Inc. The FORCIPOL Series grinding and polishing machines offer practical and economical solutions to your metallographic sample preparation needs. FORCIPOL Series of instruments are available as Single wheel (FORCIPOL 102) and Dual wheel (FORCIPOL 202) Units. They are designed to modular configuration for manual, semi-automatic and programmable automatic equipment. When only manual preparation is required, FORCIPOL Control Unit can be fitted on the FORCIPOL grinder/polisher. If automatic operation is required in the future, one of the FORCIMAT automatic heads can be installed at any time. Optional DOSIMAT peristaltic fluid dispensers are available to increase automation capability. They are perfect choice for laboratories preparing a wide range of different materials from very small to very large. They can be used for grinding, lapping and polishing with magnetic backed discs and cloths or by quick and simple exchange of wheels.
Country of Origin: Made in Turkey
Manufacturer: Metkon Instruments Inc.
Main Features:
- Both single and double wheel versions are suitable with Ø200, Ø250 and Ø300 mm wheels
- Powered by a high torque 1.0 HP electric motor with both clockwise and counterclockwise wheel rotation possibility
- Smooth speed variation (50-600 rpm) of the grinding wheel
- Soft start and soft stop
- Corrosion free and easy to clean
- Ball bearings used provide quite and vibration free operation
Technical Specifications
Specifications-Base Units
| MODEL NO | FORCIPOL 102 | FORCIPOL 202 |
| Number of Wheels | 1 | 2 |
| Wheel Diameter, (mm) | Ø200/250/300 | Ø200/250/300 |
| Base Motor Power, (HP) | 1 | 1 |
| Wheel Speed, (RPM) | 50-600 | 50-600 |
| Wheel Rotation Direction | CW/CCW | CW/CCW |
| Dimensions, WxDxH, (cm) | 45x74x34 | 87x74x34 |
| Weight, (kg) | 50 | 55 |
| Mains | 230 V 50/60 Hz, 1 Phase | 230 V 50/60 Hz, 1 Phase |
Specifications-Head Units
| MODEL NO | FORCIPOL Control Unit | FORCIMAT 52 | FORCIMAT 102 |
| Operation | Manual | Semi Automatic | Programmable Automatic |
| Application of Force | - | Individual | Individual + Central |
| Control Panel | Touch Pad Controls | Touch Pad Controls | 7" HMI Touch Screen |
| Program Memory | Last Parameters Retained in Memory | Last Parameters Retained in Memory | 30 Programs |
| Manual Operation Mode | Yes | Yes | Yes |
| Head Motor Power, (W) | - | 100 | 100 |
| Sample Holder Rotation Direction | - | CW | CW |
| Sample Holder Speed, (RPM) | - | 50-150 | 50-150 |
| Individual Force, (N) | - | 5-60 | 5-60 |
| Central Force, (N) | - | - | 30-500 |
| Grinding Depth Measurement | - | - | Optional |
| Grinding Depth Measurement Accuracy, (μm) | - | - | 10 |
| Disc Cleaning & Drying Feature | Yes | Yes | Yes |
| Smart Water Saving Feature | Yes | Yes | Yes |
| Compressed Air Requirement, (Bars) | - | 6 | 6 |
| Dimensions, WxDxH, (cm) | 20x20x39 |
26x46x54 |
26x46x54 |
| Weight, (kg) | 5 | 16 | 16 |
Specifications-Head Units
| MODEL NO | DOSIMAT 12 | DOSIMAT 52 | DOSIMAT 102 |
| Number of Pumps (Bottles) | 1 | 6 | 6 |
| Control Panel | Touch Pad Controls | Touch Pad Controls | Controllable from LCD Screen of FORCIMAT 102 |
| Program Memory | Last Parameters Retained in Memory | Last Parameters Retained in Memory | 30 Programs |
| Retract Function | Yes | Yes | Yes |
| Pre-Dosing Function | No | No | Yes |
| Compatible Instruments | FORCIMAT 52/102 | FORCIMAT 52 | FORCIMAT 102 |
| Dimensions, WxDxH, (cm) | 14x21x16 | 20x74x30 | 20x74x30 |
| Weight, (kg) | 5 | 15 | 15 |
Accessories:
- Head Units: FORCIPOL Control Unit/FORCIMAT 52/FORCIMAT 102
- Dosing Units
- Operational Accessories
- Spare Part Kit
- ENVIRO Recirculating Filtering System
- Other Accessories
Consumables:
- Paper Grinding Discs, Plain Back (100 Pcs. Per Pack)
- Paper Grinding Discs, Foil Back, for CATCHY System (100 Pcs. Per Pack)
- CATCHY System Accessories (1 Pc. Per Pack)
- MAGNETO Diamond Coarse Grinding Discs (1 Pc. Per Pack)
- MAGNETO-S Silicon Carbide Grinding Discs (1 Pc. Per Pack)
- Magnetic System Accessories (1 Pc. Per Pack)
- Polishing Cloths (Self-adhesive, 10 Pcs. Per Pack)
- Diamond Pastes, Monocrystalline
- Diamond Pastes, Polycrystalline
- Diamond Suspensions, Monocrystalline
- Diamond Suspensions, Polycrystalline
- Diamond Two in One Products, Monocrystalline
- Diamond Lubricant
- Alumina Suspensions
- Alumina Powder
- Colloidal Silica
For accessories and consumables, please contact us so we can help you choose appropriate products for your needs
About Metkon: Since 1993, METKON as a young and dynamic company, had delivered more than 20,000 instruments globally. Metkon provides innovative Sample Preparation and Testing Instruments and Consumables for Materials and Microstructure Analysis. It offers expertise and know-how to our customers worldwide to enable them to reach the "True and Excellent Sample".
MSE Supplies is an authorized distributor for Metkon Instrument Inc.
