MSE PRO 100W Semi-Automatic Microtome
SKU: BB2034

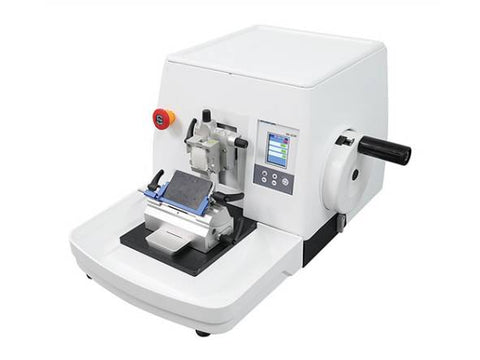

MSE PRO™ 100W Semi-Automatic Microtome
The MSE PRO™ 100W Semi-Automatic Precision Microtome is a cutting-edge instrument designed for precise sectioning of thin and uniform tissue slices, making it ideal for histology, pathology, and research applications. This advanced microtome can section slices between 0 and 100μm and perform trimmings between 0 and 600μm, with an ultra-fine adjustable index value of 0.25μm, ensuring the highest level of accuracy. Equipped with a precision cross-roller guide and a stainless steel holder, it delivers smooth and long-lasting performance. The multi-angle adjustment device with an embedding chuck provides superior flexibility for different sample types. A magnetic removable waste chute allows for effortless cleaning, while the large hand wheel double-lock system enhances safety during knife and sample exchanges.
- Ultra-Precise Cutting Performance – Adjustable slicing range from 0 to 100μm with 0.25μm precision index for high accuracy.
- Smooth & Durable Operation – Equipped with a precision cross-roller guide and stainless steel holder for long-lasting performance.
- Advanced Functionality – Multi-angle adjustment with embedding chuck and sectioning/trimming features for versatile applications.
- Easy Maintenance & Cleanup – Magnetic removable waste chute simplifies cleaning and disposal of trimmings.
- Enhanced Safety Mechanism – Large hand wheel with a double-lock system for secure and controlled knife/sample exchanges.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Semi-Automatic Microtomes. Please contact us for more information.
Specifications:
SKU# | BB2034 |
Sectioning Thickness Range | 0-100μm |
Trimming Thickness Range | 0-600μm |
Retraction Range | 0-200μm |
Mini. Sectioning Thickness | 0.25μm |
Precision | ±5% |
Velocity of Small Hand Wheel | 100-1000μm, adjustable |
Max Specimen Size | 50x70 mm |
Specimen Stroke | Horizontal: 28mm, vertical: 70mm |
Tool Holder Stroke | The maximum movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm. |
Sample Adjustment Direction | Horizontal 8° Vertical 8° Rotation 360° |
Power Supply | AC110/220V |
Power | 100W |
External Size(L*W*H) | 605 x 465 x 340 mm |
Net Weight | 35 kg |
