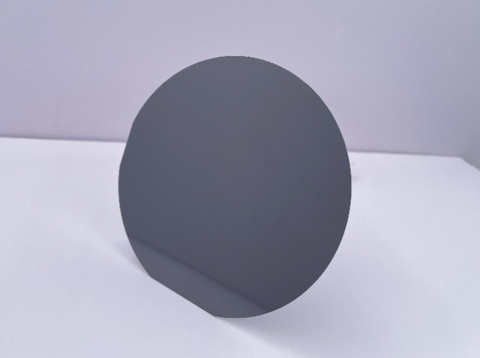

MSE PRO 4 inch 3C-N Type Silicon Carbide Wafers (3C-SiC)
SKU: SOWA249
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.
MSE Supplies offers 4 inch 3C-N Silicon Carbide Wafers N-Type SiC Substrates. It has a crystal structure of silicon carbide where the silicon and carbon atoms are arranged in a cubic lattice with diamond-like structure. It has several superior properties than the widely used 4H-SiC, such as higher electron mobility and saturation velocity. The performance of 3C-SiC power devices is expected to be better, cheaper, and easier to manufacture than the currently mainstream 4H-SiC wafer. It is exceptionally suitable for power electronic devices.
Specification:
|
Grade |
Production Grade |
Dummy Grade |
|
Diameter |
100 mm +/- 0.5 mm |
|
|
Thickness |
350 um +/- 25 um |
|
| Polytype | 3C |
|
|
Micropipe Density (MPD) |
5 cm-2 |
30 cm-2 |
| Electrical Resistivity | 0.0005~0.001 Ohm.cm | 0.001~0.0015 Ohm.cm |
* Please contact us for detail specification and quote.
**For production grade, please contact us for availability.
PROPERTIES OF SILICON CARBIDE CRYSTAL MATERIALS
|
Property |
4H-SiC Single Crystal |
3C-SiC Single Crystal |
|
Lattice Parameters (Å) |
a=3.076 c=10.053 |
a=4.36 |
| Stacking Sequence | ABCB | ABC |
|
Density (g/cm³) |
3.21 |
3.166 |
|
Mohs Hardness |
~9.2 |
~9.2 |
|
Thermal Expansion Coefficient (CTE) (/K) |
4-5 x 10-6 |
2.5-3.5 x10-6 |
|
Dielectric Constant |
c ~ 9.66 |
c ~ 9.72 |
|
Doping Type |
N-type or Semi-insulating or P-type |
N-type |
|
Band-gap (eV) |
3.23 |
2.4 |
|
Saturation Drift Velocity (m/s) |
2.0 x 105 |
2.5 x 105 |
|
Wafer and Substrate Sizes |
Wafers: 2, 4 inch; smaller substrates: 10x10, 20x20 mm, other sizes are available and can be custom-made upon request |
|
Price
MSE Supplies offers the best price on the market for high quality SiC wafers and SiC crystal substrates up to eight (8) inch diameter. Our price matching policy guarantees you the best price for the SiC crystal products with comparable specifications. CONTACT US today to get your quote.
Customization
Customized SiC crystal products can be made to meet customer's particular requirements and specifications. Epi-wafers can be custom made upon request.
