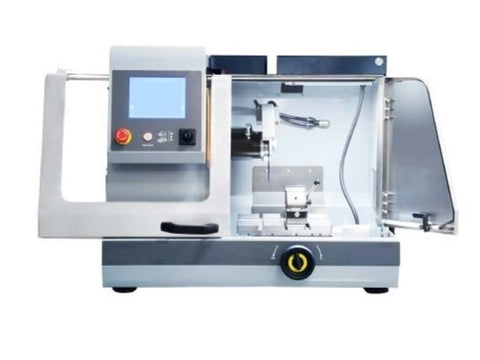

MSE PRO Automatic Metallographic Abrasive Cutting Machine, Max. Cutting Diameter 85mm
SKU: MA1387
MSE PRO™ Automatic Metallographic Abrasive Cutting Machine, Max. Cutting Diameter 85mm
MSE Supplies provides a metallographic abrasive cutting machine, a fully automatic solution designed for precision cutting. This versatile machine is suitable for cutting a wide range of materials, including metals, ceramics, quartz glass, and petrographic samples. It offers fully automated cutting capabilities across multiple sections of varying thicknesses, utilizing three-axis (X, Y, Z) operation for enhanced accuracy and efficiency.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- Fully automatic control of X、Y、Z axes.
- Extra-large worktable and cutting chamber; the size of the worktable is 300*280mm.
- Opening on both sides for extra-long specimens.
- 8" Touch-Screen user interface.

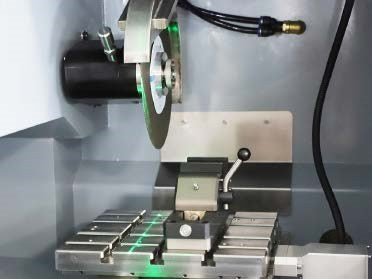

- Laser tool setting device.
MSE supplies offers various metallographic cutting machines with different capacities, please contact us for more information. Extra cutting fluid and diamond/CBN blades are also available upon request.
Technical Specifications:
| Parameter | MA1387 |
| Speed | 1000–3000 rpm |
| Cutting Wheel Diameter | Φ254 mm |
| Cutting Wheel Hole Distance | Φ32 mm |
| Voltage/Frequency | 110V/60Hz |
| Power | 3.8 kW |
| Max. Cutting Capacity | Φ85 mm |
| Cutting Mode | Vertical Cutting / Horizontal Cutting |
| Feeding Method (Cutting) | Constant Speed Cutting |
| Travel (Feeding Method) | Y Direction (Front/Back): 250 mm |
| X Direction (Left/Right): 100 mm | |
| Working Table Dimensions | 280 × 300 mm (W × D) |
| T-Slot | 12 mm |
| Machine Dimensions | 930 × 900 × 720 mm (W × D × H) |
| Weight | 250 kg |
