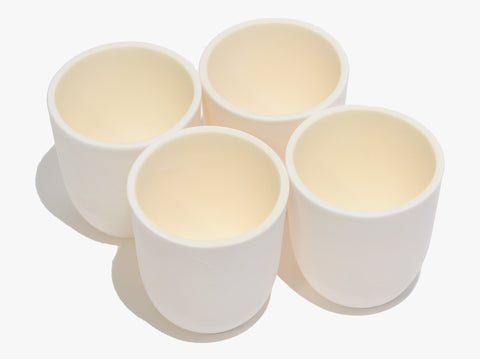

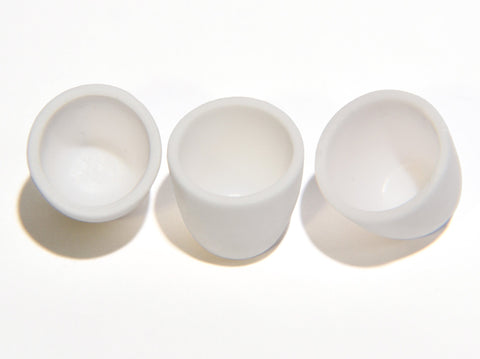

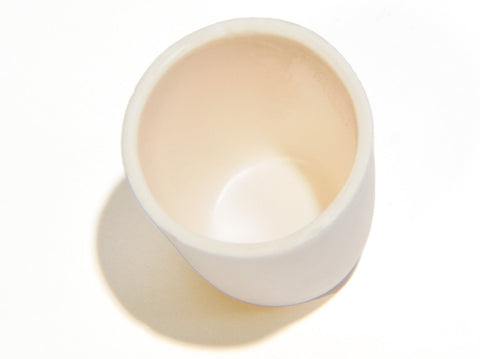

MSE PRO High Purity Alumina (Al<sub>2</sub>O<sub>3</sub>) Crucible High Form

MSE PRO High Purity Alumina (Al2O3) Crucible High Form

SKU: JA1114

  • £900
  • Save £100

Product details

High purity alumina (Al2O3) lab crucibles have high melting point, high hardness and good chemical stability. High form alumina crucibles are widely used for chemical calcination, metal casting and ceramic sample preparation.

Click here to order Covers for high purity alumina (Al2O3) crucibles

Powder processing is recommended for the best calcination and sintering results. MSE Supplies offer a variety of balling milling equipment and accessories for powder processing.

Standard Products and Specifications

Purity: >99%

Maximum temperature: 1600 °C


SKU# Capacity (mL) Top Dia. (mm) Bottom Dia. (mm) Height (mm)
JA1114 5 26 18 27
JA1115 10 30 20 35
JA1116 15 35 25 40
JA1117 50 50 30 52
JA1199 90 50 30 65
JA1118 100 61 35 70
JA1119 300 80 53 100

Crucible dimensions can be customized upon request. The dimensions listed above are for reference only. Please contact us if you need tight tolerance. Crucible covers are available upon request at an additional cost.

Notes for use

  • Place the crucible in 105 °C oven for 2h to remove the moisture before the first use
  • Do not heat and cool faster than 5 °C/min <1200 °C or 4 °C/min >1200 °C

Crucibles are considered as consumables which are not covered by warranty.
