MSE PRO Lab Scale 30-Ton Manual Hydraulic Pellet Press
SKU: PR0345A
MSE PRO™ Lab Scale 30-Ton Manual Hydraulic Pellet Press
Our MSE PRO™ lab scale 30-Ton manual hydraulic pellet press has unique features such as compact structure, small volume, fast compression, simple operation, easy cleaning and low maintenance. It is widely used to press powders for FTIR/XRF analysis, battery electrode material, metallurgy, ceramic and catalysis applications.
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.
If you need other maximum pressure requirements or customized designs, please contact MSE Supplies. The product image is for reference only. The actual product appearance is based on the specific product configuration.
If you use this press inside a glove box, please check the O-ring seal periodically to avoid oil leak.

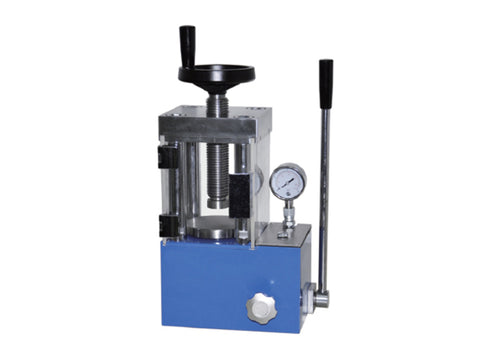

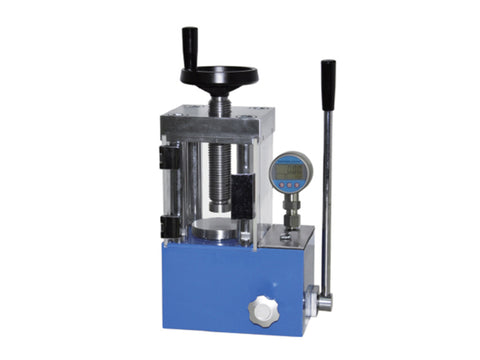

Design | Regular Pressure Gauge | Regular Pressure Gauge/with Safety Shield | Digital Pressure Gauge | Digital Pressure Gauge/with Safety Shield |
Product SKU # | PR0345A | PR0345B | PR0345C | PR0345D |
Working area | 92x160mm | 112x160mm | 92x160mm | 112x160mm |
Dimensions | 275x195x420mm | 305x195x425mm | 275x195x420mm | 305x195x425mm |
Net weight | 56kg | 65kg | 56kg | 65kg |
Safety shield | - | Plexiglass material | - | Plexiglass material |
Pressure range | 0-30 Metric Tons (0-31.5Mpa) | |||
Max pressure | 30 Tons | |||
Diameter of piston | 110mm | |||
Columns number | Four | |||
Maximum travel distance of the piston | 40mm | |||
Pressure stability | ≤1MPa/10min | |||
Sample stage diameter | 120mm | |||
Warranty | Limited one year warranty, not responsible for the damage caused by improper use | |||
Note | Please clean the press after each use to ensure the best performance and longer life time |
