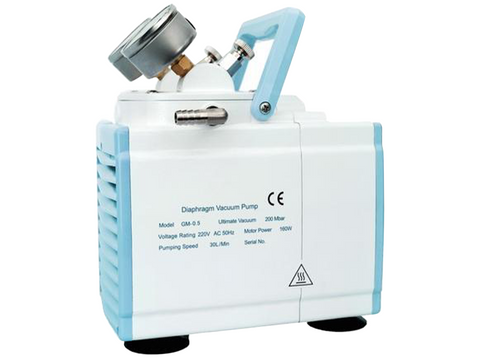

MSE PRO Laboratory Compact Oil-free Diaphragm Vacuum Pump, 1.06CFM
SKU: LS9053
MSE PRO™ Laboratory Compact Oil-free Diaphragm Vacuum Pump, 1.06CFM
MSE PRO™ Laboratory Diaphragm vacuum pumps are known for their oil-free operation, chemical resistance, and low maintenance, making them ideal for handling aggressive gases and vapors. They are commonly used in laboratories, medical devices, and environmental monitoring where clean and contamination-free vacuum is essential.
Features:
- The oil-free design and well-sealed structure ensure that the pumped gases are not contaminated, ideal for applications requiring a pure vacuum.
- Provides stable vacuum levels and good performance, suitable for various applications.
-
Operates with low noise levels, making it suitable for noise-sensitive environments.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies can offer lab and industrial Vacuum Pump with a variety of size. Please contact us for more information.
Specifications:
| SKU# |
LS9053 LS9053-2 |
|
Max Pumping Speed (CFM/L/Min)
|
1.06/30 |
|
Ultimate Pressure (mbar)
|
200
|
|
Power Supply Voltage
|
110V 60Hz (Standard)
220V 50Hz (Optional)
|
|
Motor Power (W)
|
160
|
|
Pressure (psi)
|
≥0
|
|
Inlet (mm)
|
Ø6
|
|
Outlet (mm)
|
Ø6
|
|
Temperature of Working
Environment (℃ )
|
7-40
|
|
Function
|
Vacuum & Pressure
|
|
Pump Head
|
1
|
|
Temp of The Body (℃ )
|
<55
|
|
Dimensions (mm)
|
210 (L) x 160 (W) x 235 (H)
|
|
Noiselevel (dB)
|
<60
|
|
Weight (kg)
|
8
|
|
Diaphragm
|
NBR
|
|
Valves
|
NBR
|
