MSE PRO Laboratory Hydraulic Hot Roller Press for Electrode Sheet Calendering, 300mm Width
SKU: BR0434

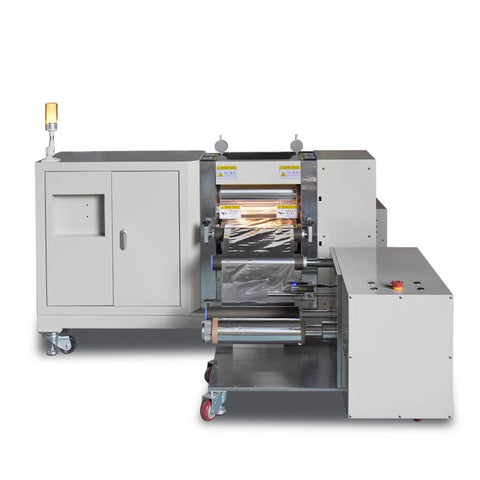

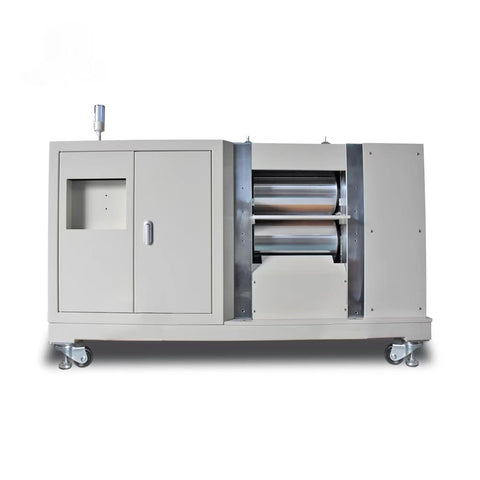

MSE PRO™ Laboratory Hydraulic Hot Roller Press for Electrode Sheet Calendering, 300mm Width
MSE PRO™ Laboratory Hydraulic Hot Roller Press is designed for high-precision rolling of positive and negative electrode sheets in the battery industry, ensuring excellent uniformity in both horizontal and vertical directions. The post-rolling product has a high-quality appearance. The pressure for the roller is provided by a servo hydraulic system, making the equipment suitable for applications where high consistency in rolling force and rolling gap is required.
-
High precision control: The combination of a hydraulic system and electric control allows for precise regulation of rolling force and gap, ensuring product consistency and accuracy.
-
Excellent uniformity: It provides superior uniformity in both horizontal and vertical directions, making it suitable for materials with strict requirements on thickness and shape.
-
High operational stability: The hydraulic balance system delivers stable pressure output, minimizing vibrations and ensuring smooth processing.
-
Versatile adaptability: Suitable for rolling various materials, especially in applications with stringent processing requirements for positive and negative electrode sheets in the battery industry.
-
High-quality product appearance: The rolled material has a smooth and flat surface, reducing the need for further processing.
-
High degree of automation: Often equipped with a servo system and intelligent control, it reduces manual intervention and improves production efficiency.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Rolling Press Machines. Please contact us for more information.
| SKU# | BR0434 |
|
Control mode
|
Imported servo hydraulic proportional valve system to control pressure
|
|
Thickness adjust
|
Servo Motor
|
|
Roller Size
|
Φ196x330mm (Diameter×Roller width)
|
|
Effective Width
|
300mm |
|
Machine Speed
|
0.3~4m/min adjustable
|
|
Electrode Uniformity
|
±0.002mm(User guarantee)
|
|
Rolling Press Gap
|
0-3mm adjustable
|
|
Electrode thickness
uniformity after rolling
|
≤±0.002mm, Under the premise of ensuring the uniformity of coating,
Pressure roller layout: upper and down horizontal layout
|
|
Structure
|
Gantry frame, each component is good plated with hard chromium treatment,
no rust and paint off.
Digital micrometer display the roller gap
Equipped with lighting device, convenient to check the rolling situation
|
|
Equipment Composition
|
Servo hydraulic proportional valve system, pressure measuring system,
AC frequency conversion motor, reducer, gear splitting box, precision coupling,
pressing device, roller system, rolling machine body, protective plate, PLC touch
screen, electrical control, etc.
|
|
Roller Parameter
|
HRC65~70, hardness layer thickness ≥15mm, round beating better than ±2μm
Roller material 9Cr3Mo, hard chromium plating surface thickness ≥0.15mm
|
|
Main Motor Power
|
1.5KW AC frequency conversion motor
|
|
Total Voltage Supply
|
Voltage single phase 220Vac ± 10%, frequency 50Hz/60Hz, 2KW
|
|
Max working pressure
|
Total about 40Tons
|
|
Main machine weight
|
550kg
|
|
Dimension
|
L1400mmxW500mmxH1300mm
|
|
Heating Range
|
RT-130℃
|
|
Heating Mode
|
Inner heating rod method
|
|
Heating Power
|
1.5KW each, total 3KW
|
