MSE PRO Metallographic UVmount Curing Machine
SKU: MA1386

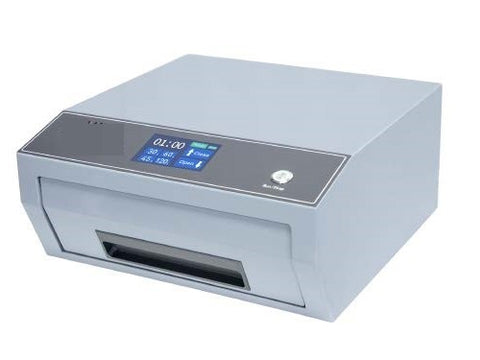

MSE PRO™ Metallographic UVmount Curing Machine

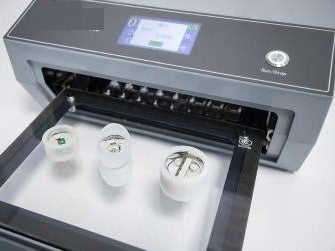

MSE Supplies provides the Metallographic UVmount Curing Machine, a cold mounting solution engineered for efficient and reliable sample preparation. This advanced machine uses UV light to rapidly cure resins, delivering high-quality results. Simply pour the resin into a transparent mold, place it in the UVmount, and within just 60 seconds, you’ll have a completely transparent mounted sample. The process is fast, with minimal air bubbles, ensuring superior sample preparation that meets the highest industry standards.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- Enables effortless opening and closing.
- Automates the entire process, including sample delivery, with a single touch.
- Features a 4.3-inch touch screen display for intuitive operation.
- Includes 4 preset timer buttons for convenient customization.
- Upper and lower light sources ensure complete irradiation with no blind spots.
- Achieves consistent curing from the inside out.
- Maintains a maximum curing temperature below 90°C.
- Ensures the sample temperature at the end of curing remains under 60°C.
- Equipped with a dual-fan system for optimal heat dissipation.
- Can include an air extraction system and air purifier to prevent unpleasant odor leakage.
Technical Specifications:
SKU# | MA1386 |
Sample Support Surface Dimensions | 260 × 200 mm |
Maximum Height | 50 mm |
Curing Time | 0–100 minutes |
Type of UV Light | Ultraviolet light (Main Wavelength: 365 nm) |
Machine Dimensions (W × D × H) | Closed: 400 × 404 × 188 mm |
Open: 400 × 651 × 188 mm | |
Voltage/Frequency | 110V/60Hz |
Weight | 25 kg |
MSE Supplies offers various metallographic equipment, please contact us for more information.
