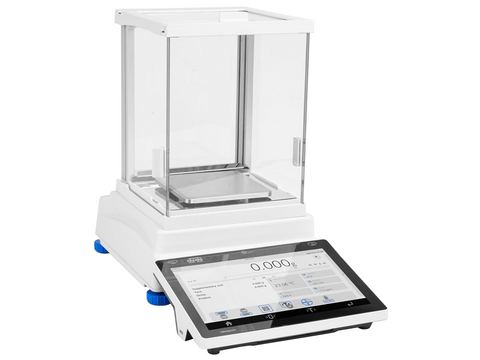

RADWAG PS.5Y Precision Balances ELLIPSIS 5Y SERIES

RADWAG PS.5Y Precision Balances ELLIPSIS 5Y SERIES

SKU: WL-220-0418

  • £2,03500
  • Save £35900

RADWAG PS.5Y Precision Balances ELLIPSIS 5Y SERIES

Buy RADWAG products from MSE Supplies at the best value.

SKU #

WL-220-0418

WL-220-0418

WL-220-0412

WL-220-0414

WL-220-0416

WL-220-0406

WL-220-0410

Model #

PS 200/2000.5Y

PS 210.5Y

PS 360.5Y

PS 600.5Y

PS 750.5Y

PS 1000.5Y

PS 3000.5Y

Maximum Capacity (g)

200/2000

210

360

600

750

1000

3000

Readability (mg)

1/10

1

1

1

1

1

1



SKU #

WL-220-0409

WL-220-0411

WL-220-0413

WL-220-0415

WL-220-0417

WL-220-0407

Model #

PS 2100.5Y.M

PS 3500.5Y.M

PS 4500.5Y.M

PS 6100.5Y.M

PS 8100.5Y.M

PS 10100.5Y.M

Maximum Capacity (g)

2100

3500

4500

6100

8100

10100

Readability (mg)

10

10

10

10

10

10


Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password,
RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

- Full data security
- Electronic signatures
- Validations
- Electronic records
- Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Datasheet

Model No.

PS 200/2000.5Y

PS 210.5Y

PS 360.5Y

PS 600.5Y

PS 750.5Y

PS 1000.5Y

PS 3000.5Y

Metrological parameters

Maximum capacity [Max]

200/2000 g

210 g

360 g

600 g

750 g

1000 g

3000 g

Minimum load

-

-

-

-

-

-

-

Readability [d]

1/10 mg

1 mg

1 mg

1 mg

1 mg

1 mg

1 mg

Verification unit [e]

-

-

-

-

-

-

-

Tare range

-2000 g

-210 g

-360 kg

-600 kg

-750 kg

-1000 kg

-3000 kg

Standard repeatability [5% Max]

0.5/5 mg

0.5 mg

0.5 mg

0.5 mg

0.5 mg

0.5 mg

0.6 mg

Standard repeatability [Max]

1/10 mg

1 mg

1 mg

1.5 mg

1.5 mg

1.5 mg

1.5 mg

Standard minimum weight (USP)

1 g

1 g

1 g

1 g

1 g

1 g

1.2 g

Standard minimum weight (U=1%, k=2)

0.1 g

0.1 g

0.1 g

0.1 g

0.1 g

0.1 g

0.12 g

Linearity

±2/20 mg

±2 mg

±2 mg

±3 mg

±3 mg

±3 mg

±6 mg

Stabilization time

2/1.5 s

2 s

2 s

2 s

2 s

2 s

3 s

Adjustment

internal (automatic)

OIML Class

-

 -

 -

 -

-

-

-

Physical parameters

Leveling system

semi-automatic - LevelSENSING

Display

10″ graphic colour touchscreen

Delivery components

Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.

Weighing pan dimensions

128×128 mm

Packaging dimensions

600×400×550 mm

Net weight

3.99 kg

3.54 kg

3.99 kg

3.99 kg

3.9 kg

4.01 kg

3.9 kg

Gross weight

5.5 kg

5 kg

5 kg

5.5 kg

5 kg

5 kg

5.5 kg

Construction

Protection class

IP 43

Components and software

Database capacity

7

Features of use

Touch-free operation

 2 IR Sensors

Communication interface

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot

Electrical parameters

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

Balance: 12 – 15V DC 0.8A max

Power consumption

4 W

Environmental conditions

Operating temperature

+10 — +40 °C

Ambient conditions monitoring (option)

THBR 2.0 System, THBR BOX, THB P, THB W, THB S

Relative humidity

40% — 80%



Model No.

PS 2100.5Y.M

PS 3500.5Y.M

PS 4500.5Y.M

PS 6100.5Y.M

PS 8100.5Y.M

PS 10100.5Y.M

Metrological parameters

Maximum capacity [Max]

2100 g

3500 g

4500 g

6100 g

8100 g

10100 g

Minimum load

-

-

-

-

-

-

Readability [d]

10 mg

10 mg

10 mg

10 mg

1 mg

10 mg

Verification unit [e]

-

-

-

-

-

-

Tare range

-2100 g

-3500 g

-4500 kg

-6100 kg

-8100 kg

-10100 kg

Standard repeatability [5% Max]

5 mg

5 mg

5 mg

5 mg

5 mg

5 mg

Standard repeatability [Max]

8 mg

8 mg

8 mg

8 mg

10 mg

12 mg

Standard minimum weight (USP)

10 g

10 g

10 g

10 g

10 g

10 g

Standard minimum weight (U=1%, k=2)

1 g

1 g

1 g

1 g

1 g

1 g

Linearity

±20 mg

±20 mg

±20 mg

±20 mg

±20 mg

±20 mg

Stabilization time

1.5 s

1.5 s

1.5 s

1.5 s

1.5 s

1.5 s

Adjustment

internal (automatic)

OIML Class

-

 -

 -

 -

-

-

Physical parameters

Leveling system

semi-automatic - LevelSENSING

Display

10″ graphic colour touchscreen

Delivery components

Balance, weighing pan, weighing pan shield, power supply.

Weighing pan dimensions

195×195 mm

Device dimensions

-

-

333x206x107 mm

Packaging dimensions

720×370×274 mm

Net weight

7.2 kg

7.2 kg

7.2 kg

7.2 kg

7.2 kg

7.2 kg

Gross weight

9.3 kg

9.3 kg

9.3 kg

9.3 kg

9.3 kg

9.3 kg

Construction

Protection class

IP 43

Components and software

Database capacity

7

Features of use

Touch-free operation

 2 IR Sensors

Communication interface

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot

Electrical parameters

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

Balance: 12 – 15V DC 0.8A max

Power consumption

4 W

Environmental conditions

Operating temperature

+10 — +40 °C

Ambient conditions monitoring (option)

THBR 2.0 System, THBR BOX, THB P, THB W, THB S

Storage temperature

-

-

-20 — +50 °C

-

-20 — +50 °C

Relative humidity

40% — 80%



*The power supply can be connected to the socket on the back of the balance housing or to the terminal.
