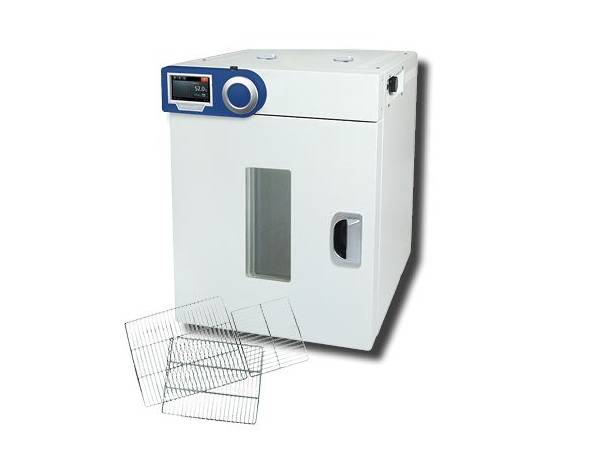

Witeg Drying Oven SWOF Forced-Air SmartLAb 50/105/155 Liter 250°C

Witeg Drying Oven SWOF Forced-Air SmartLAb 50/105/155 Liter 250°C

SKU: DH.SWOF05050

  • £2,36700
  • Save £26300

Witeg Drying Oven SWOF Forced-Air SmartLAb 50/105/155 Liter 250°C

Buy Witeg products from MSE Supplies at the best value.

Ideal for

  • drying, baking, conditioning, curing, pre-heating and aging

Features

  • optimized air flow by gravity-air mechanism
  • 3-side heating ensures temperature uniformity and accuracy
  • ambient +5°C to 250°C range, fluctuation of ±0.3°C at 100°C
  • stainless steel chamber
  • powder-coated steel body and glass wool insulation
  • available with viewing window (SWOF-W models)
  • new compact body design
  • storage function for set values of temperature and timer
  • 2x stainless steel wire shelves included
  • CE & UL/CUL certified and unique serial number for tracing

Safety mechanism

  • push alarm service to your smartphone
  • locking mode
  • overheat and over-current protection
  • sensor error detection

Controller

  • Smart-Lab™ controller with 4? full touch screen TFT LCD:
    • WiRe™ app service, remote control system
    • variable program settings
    • self-diagnostic function
    • automatic data recording
    • data transfer to PC by USB memory
    • Internet connectivity with WiFi

Drying oven SWOF, 2 wire shelves, power cable, instruction manual

Features

SMART-LabTM Controller

  • full touch screen TFT LCD
  • WiRe™ app service, remote control system
  • variable program settings
  • self-diagnosis function
  • automatic data recording and password protection
  • data transfer to PC by USB memory
  • digital calibration (offset function)
  • min-/max-temperature memory & program function
  • push-alarm service to smartphone or tablet PC

Temperature uniformity successfully tested by ASTM standards: All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product: All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

Forced-air: The ovens forced-air flow is established by a very effective fan installed in the rear of the chamber sucking air from the chamber into the pre-heating zone where heating elements on the bottom, left and right side heat up air. The pre-heated air is uniformly and quickly provided into the chamber by a special side and bottom structure.

IQ/OQ available



SKU Model Version Width (inner) Length (inner) Height (inner) Width (Outer) Length (outer) Height (outer) Ideal for Heating time Shelves Heating power Capacity Hole diameter Holes Power consumption Temperature variation Temperature control resolution Temperature range Temperature fluctuation Packing size Recovery time Sensor
DH.SWOF05050 SWOF-50 230 V with Smart-LabTM controller 370 mm 345 mm 420 mm 518 mm 647 mm 724 mm Drying, baking, conditioning, curing, pre-heating and aging 25 min. to 100°C, 45 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg 650 W 50 l Ø35 mm 1 ventilation hole with stainless steel cap 674 W ±1°C at 100°C, 1.8°C at 150°C Control ±0.1°C Room temperature +5°C - 250°C ±0.3°C at 100°C, ±0.5°C at 150°C 622 x 754 x 807 mm 8 min. to 100°C, 8 min. to 150°C Temperature sensor PT100
DH.SWOF05105 SWOF-105 230 V with Smart-LabTM controller 485 mm 415 mm 535 mm 653 mm 712 mm 882 mm Drying, baking, conditioning, curing, pre-heating and aging 25 min. to 100°C, 40 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg 1400 W 105 l Ø35 mm 2 ventilation holes with stainless steel cap 1390 W ±1°C at 100°C, 1.8°C at 150°C Control ±0.1°C Room temperature +5°C - 250°C ±0.3°C at 100°C, ±0.5°C at 150°C 743 x 819 x 1068 mm 6 min. to 100°C, 6 min. to 150°C Temperature sensor PT100
DH.SWOF05155 SWOF-155 230 V with Smart-LabTM controller 550 mm 480 mm 600 mm 718 mm 777 mm 947 mm Drying, baking, conditioning, curing, pre-heating and aging 25 min. to 100°C, 40 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg 1600 W 155 l Ø35 mm 2 ventilation holes with stainless steel cap 1566 W ±1°C at 100°C. ±2°C at 150°C Control ±0.1°C Room temperature +5°C - 250°C ±0.3°C at 100°C, ±0.5°C at 150°C 808 x 884 x 1133 mm 6 min. to 100°C, 6 min. to 150°C Temperature sensor PT100
DH.SWOF07105 SWOF-W105 230 V with Smart-LabTM controller, with viewing window 485 mm 415 mm 535 mm 653 mm 712 mm 882 mm Drying, baking, conditioning, curing, pre-heating and aging 25 min. to 100°C, 40 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg 1400 W 105 l Ø35 mm 2 ventilation holes with stainless steel cap 1390 W ±1°C at 100°C, 1.8°C at 150°C Control ±0.1°C Room temperature +5°C - 250°C ±0.3°C at 100°C, ±0.5°C at 150°C 743 x 819 x 1068 mm 6 min. to 100°C, 6 min. to 150°C Temperature sensor PT100
DH.SWOF07155 SWOF-W155 230 V with Smart-LabTM controller, with viewing window 550 mm 480 mm 600 mm 718 mm 777 mm 947 mm Drying, baking, conditioning, curing, pre-heating and aging 25 min. to 100°C, 40 min. to 150°C 2 stainless steel wire shelves included, load per shelf 16 kg 1600 W 155 l Ø35 mm 2 ventilation holes with stainless steel cap 1566 W ±1°C at 100°C. ±2°C at 150°C Control ±0.1°C Room temperature +5°C - 250°C ±0.3°C at 100°C, ±0.5°C at 150°C 808 x 884 x 1133 mm 6 min. to 100°C, 6 min. to 150°C Temperature sensor PT100
