2 inch Ammonothermal High Transparency N-type Free-Standing Gallium Nitride (GaN) Substrate - MSE Supplies LLC

2 inch Ammonothermal High Transparency N-type Free-Standing Gallium Nitride (GaN) Substrate

SKU: WA0255

  • $ 7,60095
  • Save $ 91300



2 inch Ammonothermal High Transparency N-type Free-Standing Gallium Nitride (GaN) Substrate

Free-Standing Gallium Nitride (GaN) is a promising wide band gap material. There are two main ways to produce them, Hydride Vapour Phase Epitaxy (HVPE) and ammonothermal. HVPE has a faster growth rate and a larger sized substrate which can be produced up to 4". Ammonothermally grown substrates have relatively low growth rates and a size of up to 2". Despite the lower growth rates and smaller sizes, ammonothermally grown substrates have excellent structural properties and low dislocation density. These superior properties allow researchers to discover more advanced applications. Similar to all free-standing GaN, it can be used in various applications, including power devices, RF devices, laser diodes and LED.

Conductivity type: N-type, Oxygen Doped

  • Dimension: 2 inch diameter or 50.4 +/- 0.5 mm
  • Thickness: 430 +/- 50 um
  • Primary Flat: 16 +/- 1 mm
  • Secondary Flat:  8 +/- 1 mm
  • Orientation: (0001) C-plane
  • Total Thickness Variation: ≤ 60 um
  • Bow: 0 +/- 20 um
  • Resistivity: ~ 10-2 ohm-cm
  • Carrier Concentration: 2E17 ~ 2E18 cm-3
  • Carrier Mobility: ~ 250 cm2/V*s
  • FWHM (0002), epi-ready surface at 100 um x 100 um slit: ~ 20 arcsec
  • Etch Pit Density: < 5 x 10cm-2
  • Polishing: Front surface: RMS < 0.5 nm, Epi ready, Back surface ground.
  • Growth Method: Basic ammonothermal method with T ~ 650 °C.

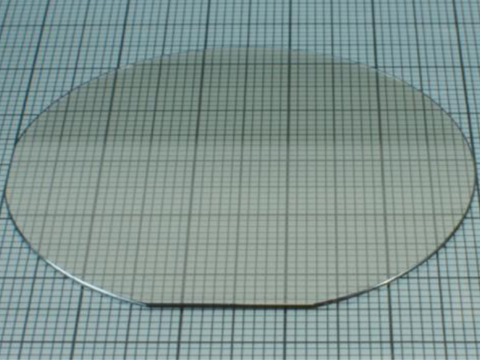

*The picture shown might be different from the actual product.

Customization:

Customized GaN Free-Standing products can be made to meet customer's particular requirements and specifications.

References:

  1. GaN-on-GaN pn power diodes with 3.48 kV and 0.95 mΩ-cm2: A record high figure-of-merit of 12.8 GW/cm2. In 2015 IEEE international electron devices meeting (IEDM), pp. 9-7. IEEE, 2015.
  2. High voltage, high current GaN-on-GaN pn diodes with partially compensated edge termination. Applied Physics Letters113, no. 2 (2018): 023502.
