MSE PRO 6L (4 x 1.5L) Vertical High Energy Planetary Ball Mill
SKU: MA0115
Product Features for Planetary Ball Mill Machine, 6L (4 x 1.5L)
- Brand: MSE PRO™
- Special gear design for low noise and vibration.
- Stable rotation speed.

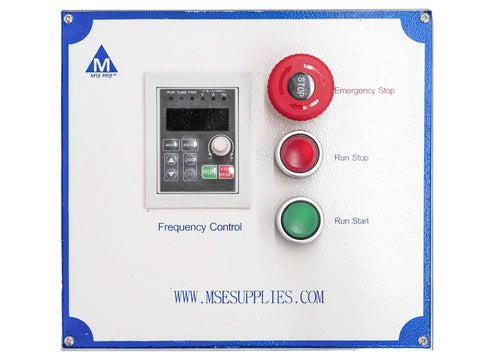

- LCD control panel.
- Programmable milling segments.

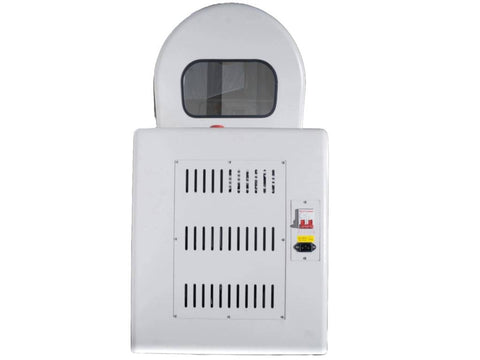

- Safety view port.
- Reliable heavy duty design.
- One year warranty included and multiple year warranty options available (consumables not included).
- Customized power supply (110V, 220V or 380V depending on location and power ratings). Please specify when placing the order.
Available Model and Specifications. Please Contact Us for quotation.

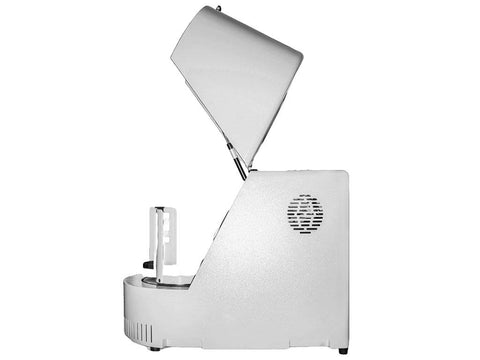

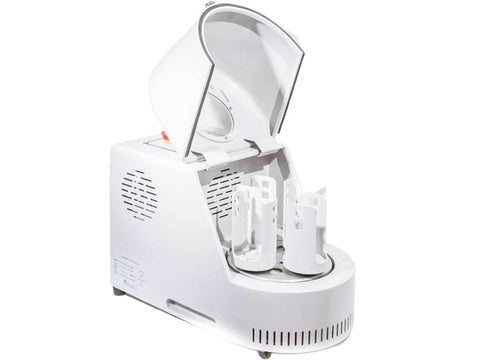

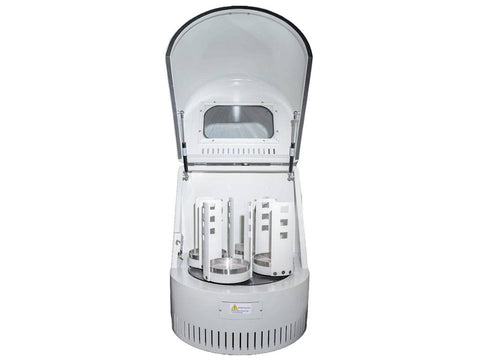

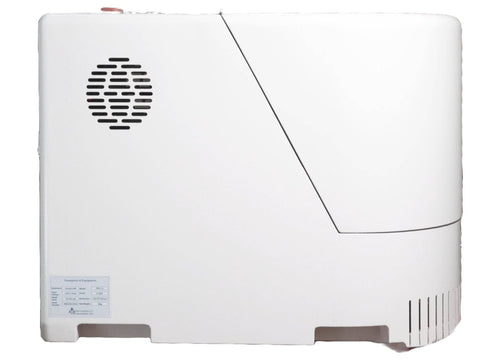

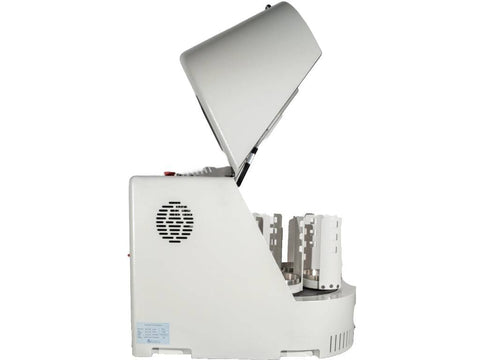

Product image is for reference only.
| Model Number | Total Volume (L) |
Maximum Rotation Speed (RPM) |
Power (kW) | Material Capacity (L) | Outer Dimension (mm) |
| MA0101 | 0.4 | 870 | 0.25 | 0.12 | 530*300*320 |
| MA0103 | 1 | 670 | 0.75 | 0.35 | 530*300*320 |
| MA0104 | 2 | 670 | 0.75 | 0.65 | 730*430*580 |
| MA0105 | 4 | 670 | 0.75 | 1.3 | 800*470*560 |
| MA0115 | 6 | 670 | 0.75 | 2 | 800*470*560 |
| MA0122 | 8 | 580 | 1.5 | 2.5 | 880*600*640 |
| MA0121 | 10 | 580 | 1.5 | 3 | 880*600*640 |
| MA0123 | 12 | 580 | 1.5 | 4 | 880*600*640 |
| MA0124 | 16 | 510 | 3 | 5 | 950*600*680 |
| MA0108 | 20 | 430 | 4 | 6 | 1200*760*750 |
| MA0125 | 40 | 390 | 5.5 | 13 | 1300*870*830 |
| MA0126 | 60 | 360 | 7.5 | 20 | 1500*950*1000 |
| MA0117 | 100 | 240 | 11 | 35 | 1750*1100*1350 |
