Accuris QuadCount Automated Cell Counter
SKU: E7500

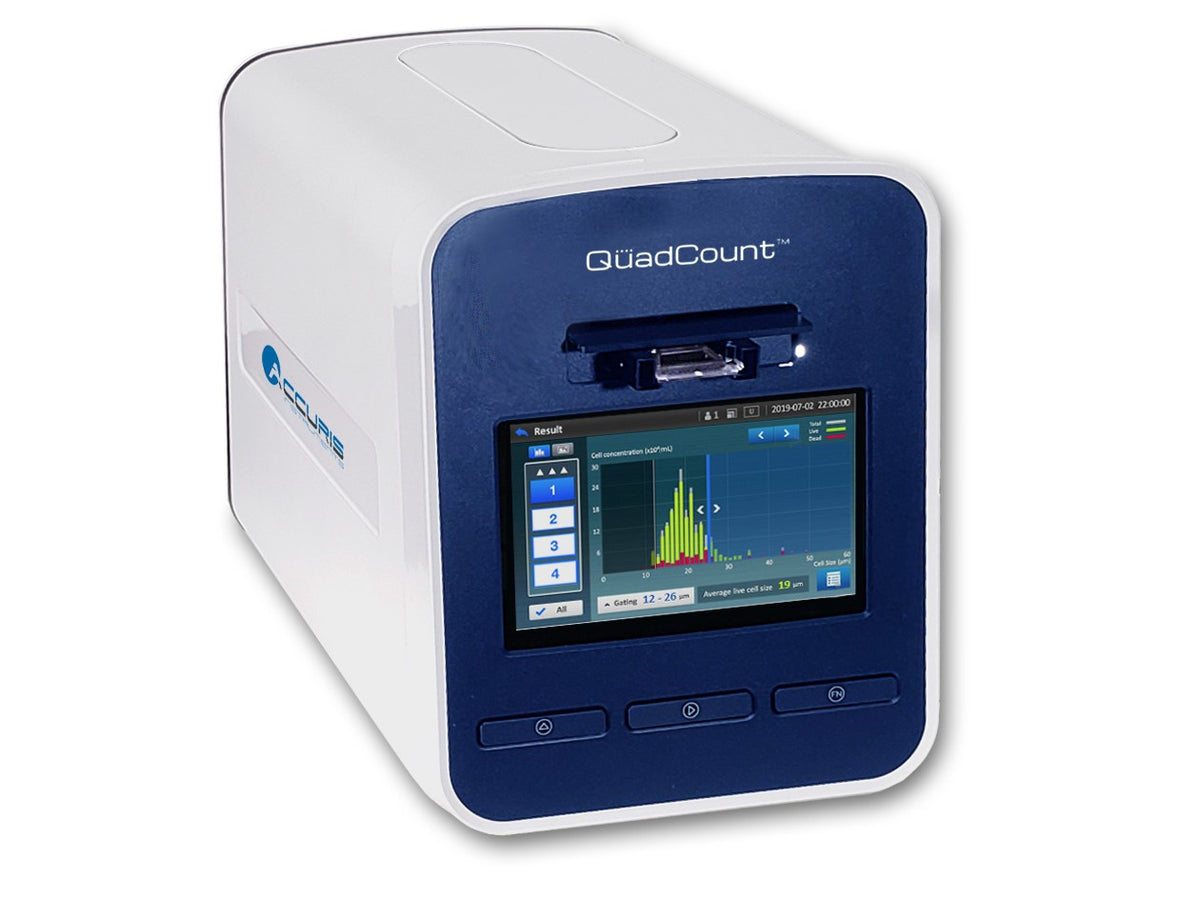

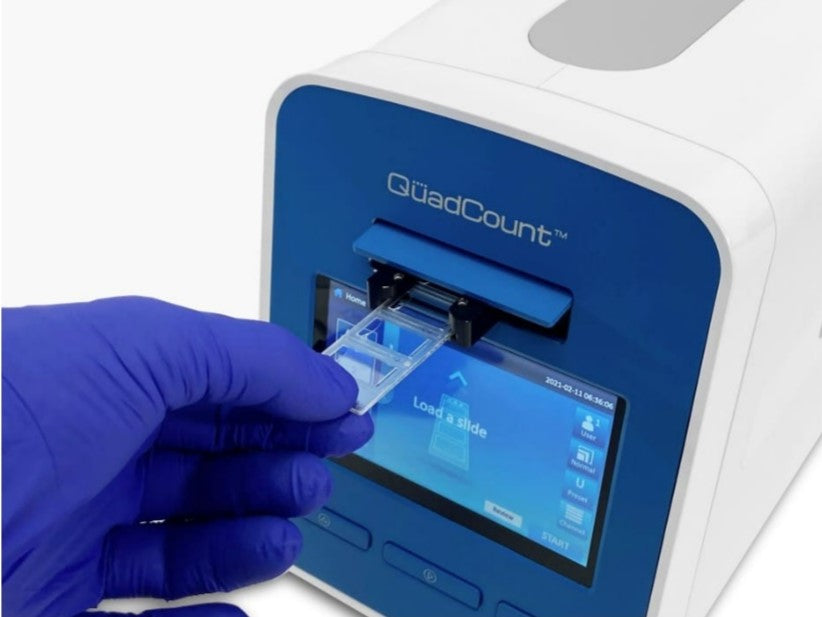

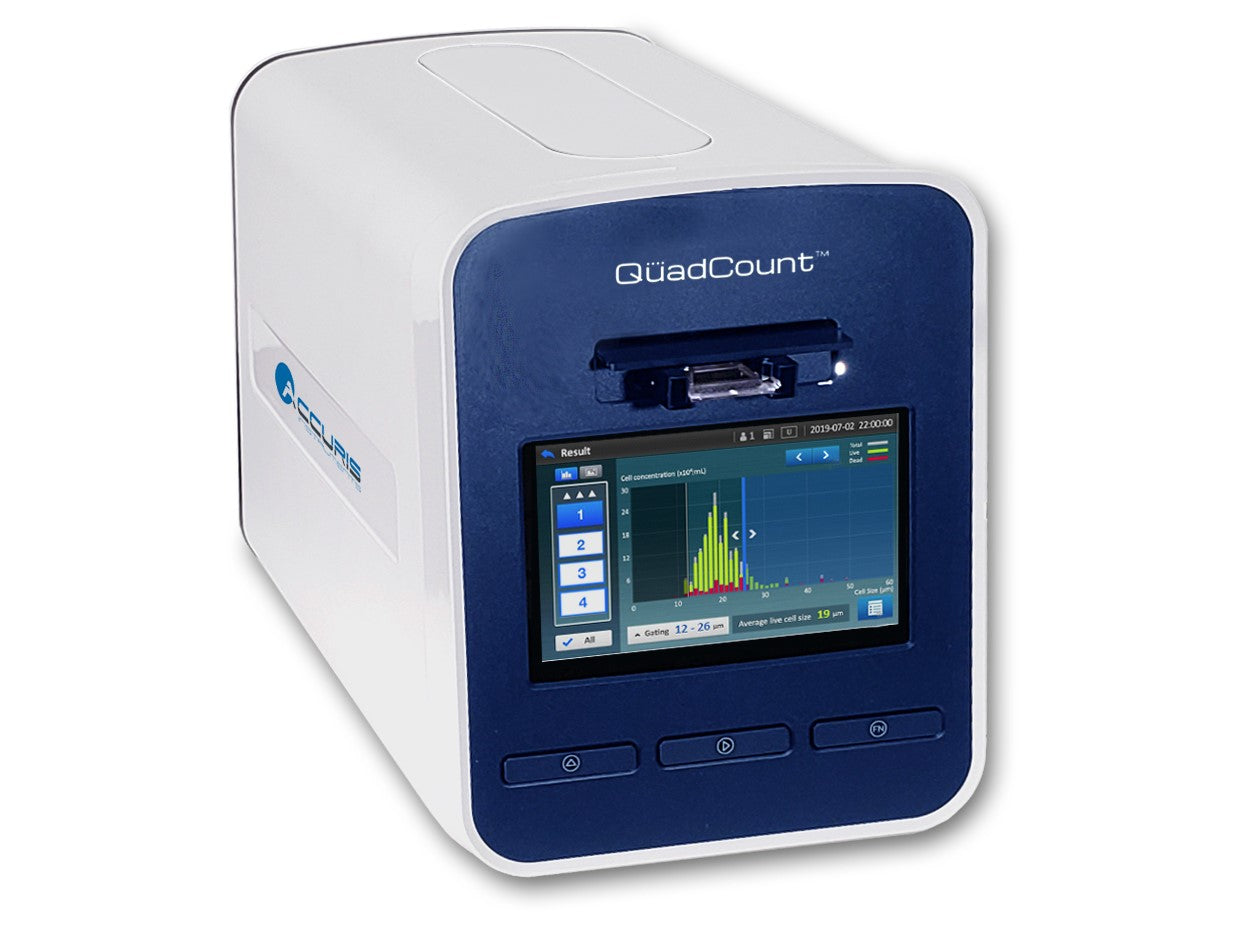

Accuris QuadCount™ Automated Cell Counter
The Accuris QuadCount™ improves on the simple technique of brightfield microscopy by utilizing an LED light source to automate cell counting. With count speeds at fast as 20 seconds per sample, the Accuris QuadCount provides many advantages over the tedious and time consuming manual hemocytometry method. The advanced software eliminates human bias in dead/live determinations, reduces counting errors, saves time, and improves efficiency.
Purchase 4-chambered QuadSlides in Packs of 50!
- Fast, accurate and reproducible results
- Intuitive software and touch-screen interface
- Convenient and cost-effective QuadSlides™
- Count sample volumes up to 3.6uL
- Compatible with most common mammalian cell lines (click for detail)
3 Count Modes Available to analyze different sample volumes.
- Quick Mode: 0.15uL / 20 seconds (1 image frame)
- Normal Mode: 0.9 uL / 30 seconds (6 image frames)
- Precise Mode: 3.6 uL/ 100 seconds (24 image frames)
Sample QuadCount Report from Dartmouth Medical Labs
Compatibility report for 16 mammalian cell lines (HeLa, Jurkat T, HCT116, etc)
Specifications
| SKU # | E7500 (115V) or E7500-E (230V) |
| Optics | High Quality 4x Objective Lens |
| Pixel Resolution | 2592 x 1944 |
| Illumination | Green LED (50,000 hour life) |
| Sample Volume | 20uL (4 samples per QuadSlide) |
| Max. Counting Volume | 3.6uL (24 image captures) |
| Consumable Slide | QuadSlide, 4-chamber |
| Counting Modes/Speeds | Quick (20 sec), Normal (30 sec), Precise (100 sec) |
| Dynamic Range | 1 x 104 to 1 x 107 cells per mL |
| Cell Size Range | 5 to 60 um |
| Data Output | USB drive for PDF report |
| Dimensions | 6.4 x 11.5 x 8.5 inches |
| Weight | 11 Lbs |
| Power Supply | 115V (E7500) or 230V (E7500-E), 50-60Hz |
For Research Use Only (RUO). Not for use in diagnostic procedures.
MSE supplies is an authorized distributor of Accuris products and accessories.
