Ampcera<sup>TM</sup> Argyrodite Li<sub>6</sub>PS<sub>5</sub>Cl Sulfide Solid Electrolyte, Pass 325 mesh (D50 ~ 1 um) Ultra Fine Powder, MSE Supplies

Ampcera® Argyrodite Li5.5PS4.5Cl1.5 Sulfide Solid Electrolyte, Ultra Fine Powder (D50 1~3 um), 10g

SKU: PO0209

  • $ 62500
  • Save $ 15000

Ampcera® Sulfide Solid Electrolyte Argyrodite Type Li5.5PS4.5Cl1.5 Ultra Fine Powder, D50 1~3 um,10g

If you need more than 200 grams, please contact Ampcera Inc. (info@ampcera.com) directly for bulk pricing.

Manufacturer: Ampcera Inc.  (Ampcera Inside™)
Product Number: PO0209
Pack size: 10g
Nominal Composition: Li5.5PS4.5Cl1.5
Theoretical Density: 1.64 g/cm3
Material Type: Argyrodite, Li-argyrodite crystalline phase
Purity: Synthesized from >99.9% precursor materials
Product Form: light yellow color powder

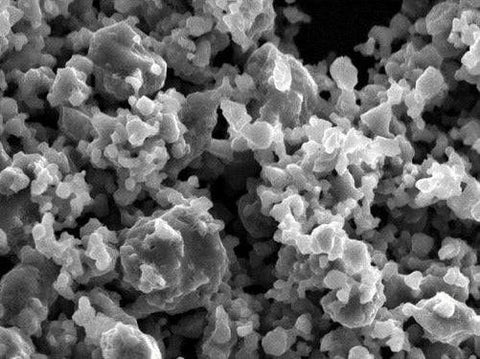

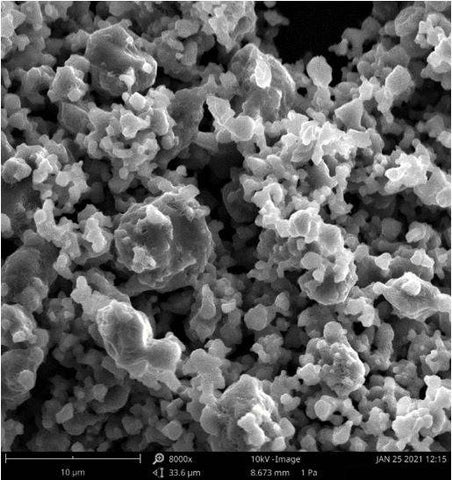

Particle Size: D50 1~3 µm. This ultra fine powder can be directly used to make composite solid electrolytes or to mix with cathode materials as solid state catholyte. The finer powder helps to improve the cathode-electrolyte interface contact, capacity and rate performance.
Ionic Conductivity: >1 x 10-3 S/cm (typical value 1~10 mS/cm) at room temperature, the ionic conductivity is slightly lower compared to the coarse powder due to the effect of more interfaces among the ultra fine particles.
Electronic Conductivity: ~10-8 S/cm at  R.T. 25°C
Wide electrochemical stability window: from 0 to 7 V vs. Lithium
Applications: Solid state electrolyte material for all solid state lithium ion batteries. Cathode electrolyte (catholyte).
Storage and Cautions: Water sensitive. Store and operate in a dry environment.

* All the solid state electrolyte materials sold by MSE Supplies are under the trademark of Ampcera.

Shipping and handling: This material is classified as a hazmat and requires special packaging and shipping to comply with  regulatory requirements. Please contact us for specific details with shipping and handling.
